Wacker Neuson G 2.1A User Manual

5A-21
50 HZ PORTABLE GENERATORS G3.3A/G4.6A/GS4.6A/GS5.7A 5A

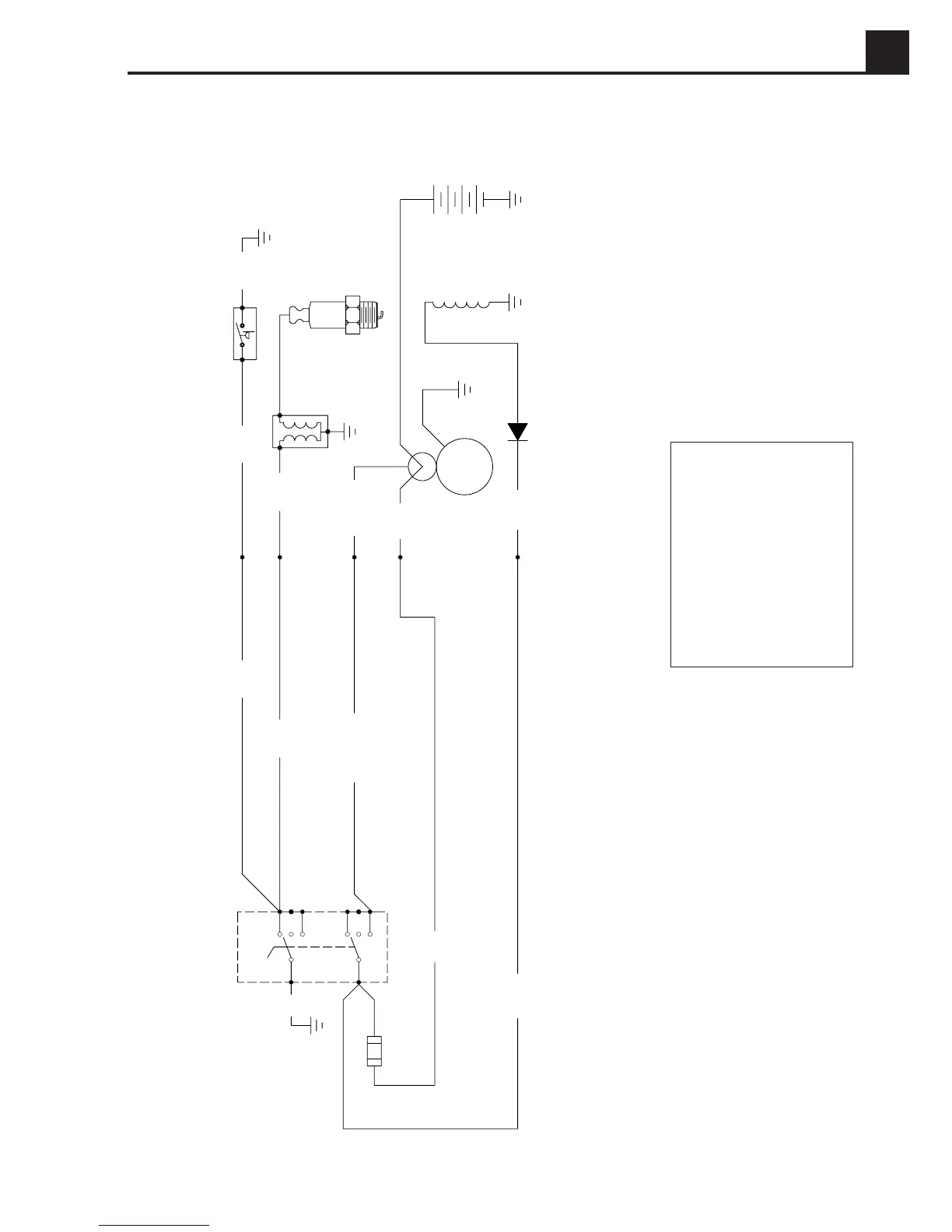

Engine Wiring Schematic (GS5.7A Models)
1021SD01
1
2
3
4
4
5
2 5
1
6
3
W
R
Y
B
L/W
B
Y
L/W
R
W
G
T
12
10
13
14
15
11
16
9
9 = Engine crank switch 10 = Oil level switch 11 = Coil 12 = Battery 13 = Charging coil 14 = Starter 15 = Starter solenoid 16 = 15 Amp fuse
Wire Colors B - Black G - Green L - Blue P - Pink R - Red LL-Light blue
W- White Y - Yellow Br - Brown Gr - Gray Or - Orange Pr - Purple T - Tan
