5A-20
5A G3.3A/G4.6A/GS4.6A/GS5.7A 50 HZ PORTABLE GENERATORS

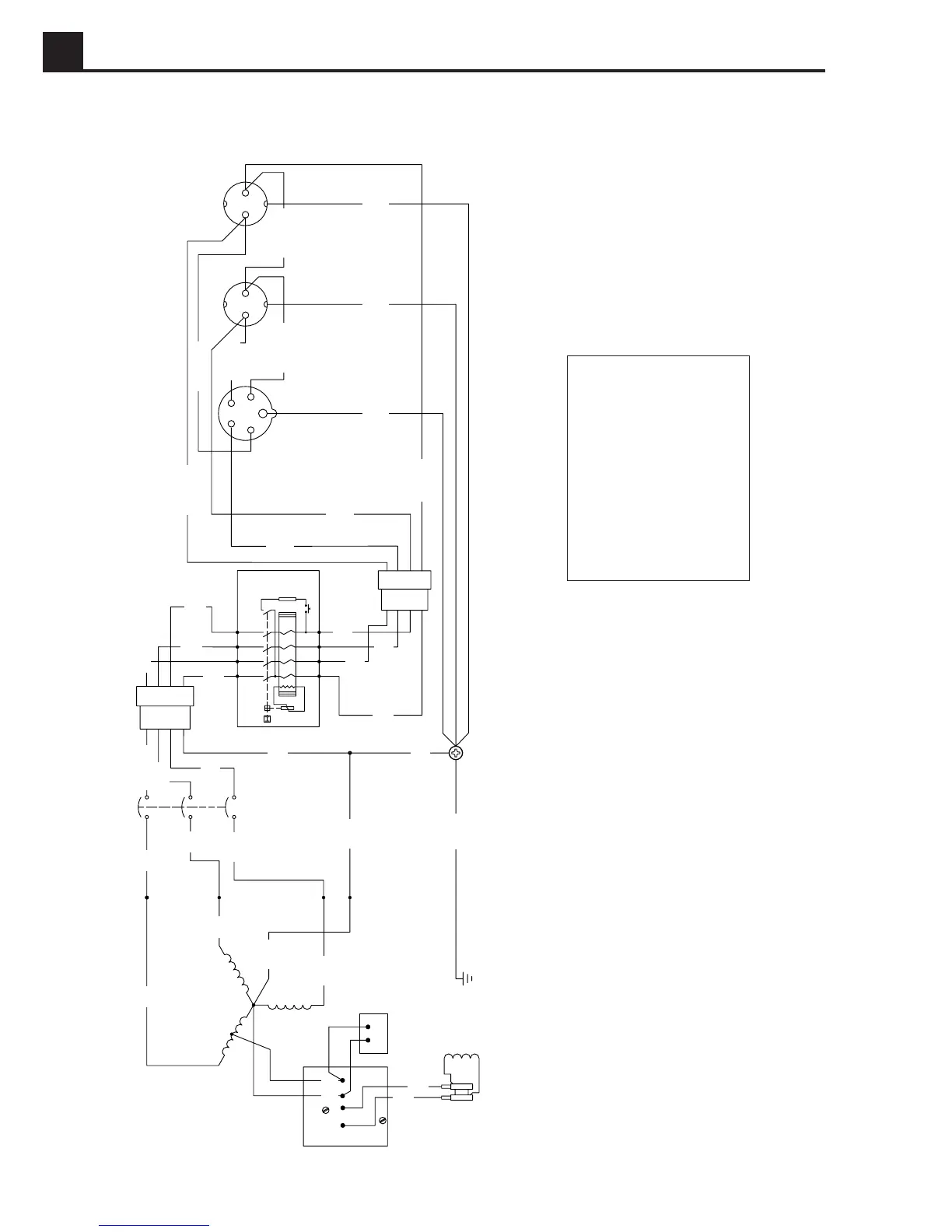

Generator Wiring Schematic (GS5.7A Models)
1021SD04
Wire Colors
B - Black
G - Green
L - Blue
P - Pink
R - Red
LL-Light blue
W- White
Y - Yellow
Br - Brown
Gr - Gray
Or - Orange
Pr - Purple
T - Tan
1 = Main stator winding
2 = Main circuit breaker
3 = Earth-leakage circuit breaker (GS5.7AE)
4 = 400 volt/16 Amp receptacle
5 = 230 volt/16 Amp receptacle
6 = Radio interference suppressor
7 = Automatic voltage regulator
8 = Rotor winding
1
4
3
2
F1
F2
F2
F1
N
W
V
1
3
Br
V
RU
4
6
LL
G/Y
G/Y
2
4
6T
N
1
N
35
R/W
V/W
Br/W
1
4
3
2
LL/W
LL/W
R/W
V/W
Br/W
LL/B
R/B
V/B
Br/B
LL/B
LL/Gr LL/R
Br/R
R/Gr
R/B
G/YG/YG/Y
Br/B
V/B
L2
L1
B
R
2
3
4
55
8
6
7
1
