GP Repair Operation
wc_tx000545gb.fm 31
3.9 Control Panel—GP 3800

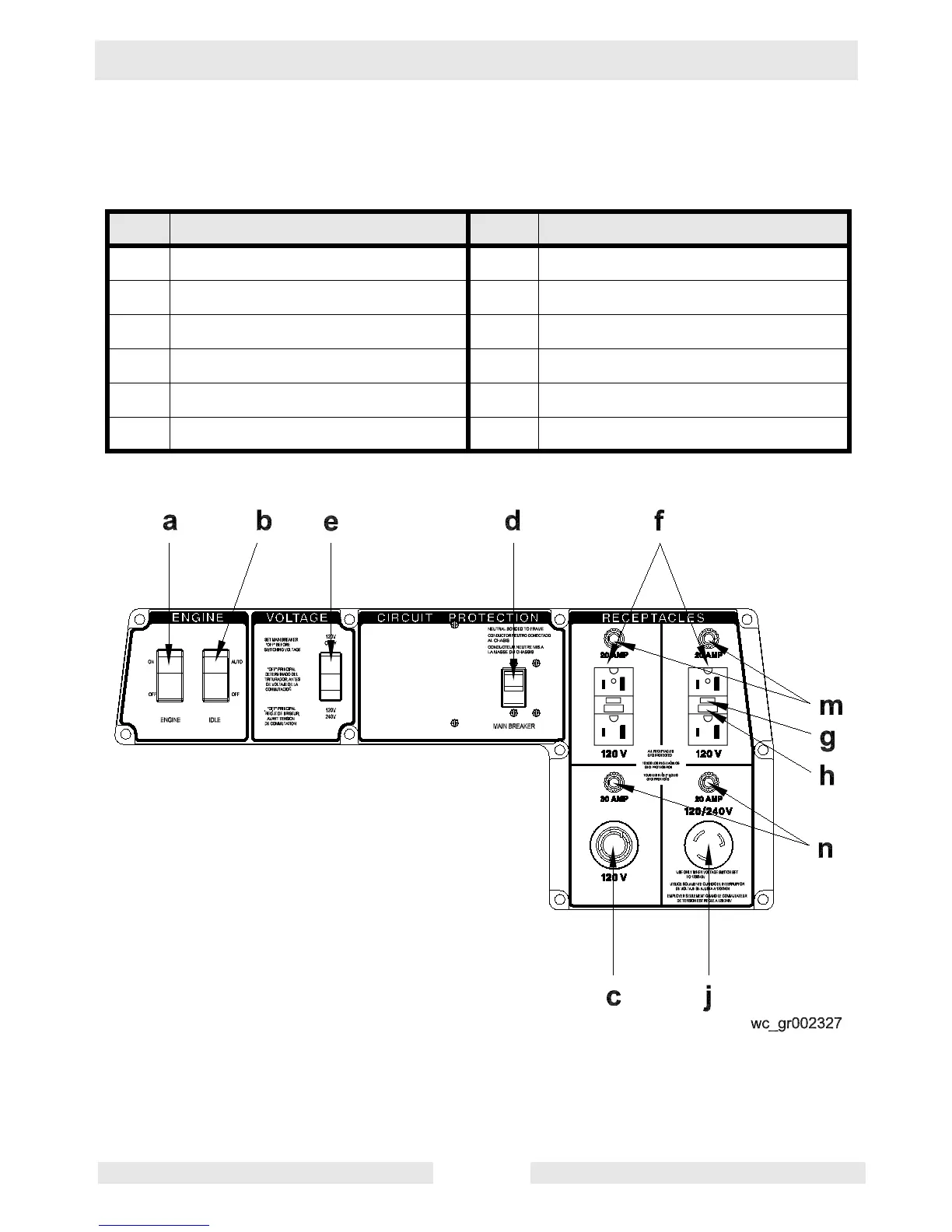

See Graphic: wc_gr002327
Ref. Description Ref. Description
a Engine switch g GFI test button
b Auto idle switch h GFI reset button
c Twist-lock receptacle—120V j Twist-lock receptacle—120/240V
d Main circuit breaker m 20A circuit breaker (CAN only)
e Voltage Selector Switch (VSS) n 30A circuit breaker (CAN only)
f GFI duplex receptacle—120V
