3.10 Control Panel—GP 5600/GP6600

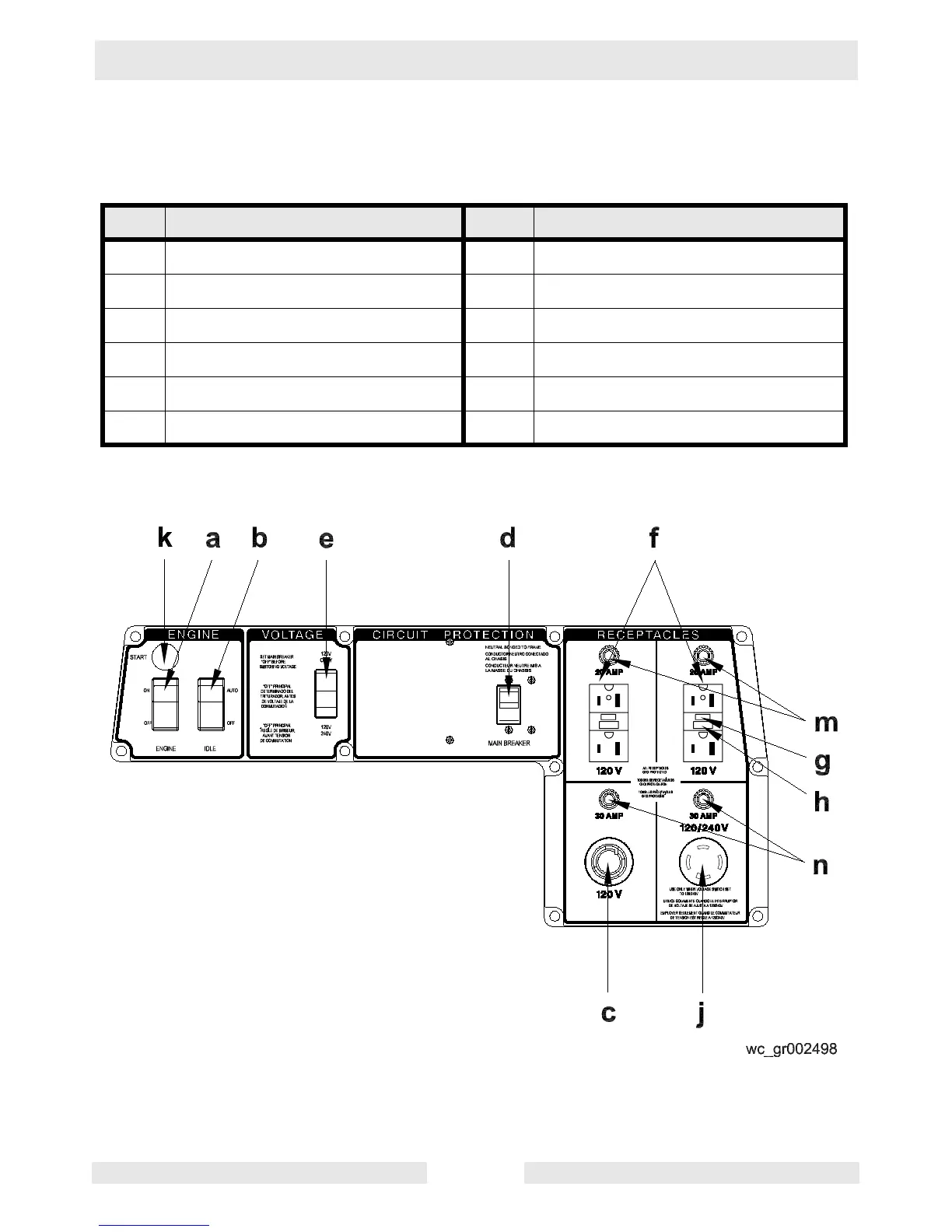

See Graphic: wc_gr002498
Ref. Description Ref. Description
a Engine Switch g GFI test button
b Auto Idle Switch h GFI reset button
c Twist-lock receptacle - 120V j Twist-lock receptacle - 120/240V
d Main Circuit Breaker k Ignition Switch (GPS only)
e Voltage Selector Switch m 20A circuit breaker (CAN only)
f GFI Duplex receptacle - 120V n 30A circuit breaker (CAN only)
