Wacker Neuson GPS 9700

Operation GPS 8500/GPS 9700
wc_tx001265gb.fm 12
2 Operation

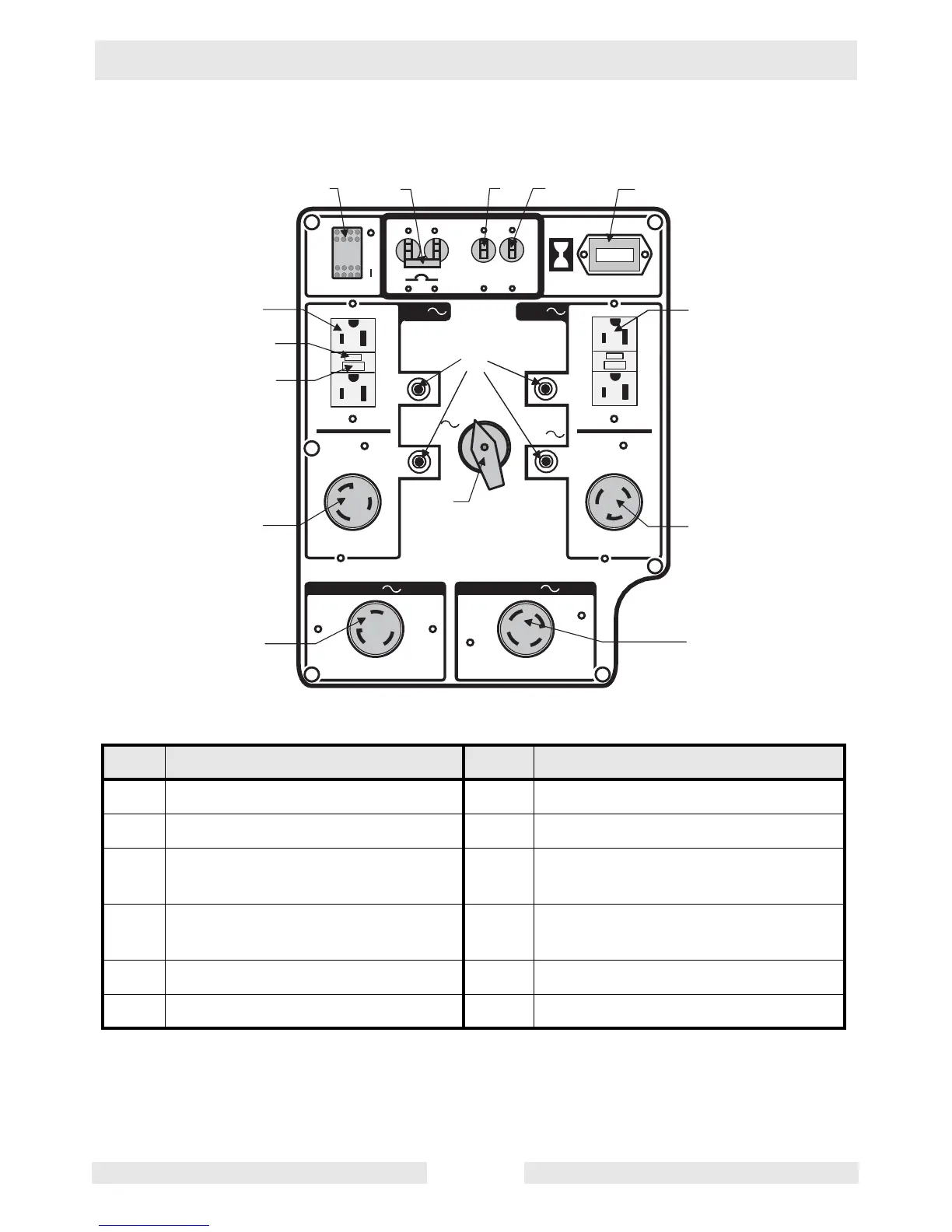

2.1 Control Panel
000000
IDLE
120
120
30 A
20 A
20 A
240
120/240
30 A
20 A 30 A
120
120/
240
a
b e
dc
f
f1
f2
j
m
k
n
h
g
f
Ref. Description Ref. Description
a Auto Idle Switch g Thermal Overload
b Main Circuit Breaker h Voltage Selector Switch
c 240V 20A Overcurrent Circuit
Breaker
j 120V 30A Twist-lock Receptacle
d 120/240V 30A Overcurrent Circuit
Breaker
k 120V 20A Twist-lock Receptacle
e Hour meter m 240V 20A Twist-lock Receptacle
f 120V GFI Duplex Receptacle n 120/240V Twist-lock Receptacle
