PS(A)2 800 / PSW3 1500 Maintenance
wc_tx001998gb.fm 29
5.5 Disassembly (PS / PSA)

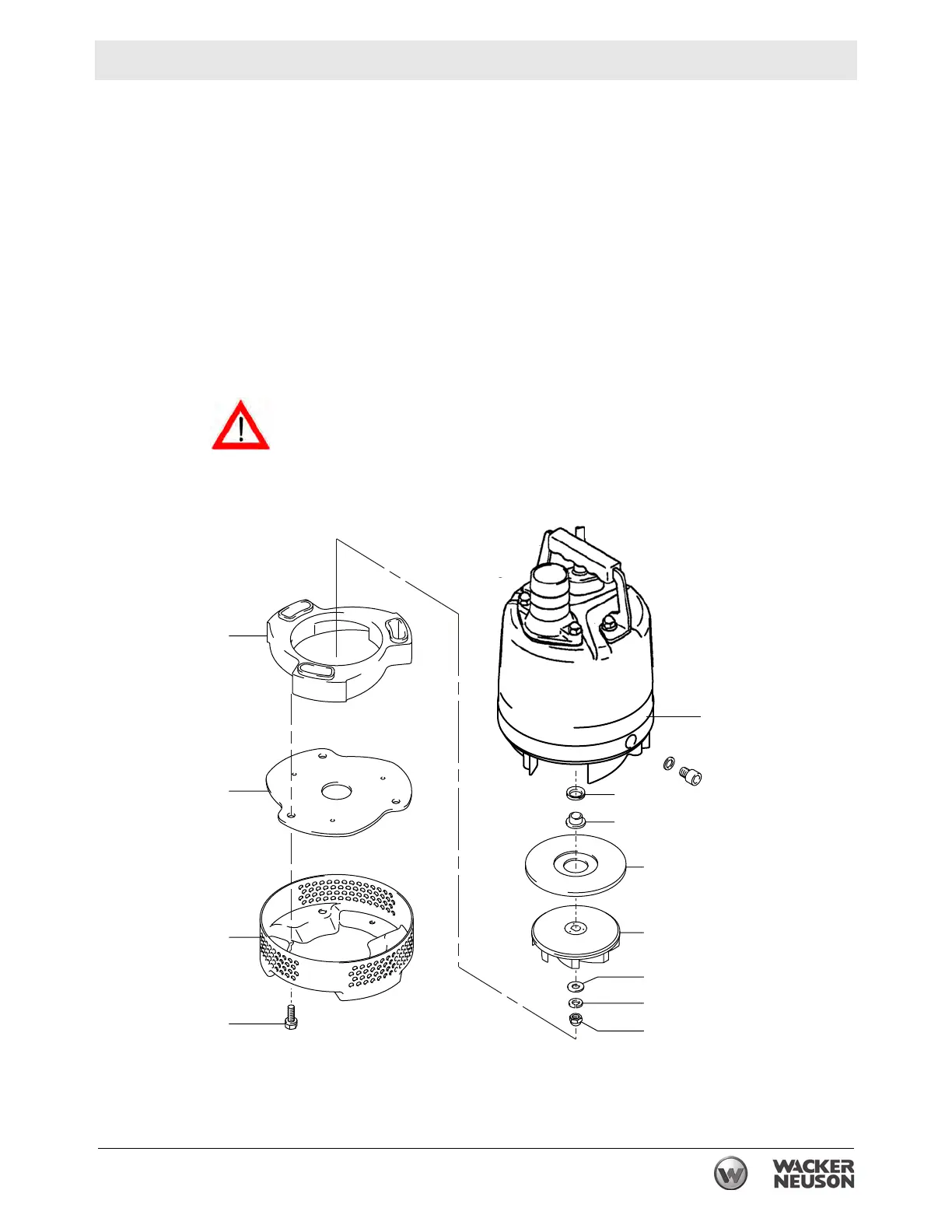

See Graphic: wc_gr005933
5.5.1 Removing the strainer, suction cover, and volute:
Remove the three bolts (1) under the strainer (2), then remove the
strainer, suction cover (3), and volute (4).
5.5.2 Removing the impeller:
With a box wrench or other tool, remove the acorn nut (6), lockwasher
(7) and washer (8), then remove the impeller (9), shaft sleeve (10) and
V-ring (11) from the shaft.
5.5.3 Remove the wear plate (12) from the oil casing (13).
A worn impeller may have sharp edges that can cause injury, and
should be handled with care.
Note: The exploded view shown is for model PS2 800. Other models
may differ slightly in shape and structure.
WARNING
11
13
10
12
9
8
7
6
1
2
3
4
wc
_g
r005933
