Maintenance PS(A)2 800 / PSW3 1500
30 wc_tx001998gb.fm
5.6 Reassembly (PS / PSA)
See Graphic: wc_gr005933, wc_gr001205

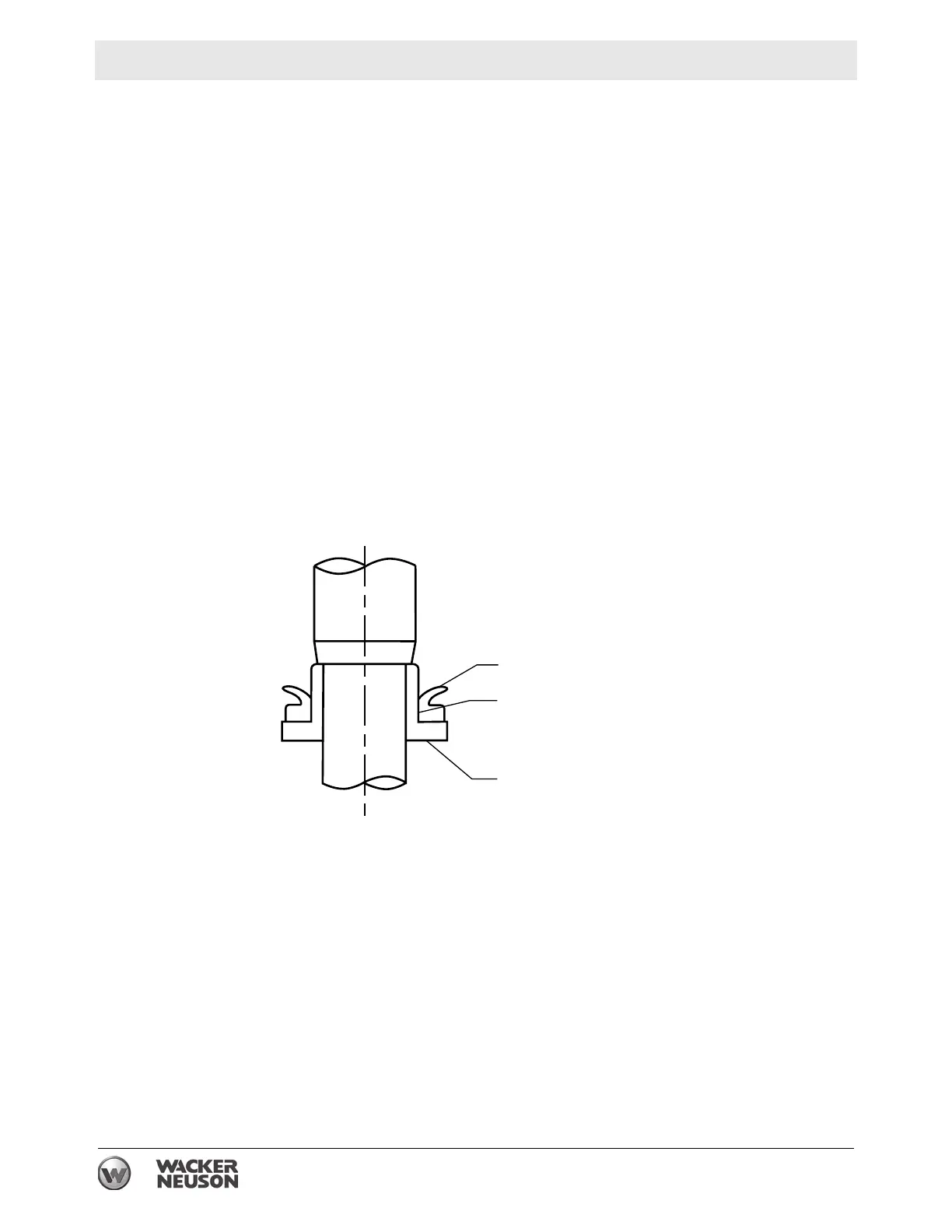

5.6.1 Mount the V-ring (11) onto the outside of the shaft sleeve (10) as
shown in the drawing. When doing so, do not apply oil or other
lubrication to the surface where the V-ring contacts the shaft sleeve
(a).
5.6.2 When replacing the wear plate (12), make sure the front and back are
oriented correctly. The raised portion should face the oil casing (13).
Press the wear plate firmly onto the surface.
5.6.3 Replace the V-ring and shaft sleeve as one piece.
5.6.4 Align the impeller keyway with the rotor shaft keyway and push the
impeller (9) onto the rotor shaft. Secure the impeller on the shaft with
the washer (8), lockwasher (7), and acorn nut (6). While keeping the
impeller and shaft from rotating, tighten the acorn nut.
5.6.5 Position volute (4) flush with oil housing. Assemble suction cover (3)
and strainer (2) and secure the assembly with the three bolts (1).
11
10
a
wc
gr001205
