5.7 Disassembly (PSW)

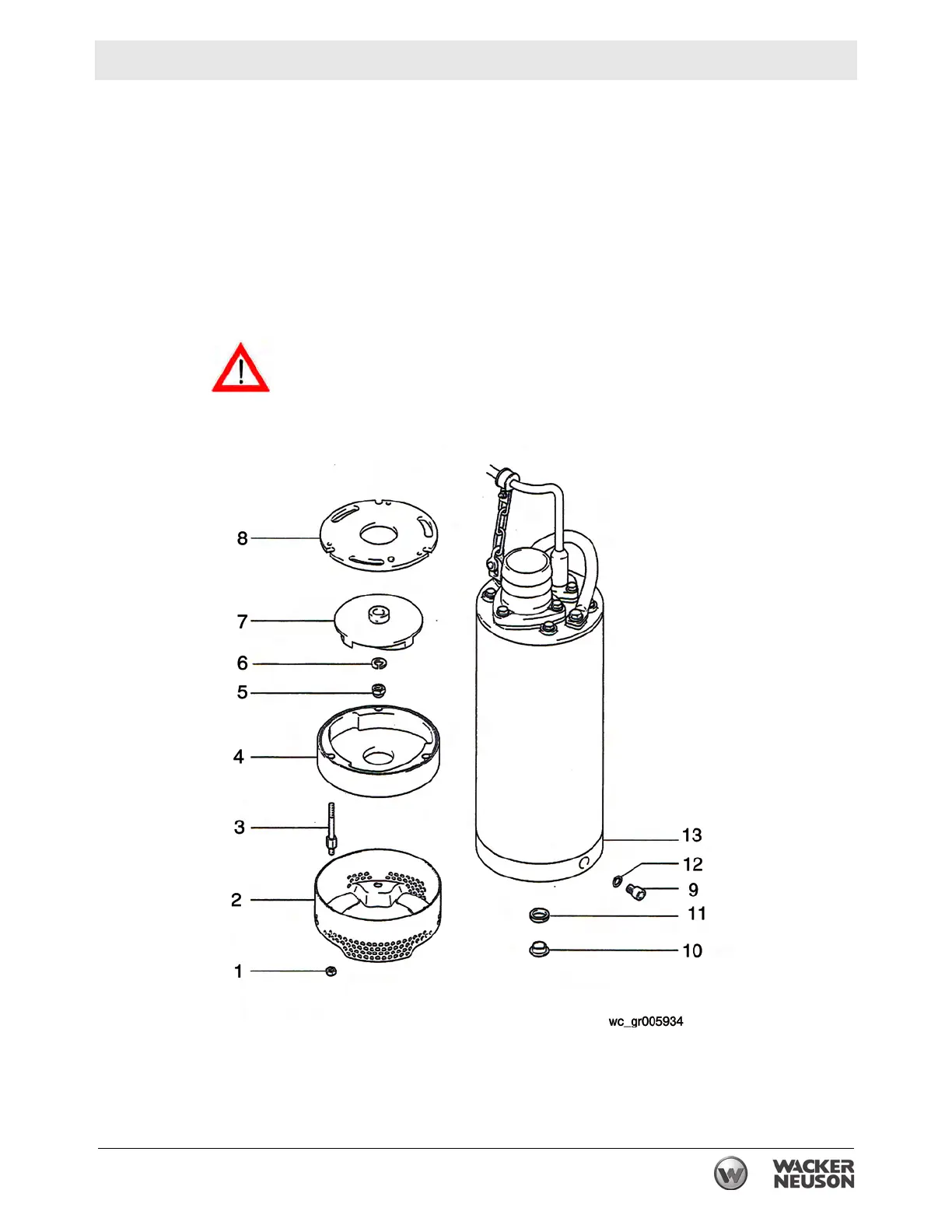

See Graphic: wc_gr005934
5.7.1 Removing the strainer stand and volute:
Remove the three hex nuts (1) under the strainer stand (2), then
remove the strainer stand, stud bolts (3), and volute (4).
5.7.2 Removing the impeller:
With a box wrench or other tool, remove the acorn nut (5) and
lockwasher (6), then remove the impeller (7), wear ring (8) shaft sleeve
(10), and V-ring (11) from the shaft.
A worn impeller may have sharp edges that can cause injury and
should be handled with care.
