VPR 1330 Maintenance
wc_tx000107gb.fm 21
5.3 Drive Belt

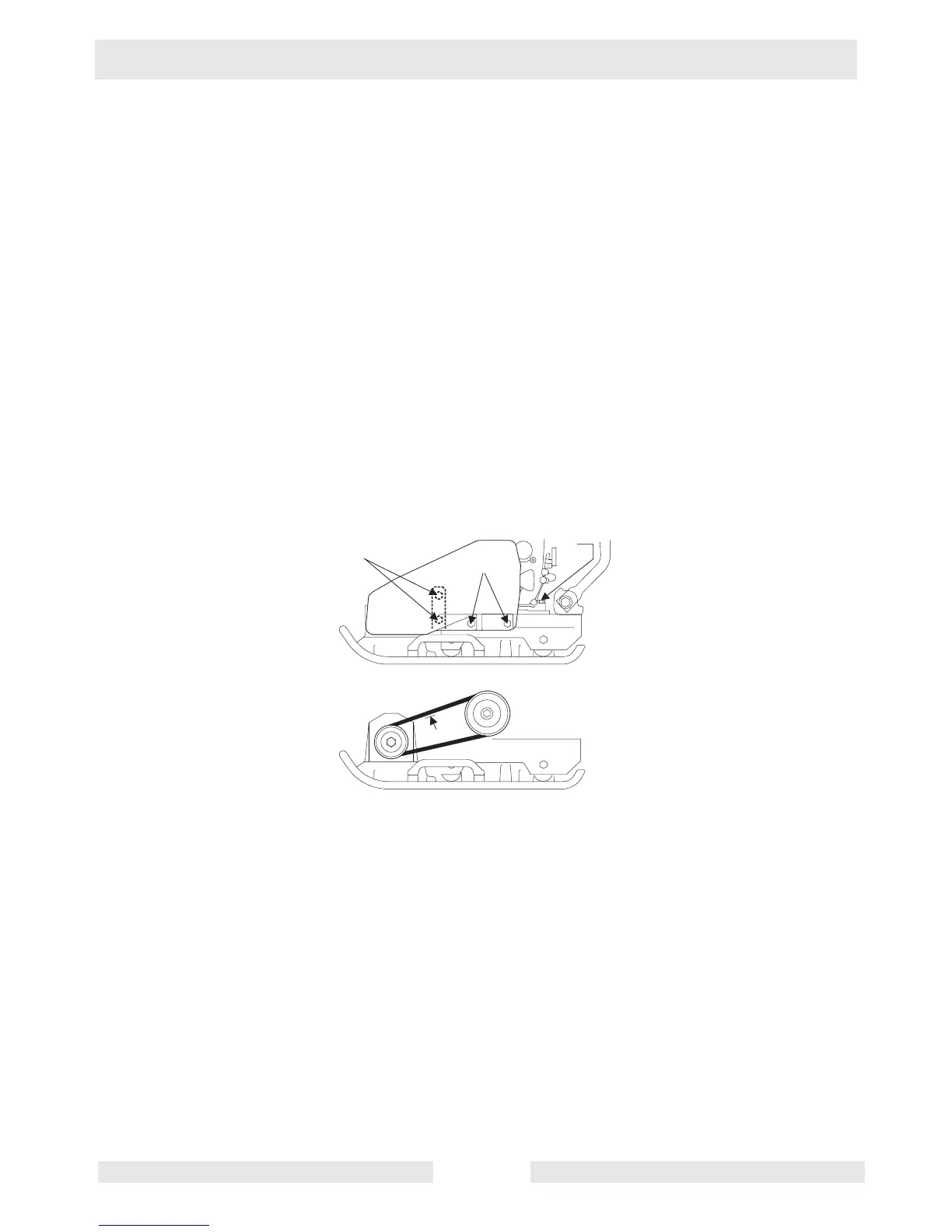

See Graphic: wc_gr000185
On new machines or after installing a new belt, check belt tension after
first 20 hours of operation. Check and adjust belt every 50 hours
thereafter.
To adjust belt:
5.3.1 Remove the two screws (b) at the bottom of the guard and the two nuts
(a) located behind the guard.
5.3.2 Remove belt guard.
5.3.3 Loosen the four bolts (c) which hold the engine to the plate.
5.3.4 Slide engine back toward the handle to tighten belt, forward to loosen
belt.
5.3.5 Adjust belt so that it deflects 10-13 mm (3/8"-1/2") (d) when pressed
midway between belt pulleys.
w c _ g r 0 0 0 1 8 5
a
c
d
b
