5.4 Exciter Lubrication

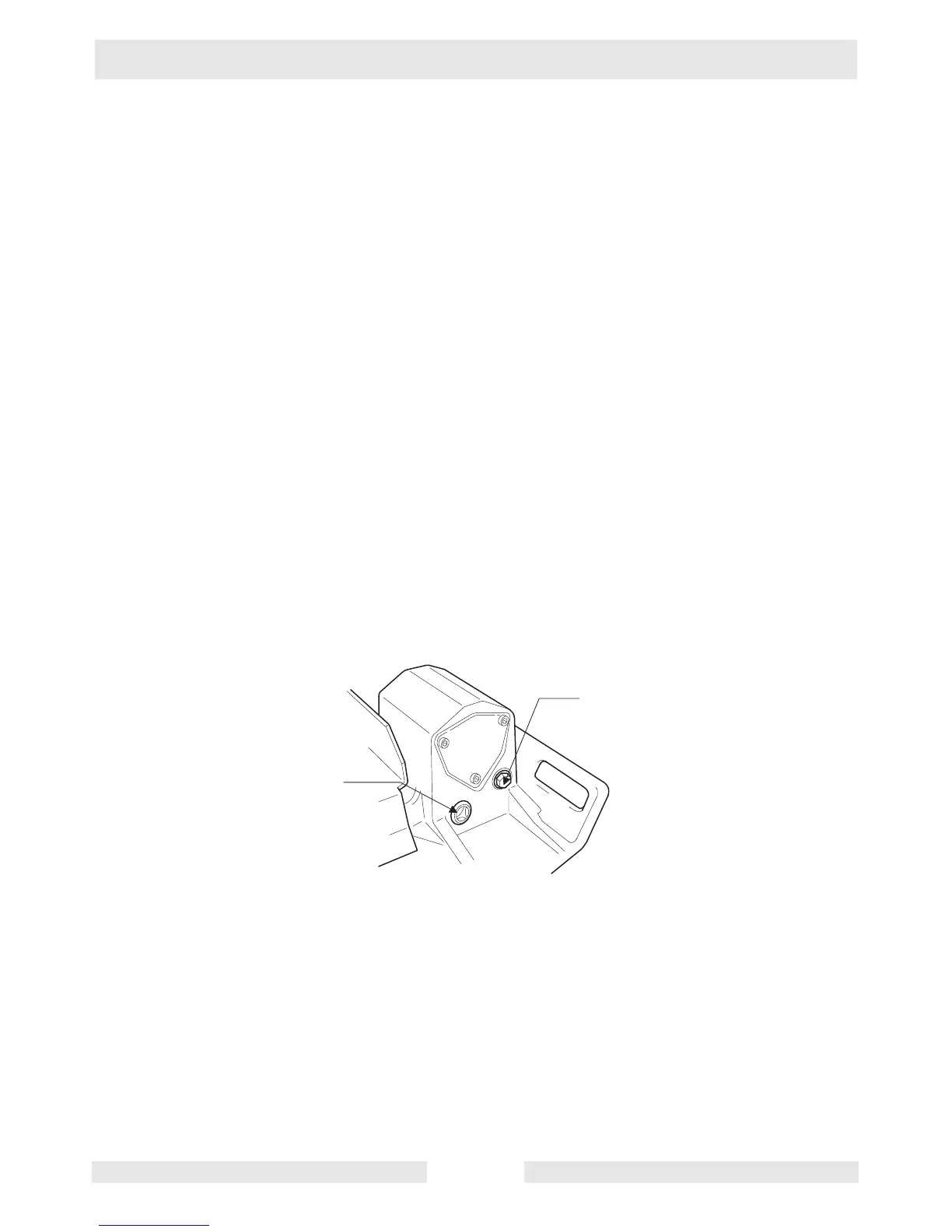

See Graphic: wc_gr000184
The bearings in the exciter assembly are splash lubricated and rotate
at very high speed. It is important to maintain the exciter oil at the
correct level and change it regularly.
Check oil level in exciter each day, before running plate.
5.4.1 To check the oil level, place the plate on a flat, level surface.
5.4.2 Oil level should appear near center of sight glass (a).
5.4.3 Add oil as required.
Change exciter oil every 300 hours of operation.
5.4.1 To drain oil, remove plug (b) from end of exciter and tilt plate up.
Note: In the interests of environmental protection, place a plastic sheet
and a container under the machine to collect any liquid which drains
off. Dispose of this liquid in accordance with environmental protection
legislation.
5.4.2 Place the plate on a level surface and add approximately 800 ml (27
oz.) of oil through plug opening until oil appears near the center of the
sight glass (a).
CAUTION: DO NOT overfill. Too much oil in exciter can reduce
performance and damage drive belt.
