Pure Line Inverters by Wagan Tech
®
9
www.wagan.com

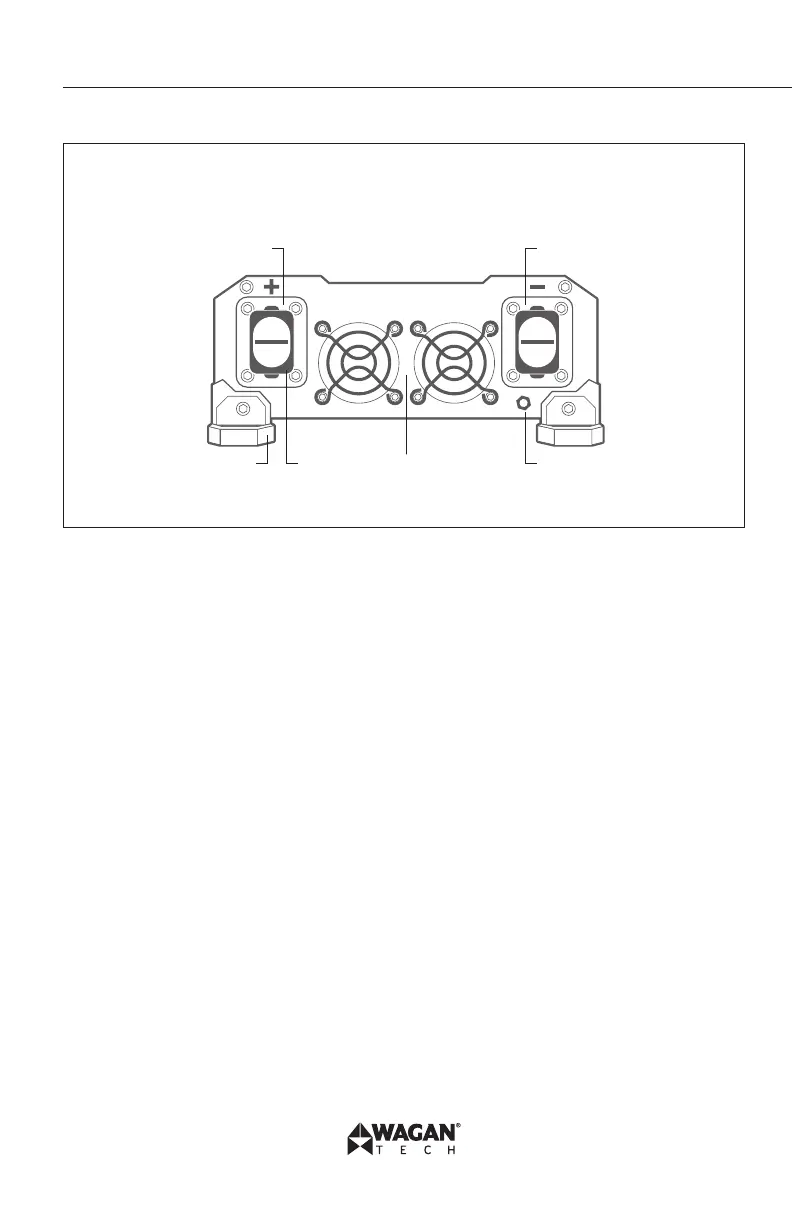

REAR PANEL
Mounting
Points
Positive (+) DC
Input Terminal
Negative (–) DC
Input Terminal
Terminal
Cover
High Speed
Cooling Fans
Ground Terminal
All models
• Positive Terminal — Positive (+) DC Input (Red)
• Negative Terminal — Negative (−) DC Input (Black)
• Cooling Fans — High-speed and load controlled
• Ground Terminal — For attaching an insulated safety ground wire. This safety wire is
for protecting personnel if there is an unlikely failure in either the cabling or enclosure
insulation. Grounding the inverter enclosure ensures personnel safety should a DC cable
problem occur. During the installation procedure, the Ground Terminal is connected either
to a vehicle chassis or to the negative DC terminal of the battery. Do not directly connect
this ground connection to the negative DC terminal of the inverter. Use an insulated 10
gauge wire to make the ground connection. If the inverter installation is located in fixed
location, the safety wire can be connected to earth’s ground.
REMOTE ON/OFF CONTROL
Optional wired remote control sold separately. Item #AA5603. Visit wagan.com to order.
Insert wired remote plug into Remote Switch Connection port. Set ON/OFF switch to “remote”
position.
LOAD CONSIDERATIONS
The startup load of an appliance is a major factor of whether this inverter can power it. This
initial load is only momentary. With many appliances, it is approximately twice the continuous
load, but some appliance startup loads can be as high as eight times the continuous load.
The inverter will automatically shut down in the event of an output overload so there is no danger
of damaging either the inverter or the equipment. When the red LED indicator is lit, the inverter is
signaling a fault.
