English
© Wagner Spray Tech - All Rights Reserved 13
Cleanup (continued)

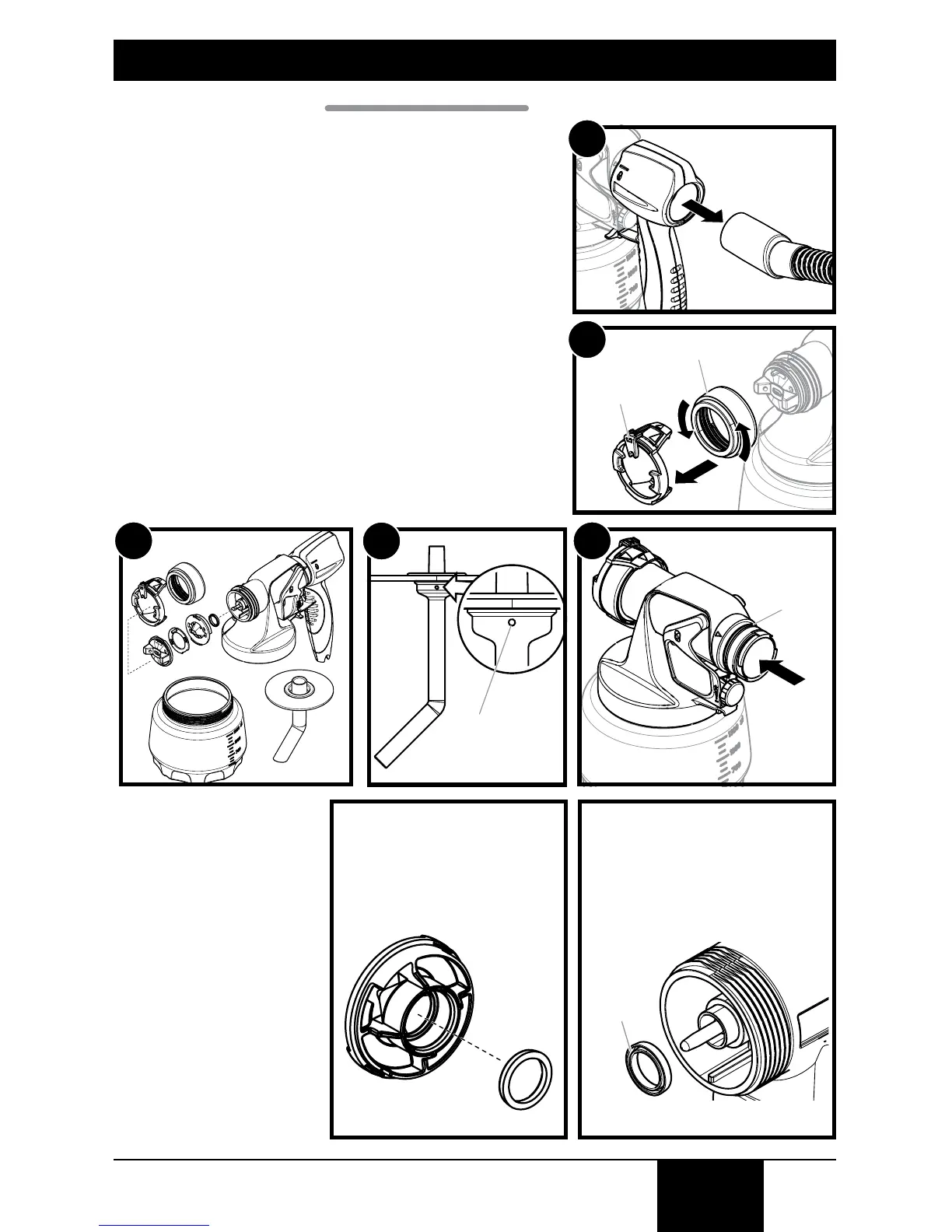

Cleaning the Gun
To Clean the Spray Gun:
1. Make sure power cord is unplugged. Remove the air
hose from the rear of the spray gun handle.
2. Remove the adjustment ring (a) carefully from the
connecting nut (b). Loosen the connecting nut.
3. Remove the parts as shown*. Clean all parts with a
cleaning brush and the appropriate cleaning solution.
4. Clean the air vent (c) on the suction tube with a soft
bristled cleaning brush.
5. Push the tab below the trigger, twist and separate the
spray gun from the handle. Wipe the outside of the
material container and the spray gun with a damp cloth
until clean.
Clean the rear of the nozzle (d) with the appropriate
cleaning solution. Use a thin layer of petroleum jelly to
lubricate the O-ring (e).
To reassemble, see the instructions on the next page**.
3
4
5
* Nozzle seal
The nozzle seal may become
stuck inside the spray nozzle
when the nozzle is removed. If
this occurs, make sure to pull
it out.
** It is important that the nozzle
seal inside the nozzle be re-
installed properly. Make sure the
cup side of the seal (the side with
the groove) is facing out towards
the front of the nozzle. Improper
installation will cause leakage.
