WAGNER 0529017 User Manual

English
© Wagner Spray Tech - All Rights Reserved 9

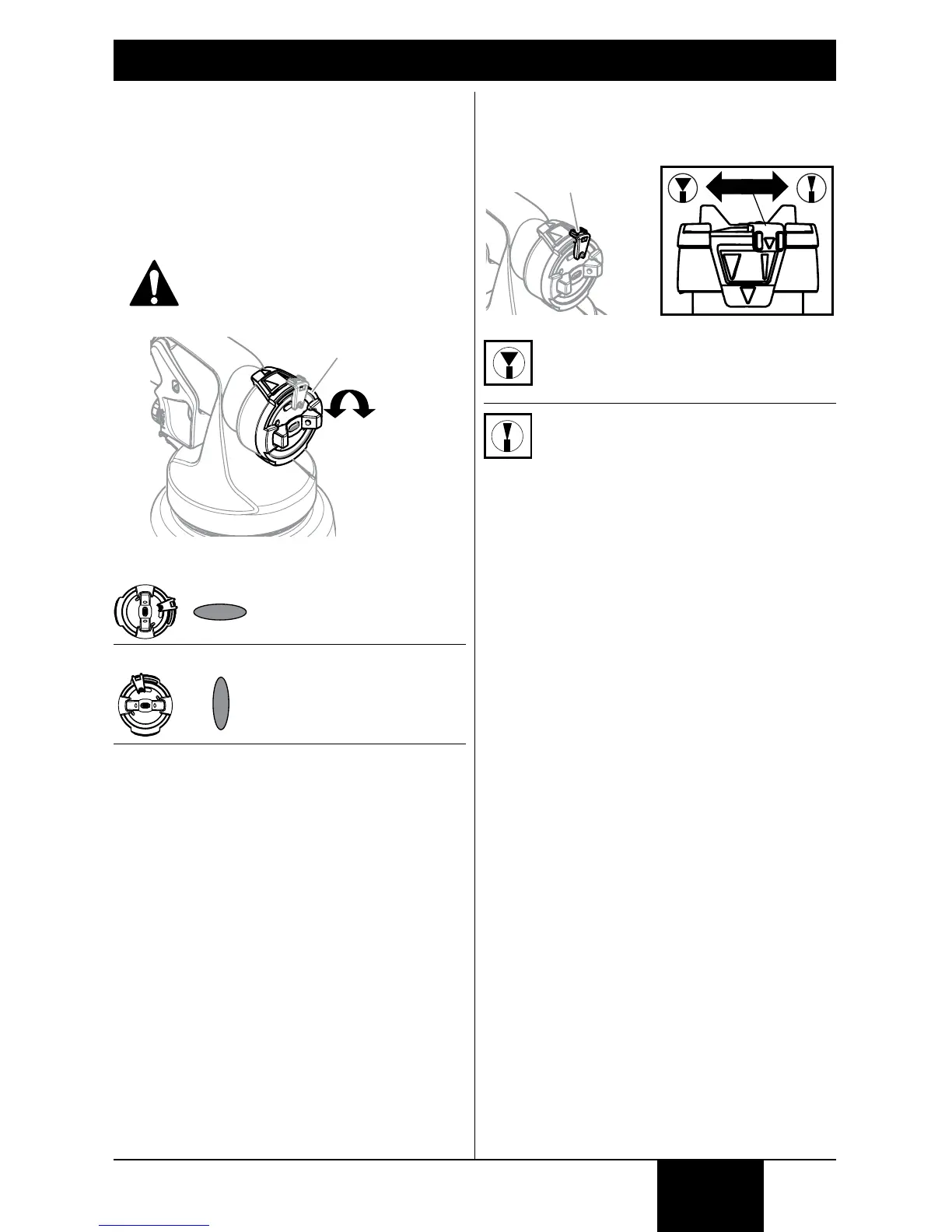

Spray Pattern Adjustment
Adjust Spray Shape
The spray pattern shape is adjusted by turning the
adjustment ring to either the vertical or horizontal
positions. The positions of the air cap and the
corresponding spray pattern shapes are illustrated
below.
Test each pattern and use whichever pattern is
suitable for your application.
NEVER trigger the gun while
adjusting the ears on the air cap.
NEVER point the spray gun at any
part of the body.
Adjustment ring
Horizontal pattern
=
=
=

Use ‘up and down’
spraying motion
Vertical pattern
=
=
=

Use ‘side to side’
spraying motion
Adjust Spray Width
The spray width lever on the spray gun determines
the width of the spray pattern.
Spray width lever
Wide
pattern

For coating large surfaces

Use higher air power

Use higher material ow
Narrow
pattern

For coating smaller areas,
corners and edges

Use lower air power

Use lower material ow
