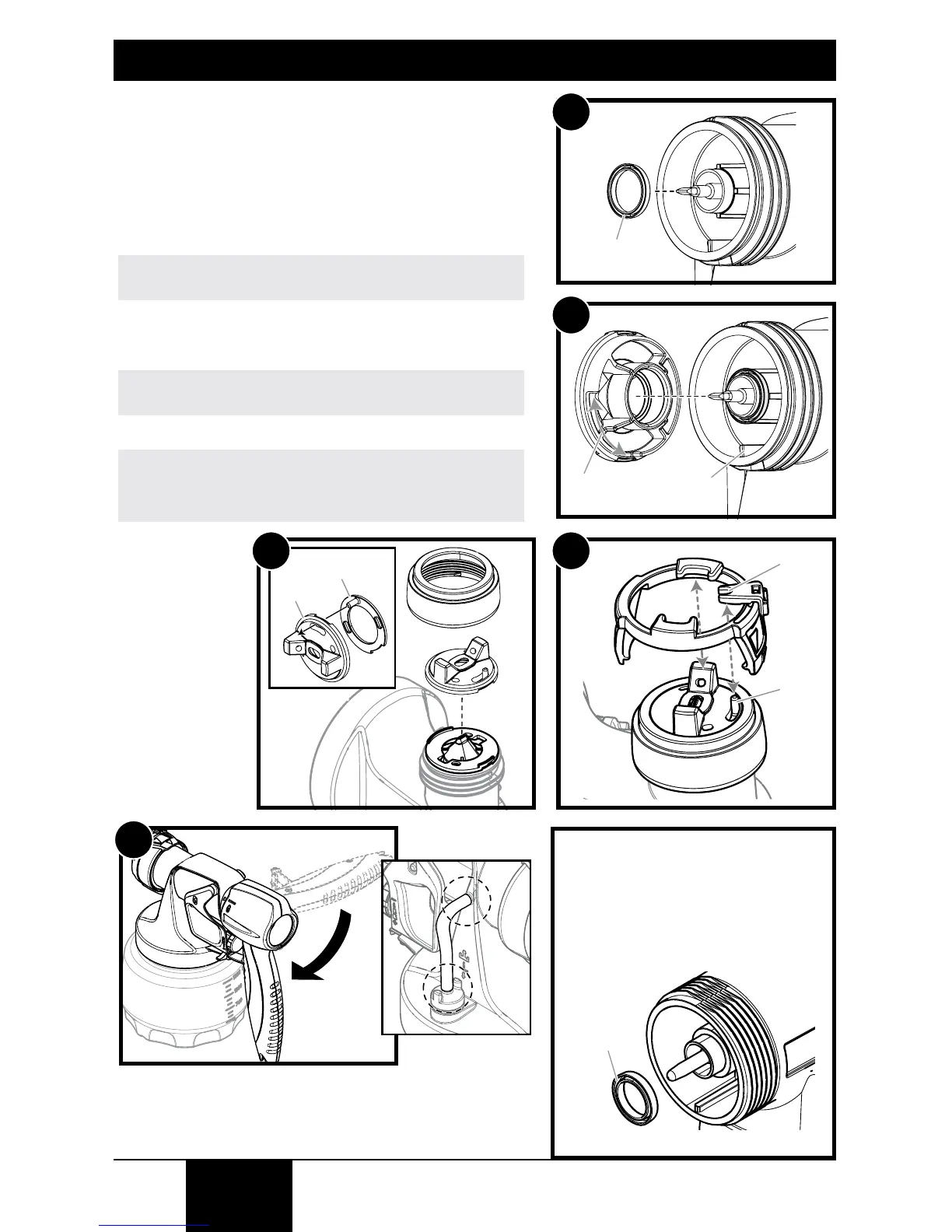

Reassembly
To Reassemble:
1. Install the nozzle seal* (1) with the groove (a) (slot) facing
toward the nozzle (away from the front end assembly).
2. Insert the nozzle (2). Make sure to align the groove (b)
and notch (c) and align the nozzle opening with the
needle.
3. Put the air screen (d) in the air cap (e). Put both
(3)
on the
nozzle
(2)
and secure with the connecting nut
(4)
.
Note: This step is easier if the spray gun is facing up.
4. Snap the adjustment ring
(5)
into the connecting nut
(4)
,
enabling the adjustment lever (f) on the peg (g) to be
positioned in the air cap.
Note: Make sure that the two recesses on the adjustment
ring are engaged in the air cap tabs.
5. Reassemble the spray gun.
Note: Make sure the air valve tube is free of paint. If not,
clean the air valve tube by following the instructions on
the next page. If clean, make sure it is attached securely at
both ends (see inset).
5
2
1
* Nozzle seal - DO NOT LOSE
It is important that the nozzle seal
inside the nozzle be re-installed
properly. Make sure the cup side of the
seal (the side with the groove) is facing
out towards the front of the nozzle.
Improper installation will cause leakage.
