Assembly (continued)

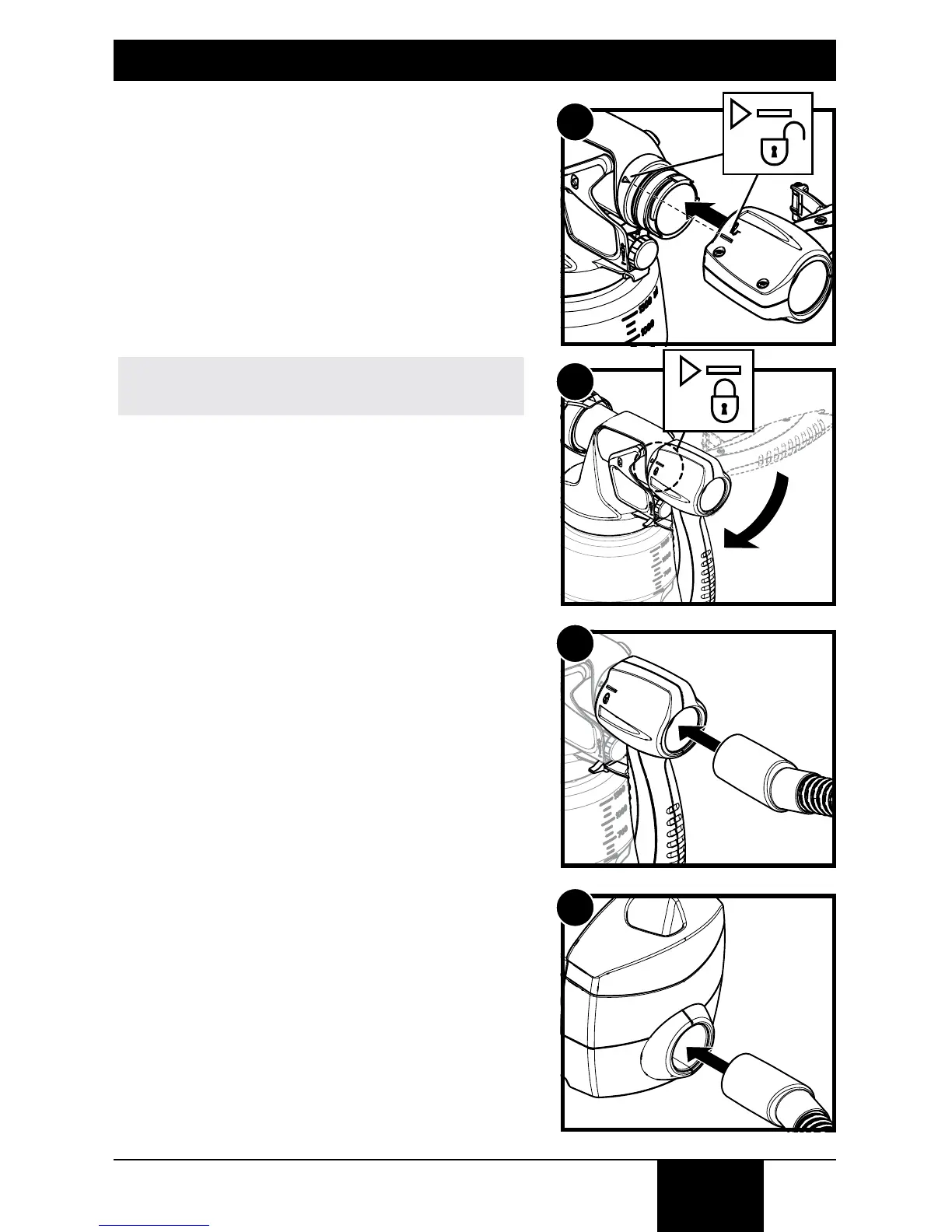

4. Align the arrow on the spray gun with the “unlock”
symbol on the spray gun handle.
5. Insert and twist the spray gun into the handle toward the
“lock” symbol on the spray gun handle.
The tab below the trigger will lock the two pieces into
place.
6. Insert the air hose tightly into the connection on the
spray handle. The connection can be positioned as
desired.
7. Insert the air hose tightly into the connection into the
turbine. The connections can be positioned as desired.
IMPORTANT: If the unit has already been used, make
sure the nozzle seal is in place (see pages 13-14).
4
5
6
7
To Next Page
