ProSpra
y3.29•3.31
33
ProSpray 3.29
1
2
3
4
5

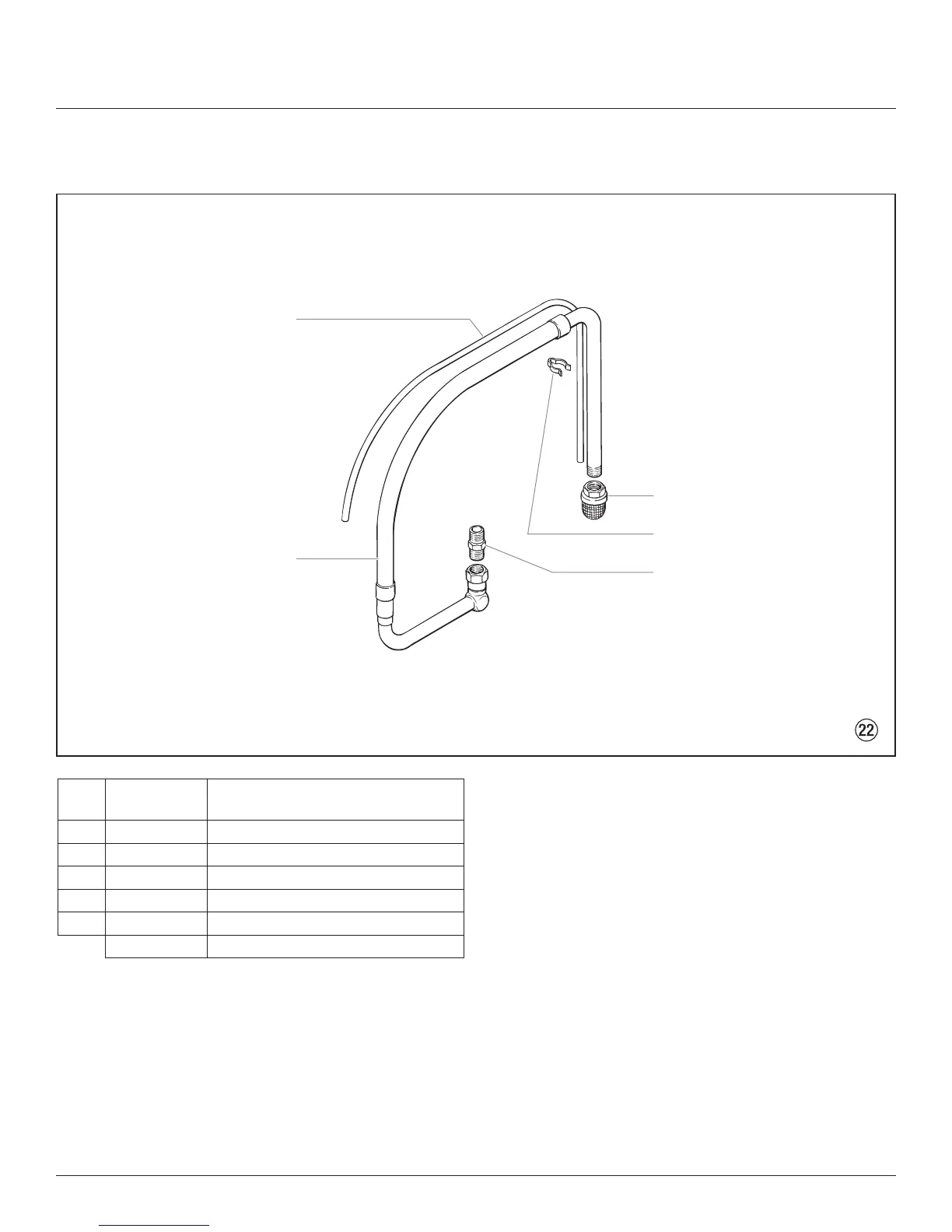

Suction system for low boy cart
Spare parts list
Item
Part No.
Description
1
0507 964
Return hose
2
0507 965
Siphon tube
3
5006 536
Inlet screen
4
0507 783
Clamp
5
0507 967
Siphon tube adapter
-------
Tie wrap (not shown)
32
34
Table of Contents
Default Chapter
3
Table of Contents
3
Explanation of Symbols Used
4
Safety Regulations for Airless Spraying
4
Electric Safety
5
Electrostatic Charging (Formation of Sparks or Flames)
5
2 General View of Application
6
Application
6
Coating Materials
6
3 Description of Unit
6
Airless Process
6
Functioning of the Unit
6
Legend for Explanatory Diagram Prospray 3.29 / 3.31
7
Explanatory Diagram Prospray 3.29 / 3.31
7
Technical Data
8
Transportation
8
Transportation in Vehicle
8
4 Starting Operation
8
High-Pressure Hose, Spray Gun and Separating Oil
8
Control Panel Indicators
9
Pressure Control Knob Settings
9
Connection to the Mains Network
9
Cleaning Preserving Agent When Starting-Up of Operation Initially
10
Taking the Unit into Operation with Coating Material
10
Digital Electronic Spray Control (DESC)
10
5 Spraying Technique
12
6 Handling the High-Pressure Hose
12
7 Interruption of Work
12
8 Cleaning the Unit (Shutting Down)
13
Cleaning Unit from Outside
13
Cleaning the High-Pressure Filter
13
Cleaning Airless Spray Gun
14
9 Remedy in Case of Faults
14
Servicing
16
General Servicing
16
High-Pressure Hose
16
Repairs at the Unit
16
Relief Valve
16
Inlet and Outlet Valve
16
Packings
17
Prospray 3.29 / 3.31 Connection Diagram
18
Appendix
19
Selection of Tip
19
Servicing and Cleaning of Airless Hard-Metal Tips
19
Spray Gun Accessories
19
Airless Tip Table
20
Pump-Runner
22
Sales and Service Companies
23
Accessories for Prospray 3.29 / 3.31
24
Spare Parts List for Main Assembly
26
Spare Parts List for Fluid Section
28
Spare Parts List for Drive Assembly
30
Spare Parts List of Filter Assembly
32
Spare Parts List for Suction System for Low Boy Cart
33
Spare Parts List for Upright Cart
34
Spare Parts List for Low Boy Cart
35
Important Notes on Product Liability
36
3+2 Years Guarantee for Professional Finishing
36
