34 ProSpray3.29•3.31

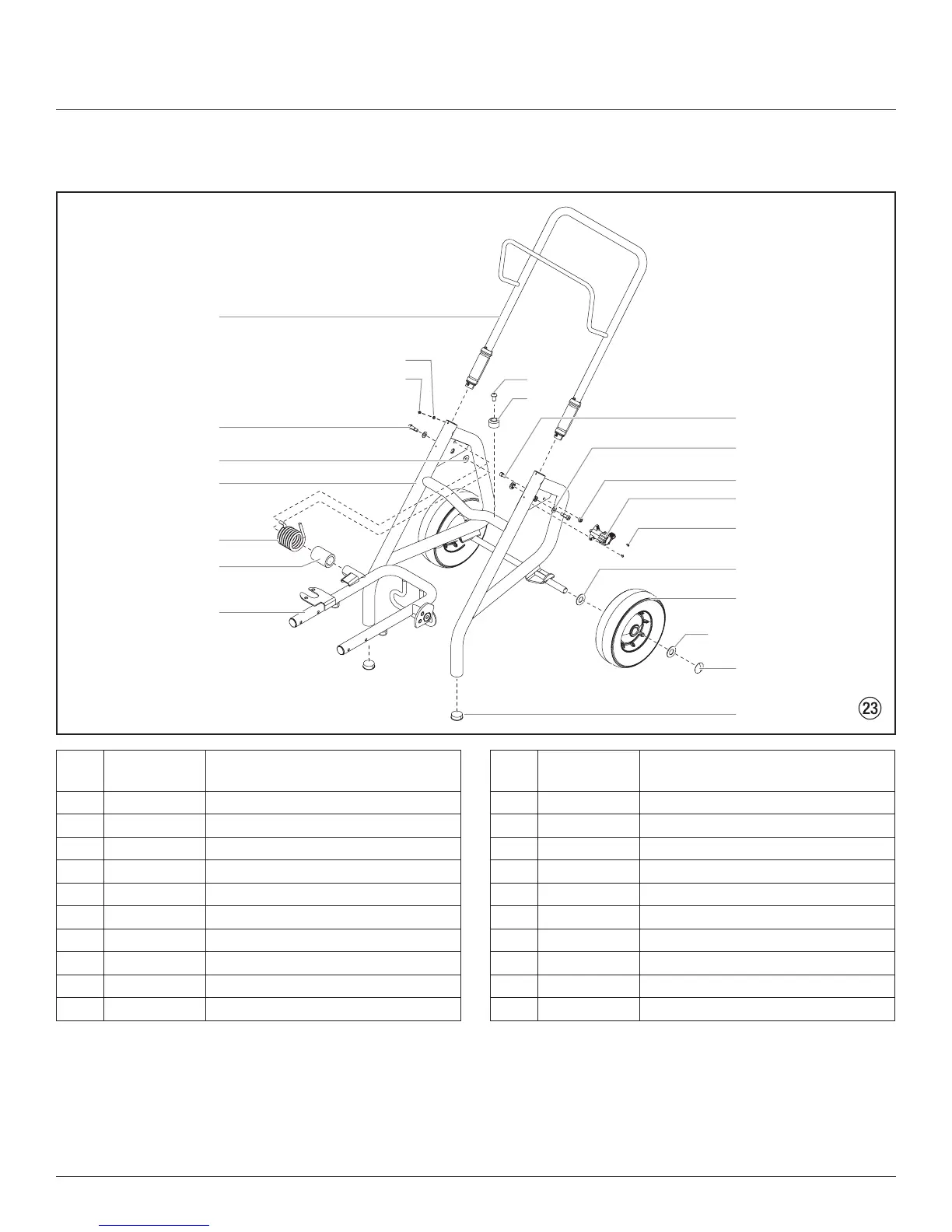

Spare parts list

15
19
20
1
2
3
4
5
7
6
8
9
17
16
18
13
14
15
12
11
10

Item Part No. Description
1 0290 207 Handle assembly (includes items 8-9)
2 9805 352 Screw (2)
3 0290 257 Bushing
4 0290 235 Cart weldment
5 9894 275 Spring
6 0290 294 Bushing
7 0290 244 Carriage assembly
8 0509 386 Washer (4)
9 0295 608 Screw (4)
10 0279 481 Screw
Item Part No. Description
11 9820 305 Washer (2)
12 0555 319 Jam nut
13 0290 236 Cam assembly
14 9805 353 Screw (2)
15 0294 534 Spacer (4)
16 0278 373 Wheel (2)
17 9890 104 Axle cap (2)
18 9885 571 Plug (2)
19 54458 Screw (2)
20 13538 Pad (2)
