ProSpra
y3.29•3.31
35

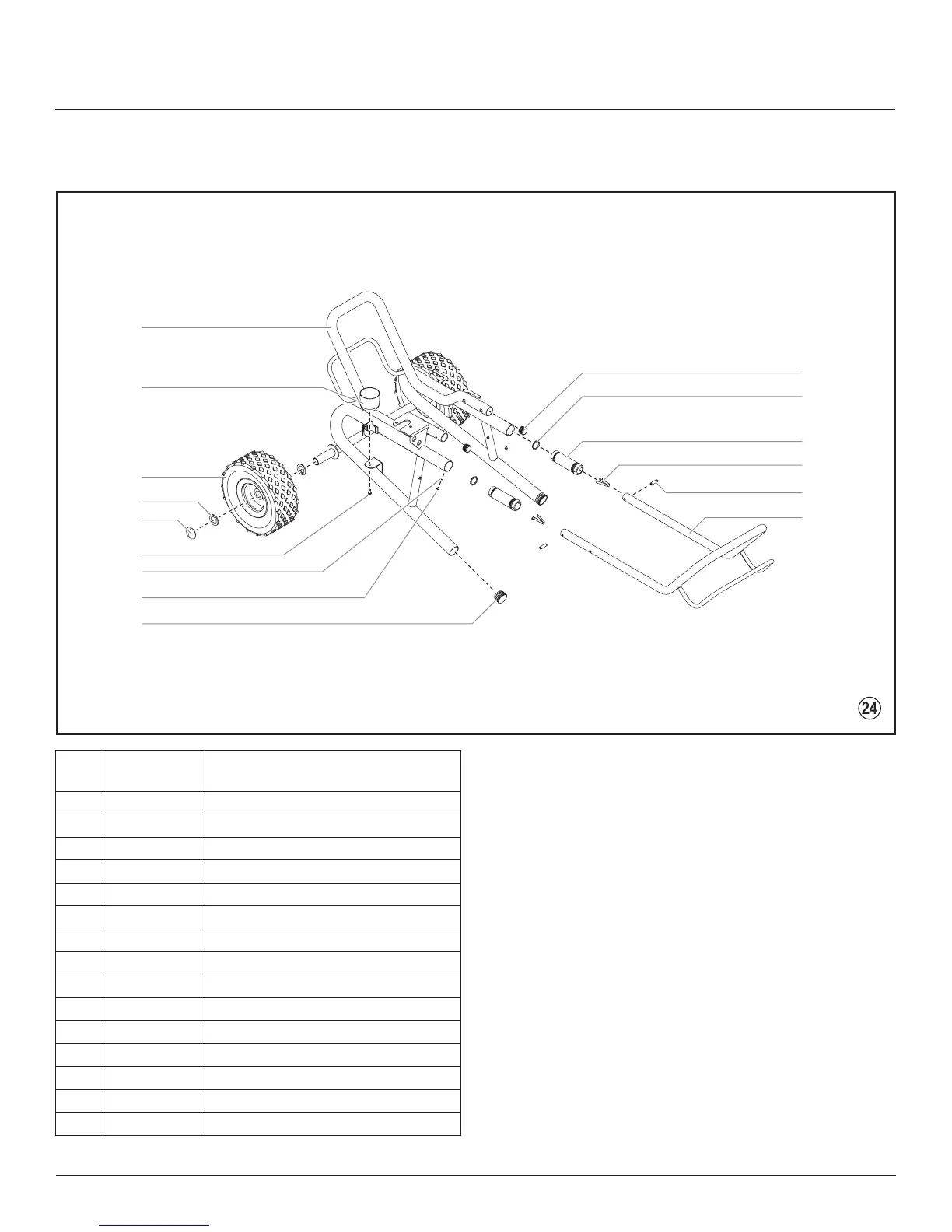

Spare parts list
ProSpray 3.29
10
11
12
15
13
14
1
2
3
4
5
6
9
7
8
Item
Part No.
Description
1
0290 290
Cart
2
0508 381
Drip cup
3
0290 291
Wheel
4
0294 534
Wheel spacer
5
9890 104
Axle cap
6
9805 230
Drip cup screw
7
0509 386
Washer
8
0295 608
Screw
9
9885 571
Plug
10
0294 635
Plug
11
0295 609
Washer
12
0295 607
Handle sleeve
13
9841 504
Spring button
14
0295 610
Roll pin
15
0290 292
Handle assembly
34
36
Table of Contents
Default Chapter
3
Table of Contents
3
Explanation of Symbols Used
4
Safety Regulations for Airless Spraying
4
Electric Safety
5
Electrostatic Charging (Formation of Sparks or Flames)
5
2 General View of Application
6
Application
6
Coating Materials
6
3 Description of Unit
6
Airless Process
6
Functioning of the Unit
6
Legend for Explanatory Diagram Prospray 3.29 / 3.31
7
Explanatory Diagram Prospray 3.29 / 3.31
7
Technical Data
8
Transportation
8
Transportation in Vehicle
8
4 Starting Operation
8
High-Pressure Hose, Spray Gun and Separating Oil
8
Control Panel Indicators
9
Pressure Control Knob Settings
9
Connection to the Mains Network
9
Cleaning Preserving Agent When Starting-Up of Operation Initially
10
Taking the Unit into Operation with Coating Material
10
Digital Electronic Spray Control (DESC)
10
5 Spraying Technique
12
6 Handling the High-Pressure Hose
12
7 Interruption of Work
12
8 Cleaning the Unit (Shutting Down)
13
Cleaning Unit from Outside
13
Cleaning the High-Pressure Filter
13
Cleaning Airless Spray Gun
14
9 Remedy in Case of Faults
14
Servicing
16
General Servicing
16
High-Pressure Hose
16
Repairs at the Unit
16
Relief Valve
16
Inlet and Outlet Valve
16
Packings
17
Prospray 3.29 / 3.31 Connection Diagram
18
Appendix
19
Selection of Tip
19
Servicing and Cleaning of Airless Hard-Metal Tips
19
Spray Gun Accessories
19
Airless Tip Table
20
Pump-Runner
22
Sales and Service Companies
23
Accessories for Prospray 3.29 / 3.31
24
Spare Parts List for Main Assembly
26
Spare Parts List for Fluid Section
28
Spare Parts List for Drive Assembly
30
Spare Parts List of Filter Assembly
32
Spare Parts List for Suction System for Low Boy Cart
33
Spare Parts List for Upright Cart
34
Spare Parts List for Low Boy Cart
35
Important Notes on Product Liability
36
3+2 Years Guarantee for Professional Finishing
36
