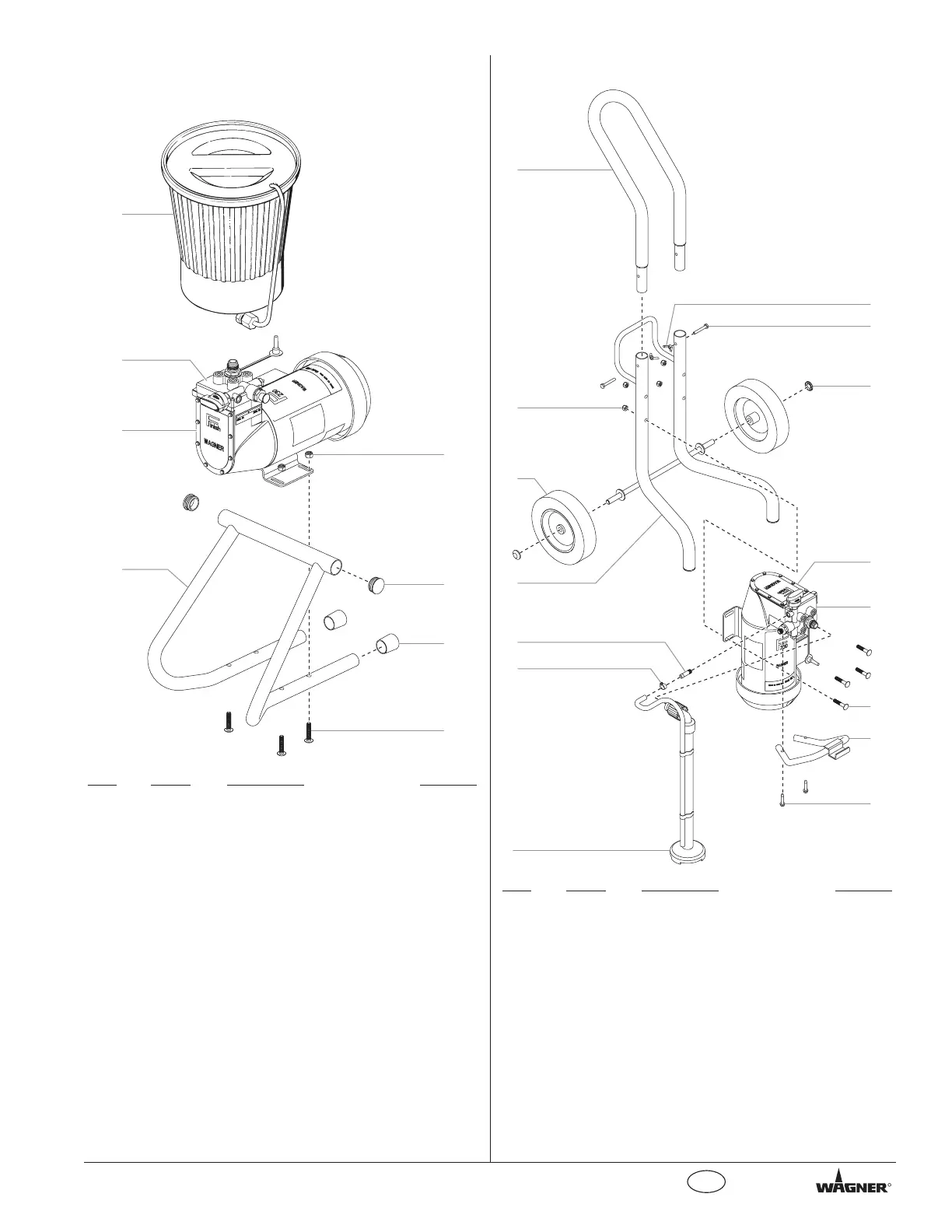

Parts Listing
Main Assembly — Hopper Unit
Item
Part # Description Quantity
1 0288144 Hopper assembly..................................1
2 ---------- Pump head assembly ...........................1
3 0555126 Diaphragm pump, 220–240 VAC..........1
0311200 Diapragm pump, 100–120 VAC
4 0278310 Stand ....................................................1
5 9811122 Lock nut ................................................4
6 0294635 Plug.......................................................2
7 0270343 Tube cap...............................................2
8 9805213 Carriage bolt .........................................4
1
2
3
5
6
7
8
4
Main Assembly — Suction Set Unit
Item Part # Description Quantity
1 0508251 Handle ..................................................1
2 9811122 Lock nut ................................................4
3 0512396 Wheel....................................................2
4 0508255 Frame ...................................................1
5 0088715 Return hose fitting ................................1
6 0327226 Return hose clamp ...............................1
7 0278147 Suction set assembly............................1
8 9810111 Wing nut................................................2
9 9800108 Screw....................................................2
10 9810113 Axle cap................................................2
11 0555126 Diaphragm pump, 220–240 VAC..........1
0311200 Diaphragm pump, 100–120 VAC
12 ---------- Pump head assembly ...........................1
13 9802533 Carriage bolt .........................................4
14 0278364 Pail hook ...............................................1
15 9802519 Screw....................................................2
1
2
3
4
5
6
7
10
9
8
11
12
13
15
14
