WAGNER F230 User Manual

18
GM 5000EAC.
B_03558
S
B_03156
7
13
14
6
5
11
16
15
2
4
20
3
1
9
10
8
19
18
17
12
21
22
OPERATING MANUAL
EDITION 03/2012 PART NUMBER DOC 2319150
Note:
The gun type (T) on the type plate (21) and the serial number (S) on
the underside of the handle.
4.4 FUNCTIONAL DESCRIPTION

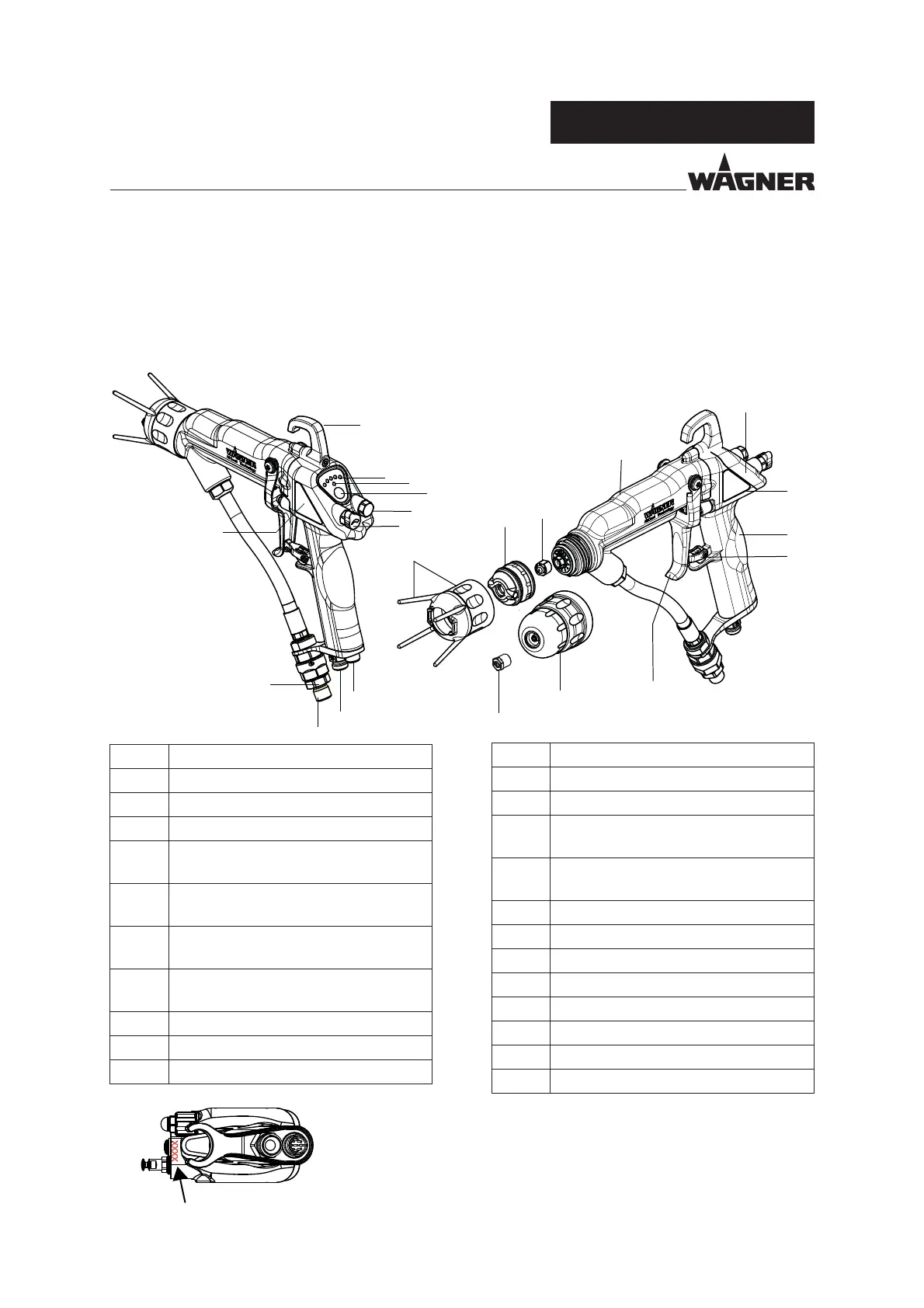

4.4.1 DESIGN OF SPRAY GUN (STANDARD VARIANT)
Note:
The nozzle parts (item 6; 7; 13 and 14) do not belong to the basic equipment of the spray
gun. The different versions can be found in Chapter 9 „Accessories“.
Item Description
1 Hook
2 Display (spray current and recipe)
3 Display standby
4 Operating button
(standby and recipe change)
5 Protection against contact
with union nut
6 Air cap for fl at jet nozzle
(see Accessories chapter 9)
7 ACF 5000 fl at jet nozzle
(see Accessories chapter 9)
8 End piece
9Cover
10 Handle
Item Description
11 Trigger lock
12 Trigger
13 Round jet nozzle cap
(see Accessories chapter 9)
14 Round jet nozzle insert
(see Accessories chapter 9)
15 Lock plug
16 Air adjustment
17 Electrical cable connection
18 Atomizing air connection
19 Material connection
20 Filter housing with fi lter
21 Type plate left
22 Type plate right
