ASSEMBLY
EN
7
SETUP
1 2
3
A
B
4
5
6
NEVER point the spray gun at any part of the
body.
Make sure the power cord is unplugged.

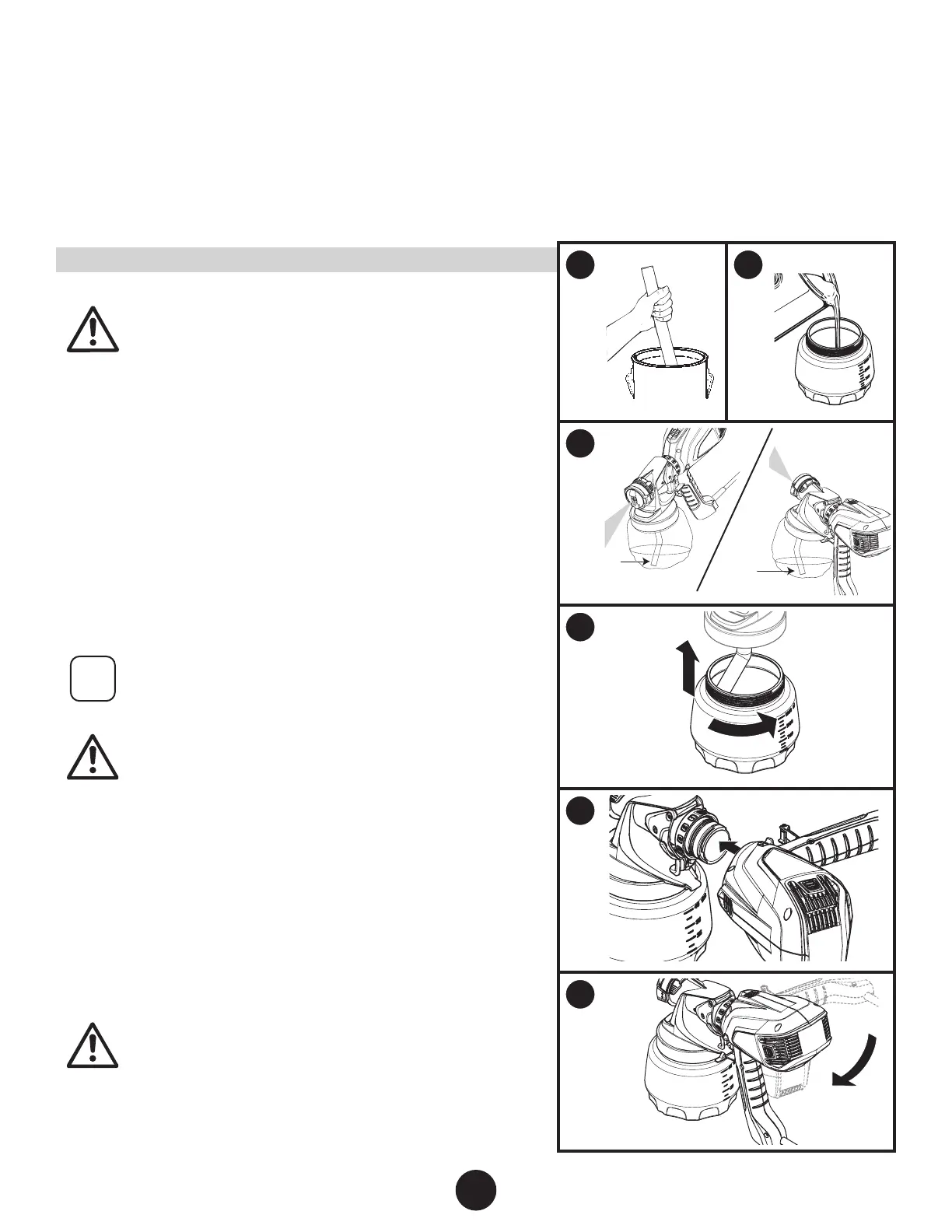

1. Stir the spraying material thoroughly.
2. Fill the container. Use a strainer to remove any particles.
(see Thinning the Material, previous page, if thinning is
required).
3. Align the pickup tube -
A If spraying downward, the angled end of the pickup tube
should be pointing toward the front of the nozzle.
B If spraying upward, the angled end of the pickup tube
should be pointing toward the rear of the nozzle.
Make sure the pickup tube is inserted as far
as it will go to ensure a tight t.
tention
Never tip the sprayer upwards at more than
a 45° angle. Material could get into the
turbine and damage the sprayer.
4. Carefully screw the cup back onto the nozzle assembly.
Tighten rmly.
5. Align the nozzle and the turbine approximately as shown.
6. Insert and twist the nozzle into the turbine toward the
“lock” symbol on the turbine.
The tab below the trigger will lock the two pieces into
place.
tention
Do not pull trigger at any time if the turbine
is not running. Paint will drip from the
nozzle.
