ASSEMBLY
EN
11
SETUP
1 2
3
A
B
4
5
6
7
NEVER point the spray gun at any part of the
body.

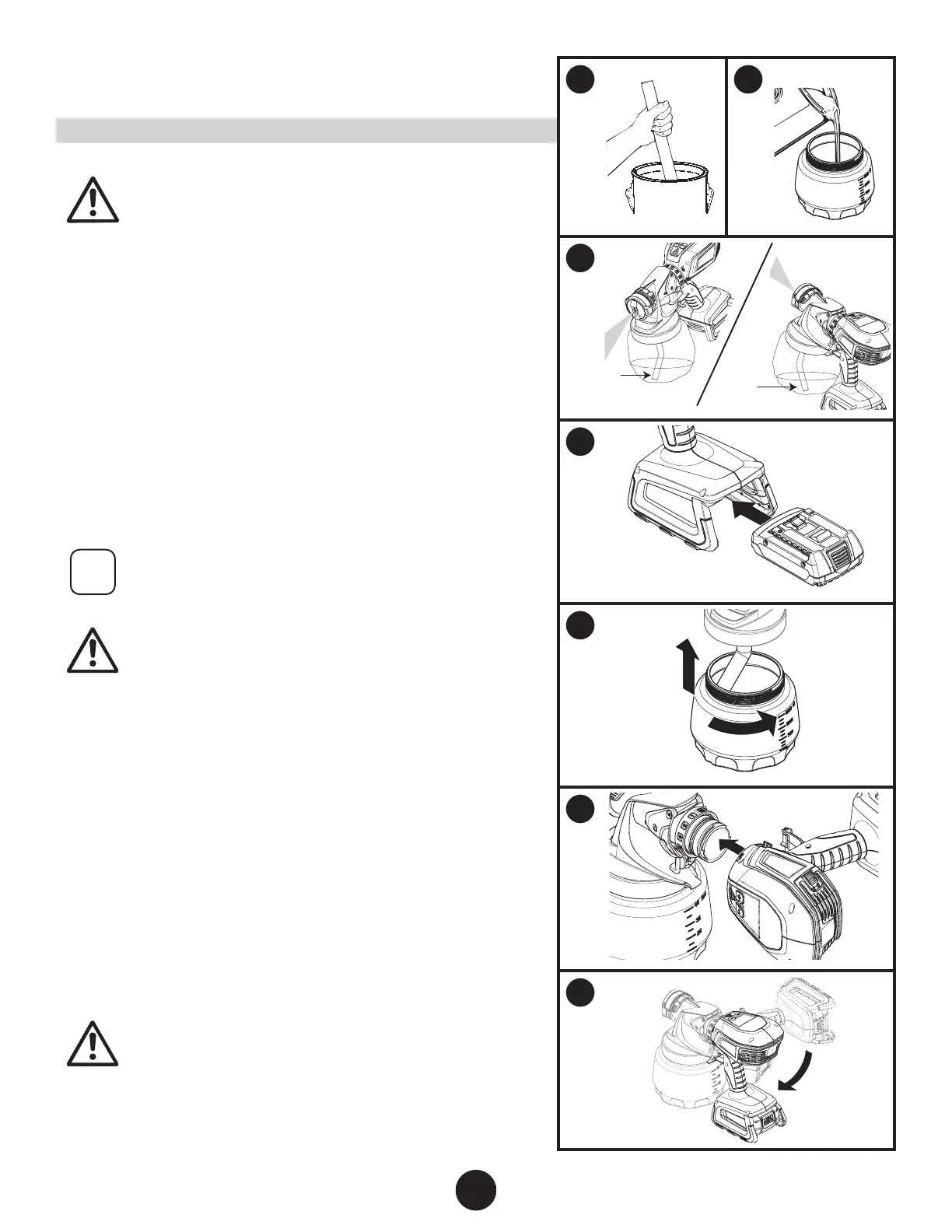

1. Stir the spraying material thoroughly.
2. Fill the container. Use a strainer to remove any particles.
(see Thinning the Material, previous page, if thinning is
required).
3. Align the pickup tube -
A If spraying downward, the angled end of the pickup tube
should be pointing forward.
B If spraying upward, the angled end of the pickup tube
should be pointing toward the rear.
Make sure the pickup tube is inserted as far
as it will go to ensure a tight t.
tention
Never tip the sprayer at more than a 45°
angle. Material could get into the turbine
and damage the sprayer.
4. Make sure the battery is fully charged (see instructions on
page 7). Insert the battery into the bottom of the turbine
handle as shown until it clicks into place.
5. Carefully screw the cup back onto the nozzle assembly.
Tighten rmly.
6. Align the nozzle and the turbine as shown.
7. Insert and twist the nozzle into the turbine toward the
“lock” symbol on the turbine.
The tab below the trigger will lock the two pieces into
place.
tention
Do not pull trigger at any time if the turbine
is not running. Paint will drip from the
nozzle.
