EN
9

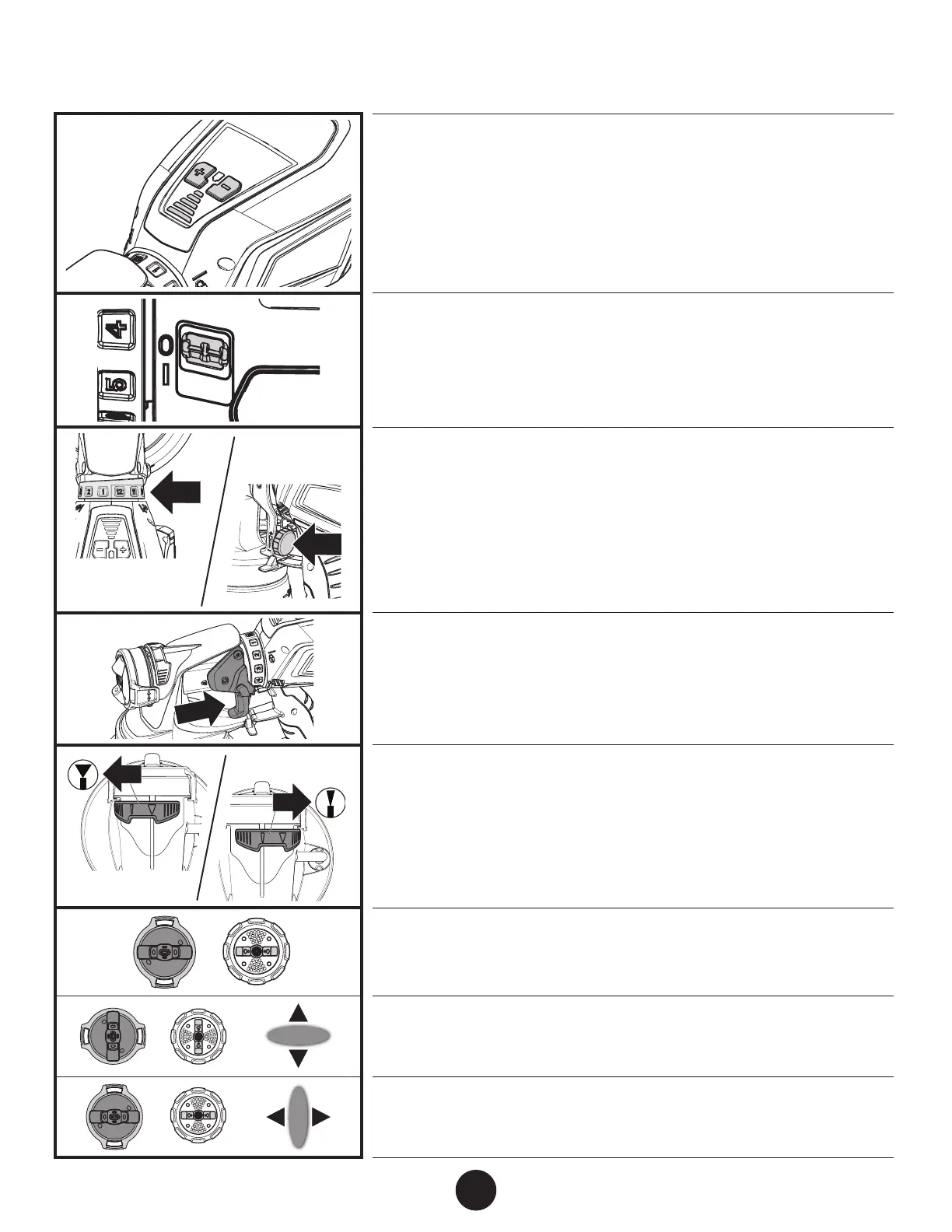

CONTROLS AND FUNCTIONS
XBOOST™ FLOW CONTROL
The X-Boost ow control adjusts the level of air ow produced by the turbine.
Pressing the (+) button will increase the air ow. Pressing the (-) button will decrease
the air ow. The indicator lights will show at what air ow the turbine is currently
spraying.
Whenever the turbine is turned ON, the air ow will automatically be set to 3 bars
(medium air ow).
0
l
ON / OFF SWITCH
The ON/ OFF switch turns the turbine ON (I) and OFF (0).
No spray material will be delivered until trigger is pulled.
iSPRAY
DETAIL FINISH
MATERIAL FLOW CONTROL
The material ow control determines the amount of spray material that is sprayed
from the spray nozzle.
iSpray Nozzle - The material ow can be adjusted incrementally from 1 (minimum) to
12 (maximum) by turning the adjustable material ow control.
Detail Finish Nozzle - Set the material ow by turning the grey knob on the trigger of
the spray gun.
TRIGGER
Pulling the trigger will deliver material from the material container to the nozzle
assembly, where it is sprayed.
WIDE
NARROW
SPRAY WIDTH LEVER iSPRAY ONLY
The spray width lever determines the width of the spray pattern.
DETAIL
FINISH
iSPRAY
ADJUSTMENT RING
The spray pattern shape is adjusted by turning the adjustment ring to either the
vertical or horizontal positions.
=
Horizontal pattern (use ‘up and down’ spraying motion)
=
Vertical pattern (use ‘side to side’ spraying motion)
