WAGO EPSITRON 787-1668 Series User Manual

14 Device Description EPSITRON®
787-1668 Electronic Circuit Breaker
Manual
Version 1.1.0
Pos: 20 /A ll e Ser ien (Al lg emei ne M od ule)/ Üb ers chrif te n für al le S eri en/G erä teb esc hrei bu ng/A nsic ht - Ü b erschr if t 2 @ 4\ mod_1240984217343_21.doc x @ 31958 @ 2 @ 1
3.1 View
Pos: 21 /S eri e 7 87 ( EPSIT RON)/ Gerät ebesc hrei bung/ Ansi cht/A nsicht 7 87-1668 @ 13\mod_1343371041650_21.docx @ 101060 @ @ 1

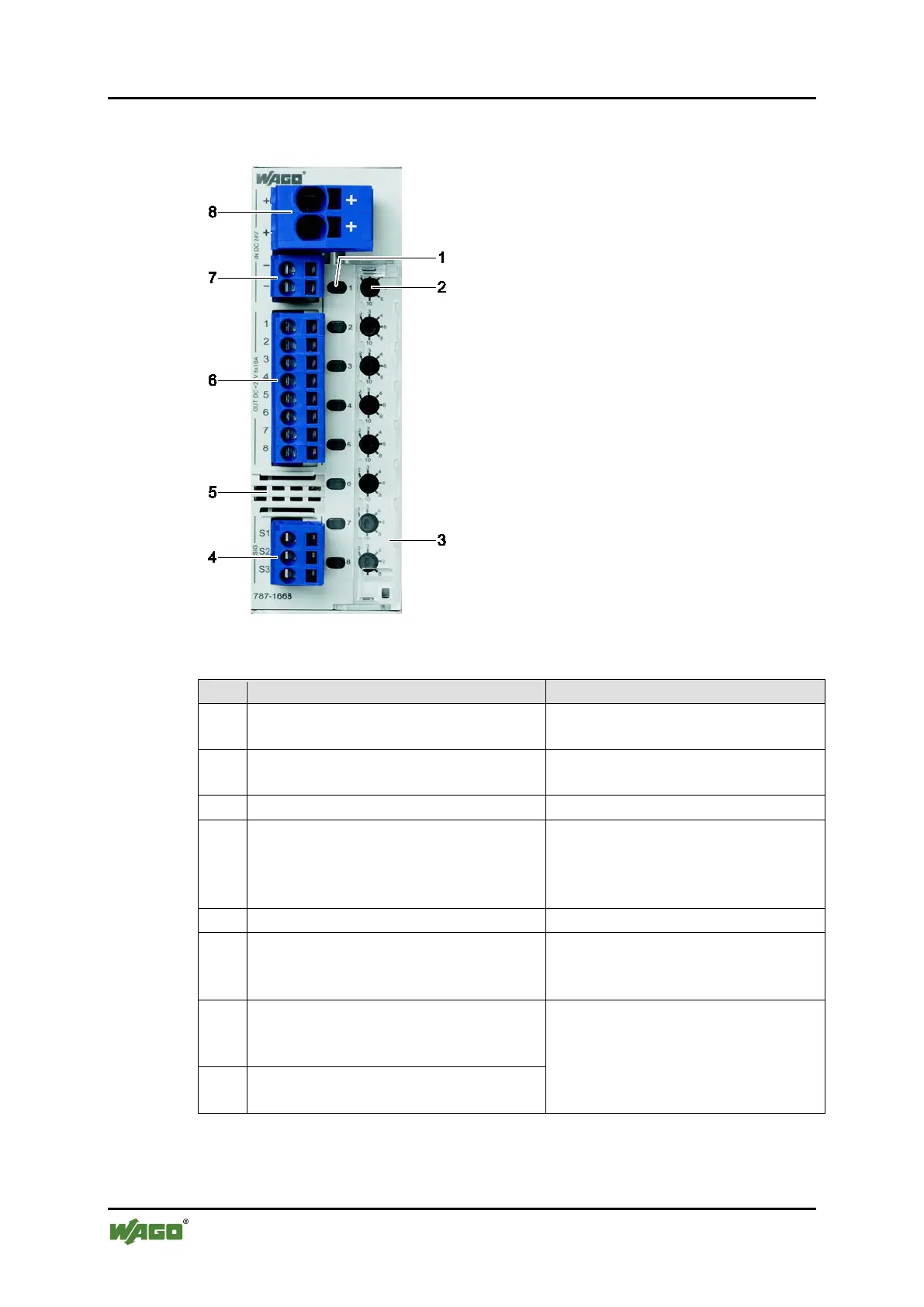

Figure 1: View of device
Table 5: Key for "Device view" figure
No.
Designation
Reference
1
Switch
"Device Description" >
"Operating Elements" > "Buttons"
2
Rotary switch
"Device Description" > "Operating
Elements" > "Rotary Switches"
3
Cover, sealable *)
4
CAGE CLAMP
®
connections
Control input S1 and
Signaling outputs S2 and S3
"Function Description" >
"Control Input S1"/
"Signaling Output S2"/
"Signaling Output S3"
5
Marking field **)
6
CAGE CLAMP
®
connections
for fuse-protected output channels
"Device Description" >
"Connections" >
"Fuse-Protected Output Channels"
7
CAGE CLAMP
®
connections
for 0 V reference potential
(for internal supply only)
"Device Description" >
"Connections" > "Power Supply"
8
CAGE CLAMP
®
connections
for 24 V input voltage
*) can also be marked using TOPJOB
®
S marker strips (Item No. 2009-110)
**) can be marked using TOPJOB
®
S marker strips (Item No. 2009-110) or
WMB Multi marking system
Pos: 22 /Doku ment ation all gemei n/Gli eder ungsel eme nte/---Seit en wechs el--- @ 3\mod_1221108045078_0.docx @ 21810 @ @ 1

WAGO EPSITRON 787-1668 Series Specifications

General

Brand	WAGO
Model	EPSITRON 787-1668 Series
Category	Circuit breakers
Language	English
