smartPRINTER Operating Instructions
smartPRINTER Operating Instructions 003/10.2017 30

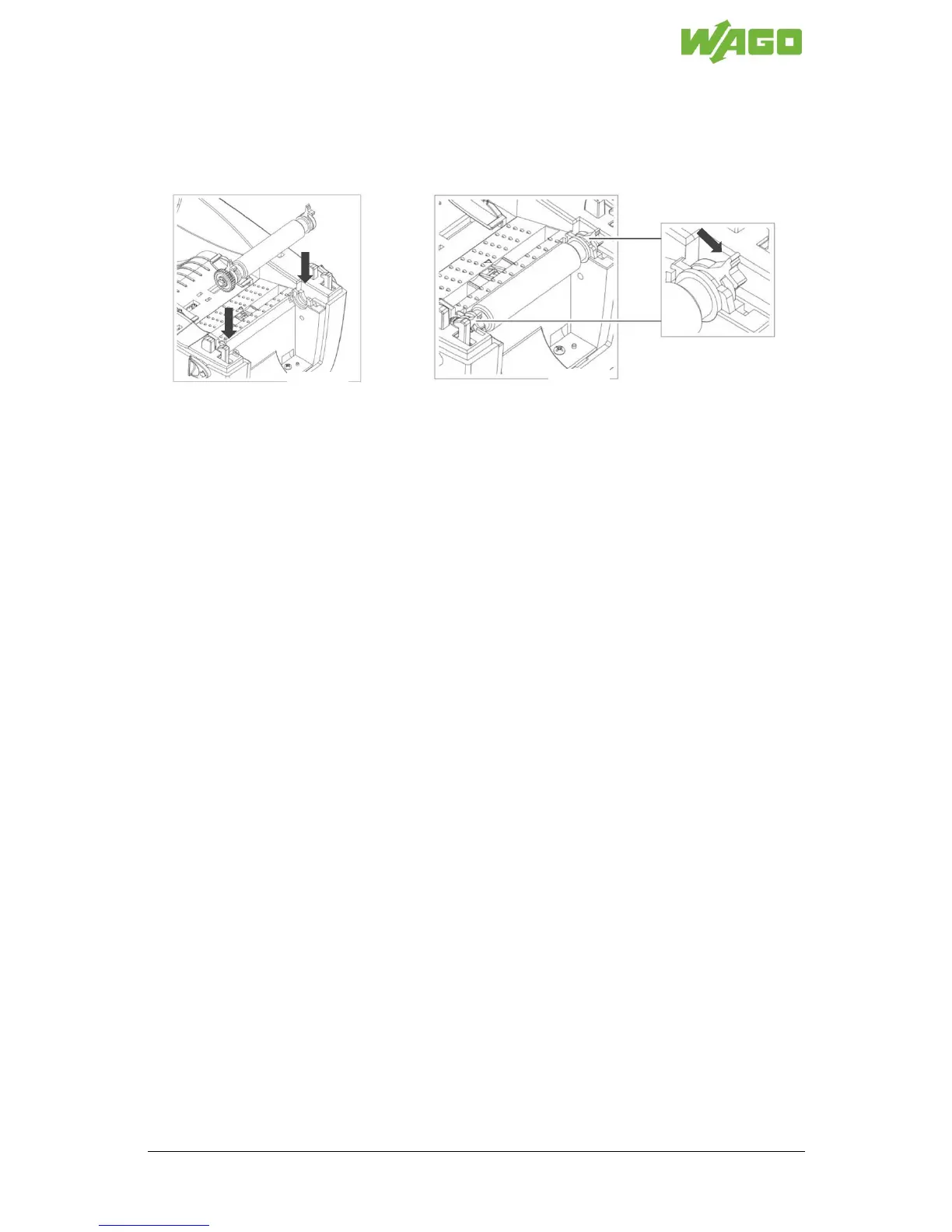

Installing the roller:
Fig. AD4 and Fig. AD5
Pay attention to the gearwheel during installation.
Insert the new or cleaned print roller in the correct orientation.
Press the locking levers on the ends of the roller downwards to the stop.
Not pictured.
Insert the front panel.
Close the smartPRINTER. Hold the lock button down. Guide the printer top onto the printer bottom.
Press the top until the housing parts lock audibly, which is signaled by a click.
