Waldmann MACH LED PLUS MLAL - 3. Mounting; 3.1 Dimensions; 3.2 Mounting the luminaire

20
Mounting
ENG
3. Mounting
CAUTION
Risk of injury caused by a falling lumi-
naire.
Personal injury and material damage.
X Use only suitable fastening ele-
ments available from the manufac-
turer.
X Mount fastening elements cor-
rectly.

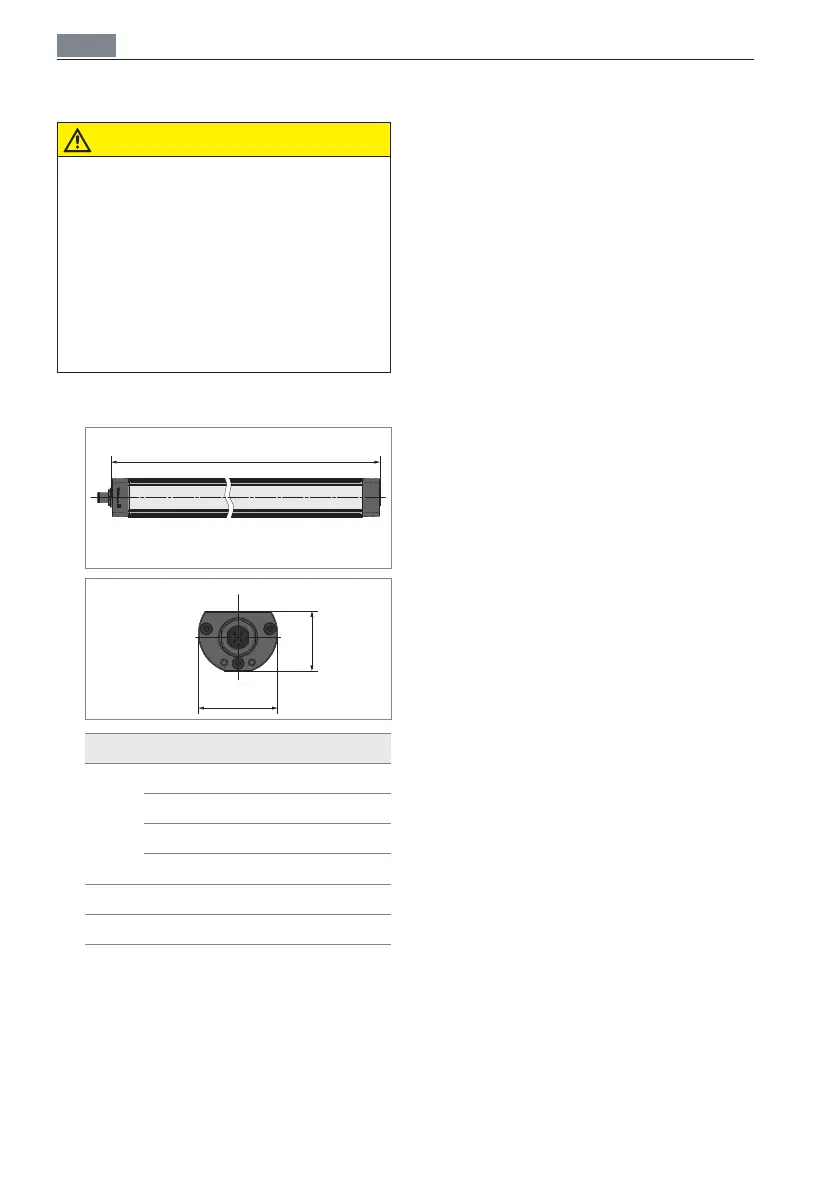

3.1 Dimensions
a
c
b
No. Luminaire Dimension
a
MLAL 12 190 mm
MLAL 27 365 mm
MLAL 42 540 mm
MLAL 57 715 mm
b
all 30 mm
c
all 40 mm
Tab. 2: Dimensions.
3.2 Mounting the luminaire
NOTE: For this luminaire, fastening ele-
ments are available as accessories. For
more information, please visit our home-
page www.waldmann.com.
X Mount the luminaire using suitable fas-
tening elements to the mounting sur-
face. To do so, use the dimensions of
the luminaire, see Tab. 2.
