Waldorf IN8200E INL8200E INB8200E INLB8200E IN8400E INL8400E INB8400E INLB8400E Operation Manual

33
Gas Specifications
- Australia / New Zealand Only
- CE Only
Appliance Classification
Category: II
2H3P
(20, 30 / 37).
Flue Type: A
1.
* The burner operating pressure is to be measured at the manifold test point with 2
burners
operating at the ‘High’ setting. The operating pressure is ex-factory set, through the
appliance regulator and is not to be adjusted, apart from when carrying out gas conversion, if
required. (Refer to the ‘Gas Conversion’ section for details).

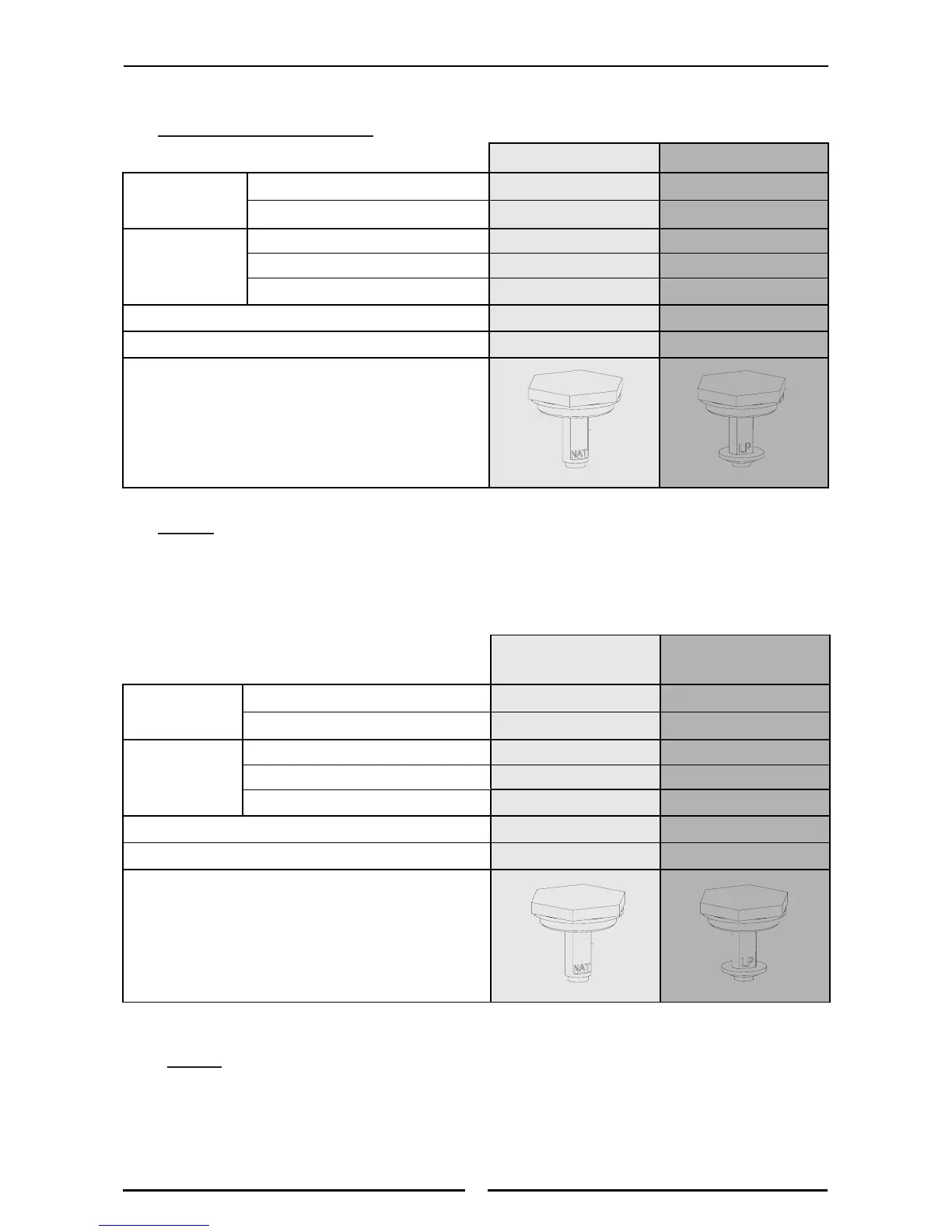

Gas Conversion and Specifications
Natural. Gas LP Gas (Propane)
Open Burner
Main Burner Injectors
Ø 2.45mm Ø 1.50mm
Pilot Burner ('PF' Models only)
0.30 0.20
Main Burner
Ø 2.10mm Ø 1.30 m
Pilot Burner
0.35 0.23
Burner Aeration Gap
Fully Open Fully Open
Supply Pressure
1.13 - 3.40kPa 2.75 - 4.50kPa
Operating Pressure
0.95kPa (*) 2.6kPa (*)
Gas Regulator Cap Screw
Griddle
Natural. Gas
(G20)
Propane
(G31)
Open Burner
Main Burner Injectors
Ø 2.30mm Ø 1.40mm
Pilot Burner ('PF' Models only)
0.30 0.20
Main Burner
Ø 2.10mm Ø 1.30mm
Pilot Burner
0.35 0.23
Burner Aeration Gap
Fully Open Fully Open
Supply Pressure
20mbar 30 / 37mbar
Operating Pressure
9.5mbar (*) 26mbar (*)
Gas Regulator Cap Screw
Griddle
