Step 5
(EN)
(FR)
(ESP)
(DE)

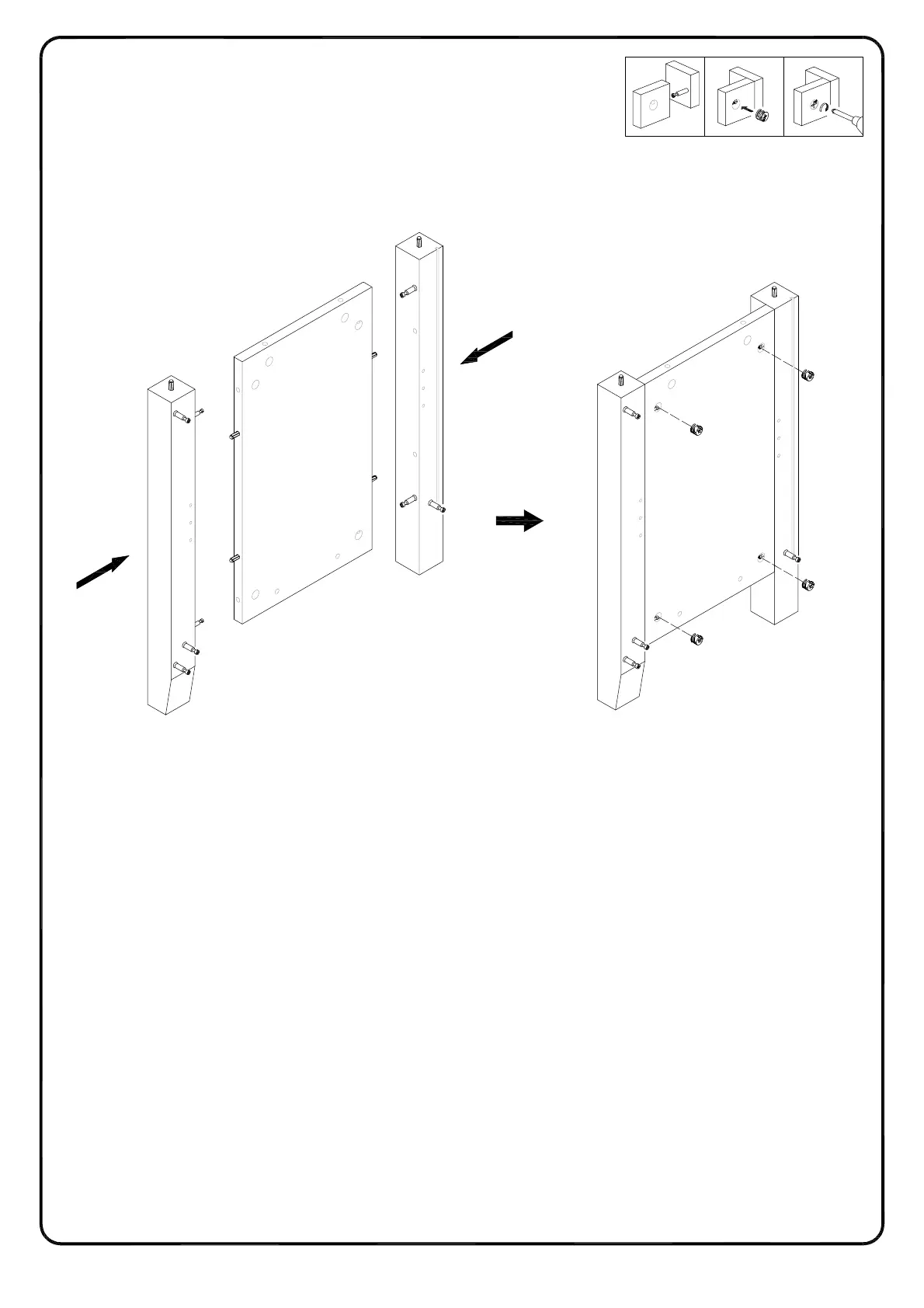

Use cam lock (C) to assemble the wooden legs (13,15) to the side panel (3).
Utilisez le serrure à came (C) pour assembler le pied en bois (13,15au panneau latéral (3.
Use la cierre de leva (C) para ensamblar la pata de madera (13,15) a el panel lateral (3).
Montieren Sie die Holzbeine(13,15) an die Seitenplatte (3) mit den Zylindermuttern (C).
21 3
P.13
C
C
C
