Section 4: Electrical Installation
Different voltage setting
Figure 4.3: 100 to 240 VAC
-
+
RIGHT
+ (Pin 1)
- (Pin 2)

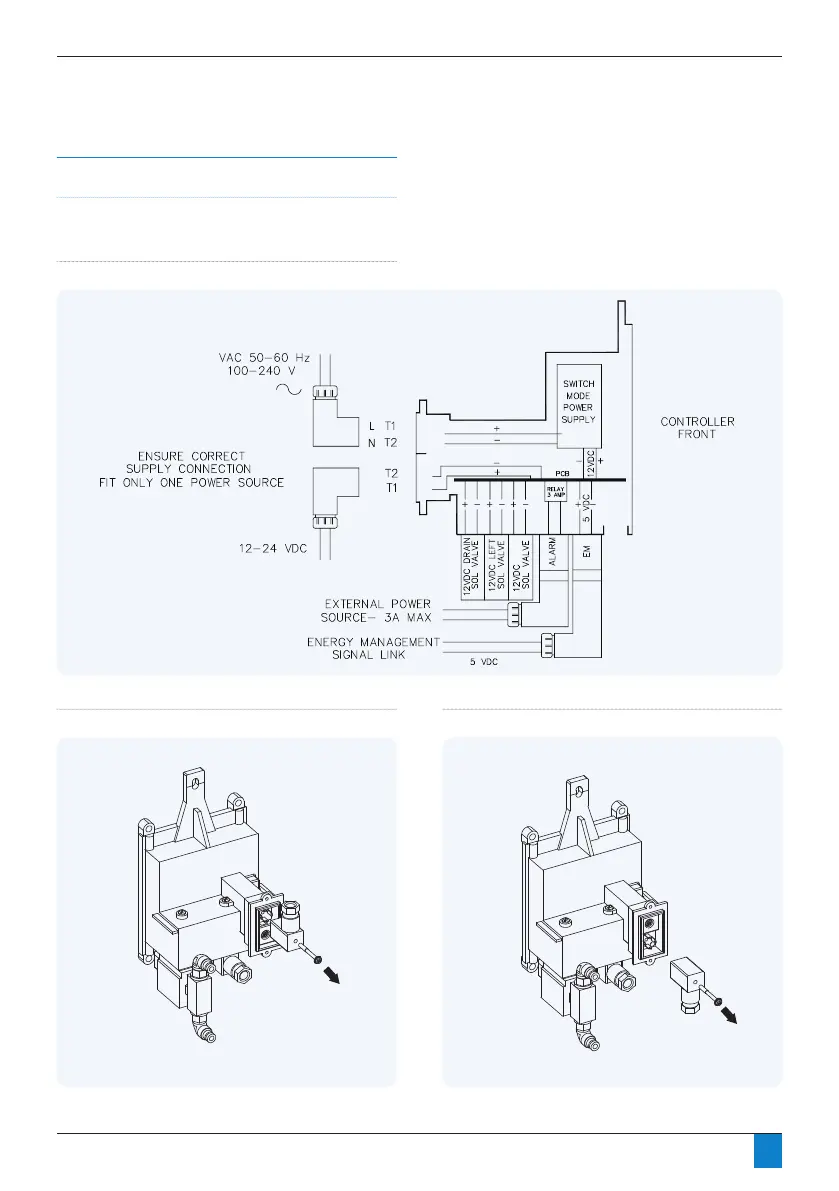

Figure 4.2: Wiring diagram
Figure 4.4: 12 to 24 VDC
