WALKER FILTRATION PD015 - Shuttle Valve Replacement (PD004-PD035)

35
Pro Dry Instruction Manual | Walker Filtration | www.walkerltration.com
Section 6: Maintenance
Replacing Shuttle Valves
Models PD004-PD035
• Remove tower
• Pull out shuttle seat
• Remove shuttle
• Replace shuttle
• Reinsert shuttle seat
• Re-secure tower
Tools required
• 5mm hex key

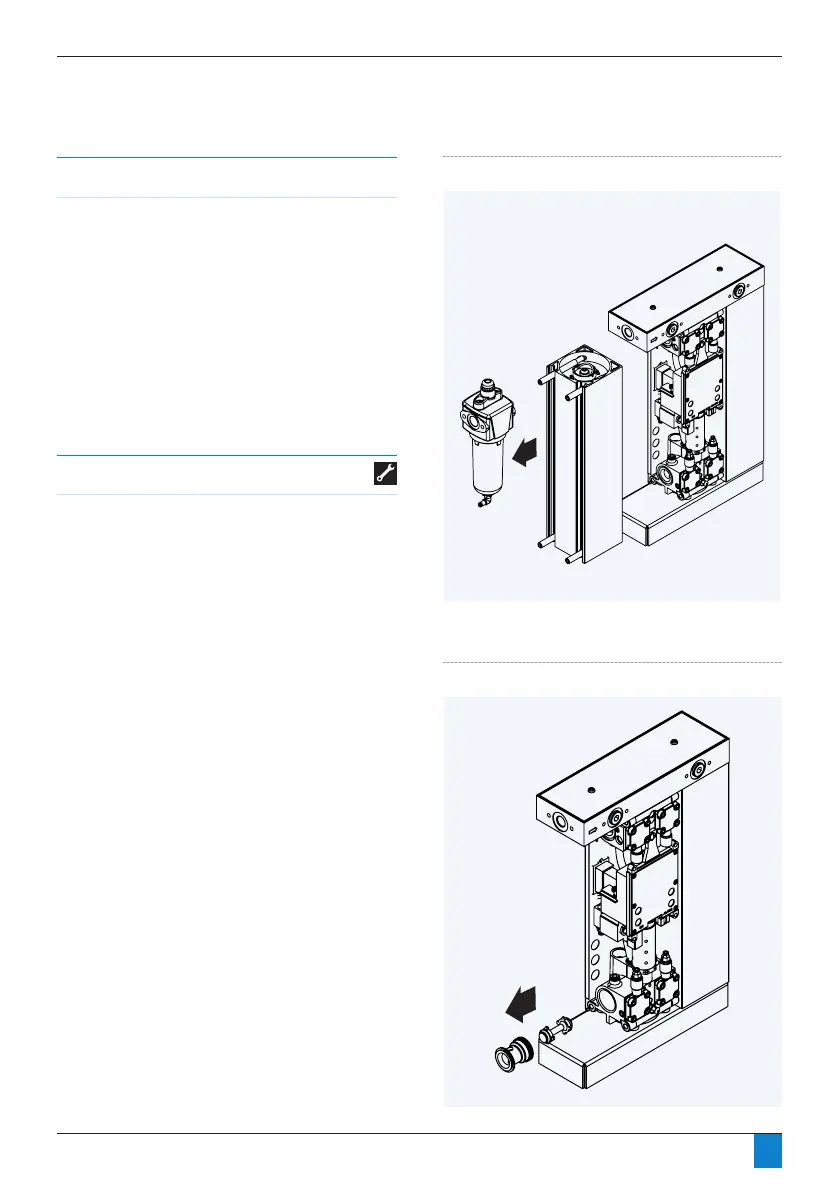

Figure 6.22: PD004-PD035 Filter and tower removal
Figure 6.23: PD004-PD035 Shuttle seat and shuttle removal
