WALKER FILTRATION PD015 - Page 24

24
Pro Dry Instruction Manual | Walker Filtration | www.walkerltration.com
Section 6: Maintenance
GENERAL TOLERANCE SYSTEM - UNLESS OTHERWISE STATED
± 0.25 mm = 0.0
0 NOM
0
=
=
± 0.50 mm
± 1.00 mm
REMOVE ALL SHARP EDGES
ASK! ALL DIMENSIONS IN mm.
DO NOT SCALE DRG. IF IN DOUBT
R
$format
DRG SIZE
SHEET
1 2 3
$sheet
$version
$ident
GENERAL TOLERANCE SYSTEM - UNLESS OTHERWISE STATED
± 0.25 mm = 0.0
0 NOM
0
=
=
± 0.50 mm
± 1.00 mm
REMOVE ALL SHARP EDGES
ASK! ALL DIMENSIONS IN mm.
DO NOT SCALE DRG. IF IN DOUBT
R
$format
DRG SIZE
SHEET
1 2 3
$sheet
$version
$ident

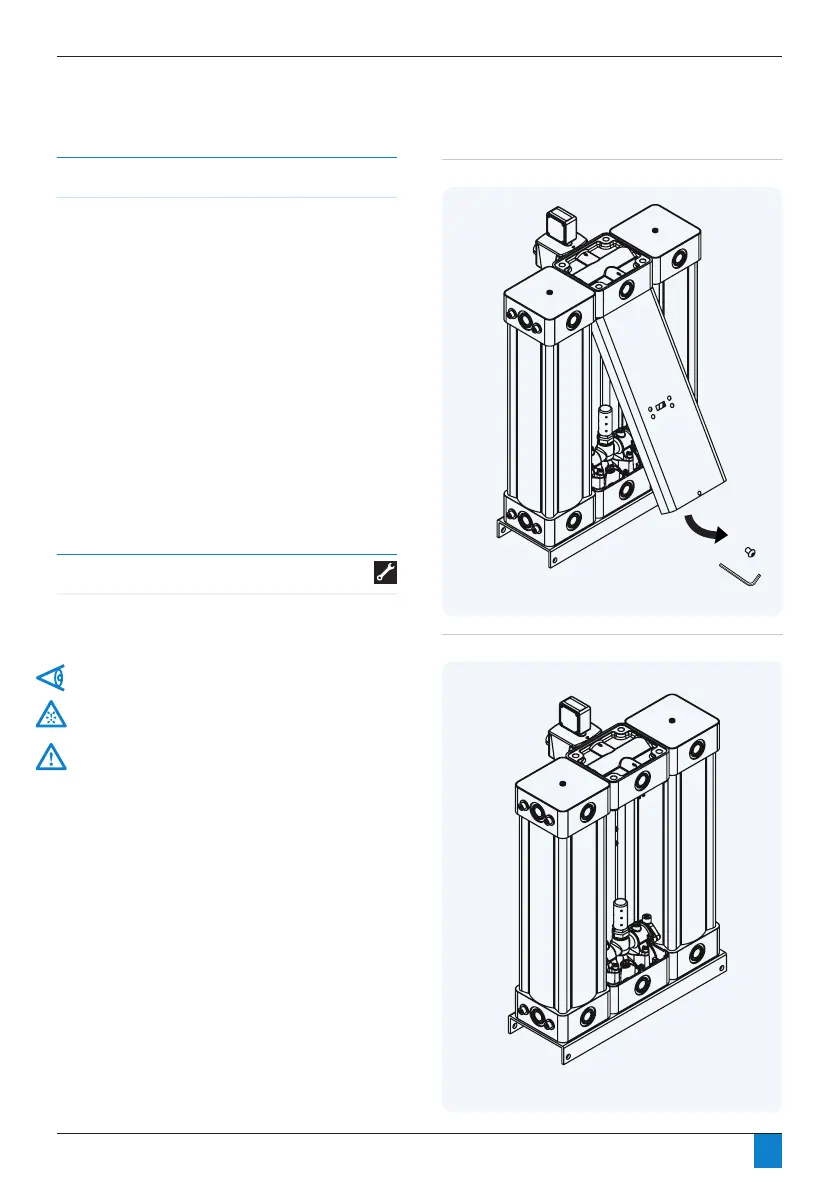

Figure 6.3: Models PD045 – PD365
Tools required
• 5mm hex key.
Front Panel Removal
Models PD045 – PD365 only
• Seegure6.3.
• Using a hex key remove screw from the front panel.
• Open from bottom, allowing top to drop out releasing the
panel entirely.
Figure 6.4: Models PD045 – PD365 with front panel removed
Important information.
Ensure shutdown and start-up procedures are followed prior
to carrying out any maintenance work on the dryer.
Walker Filtration will not accept responsibility for physical
injury, damage or delays caused by failure to observe the
instructions in this manual and manuals provided with
your equipment.
