Attaching Blower to Tractor
(Figures 10-11-12-13)

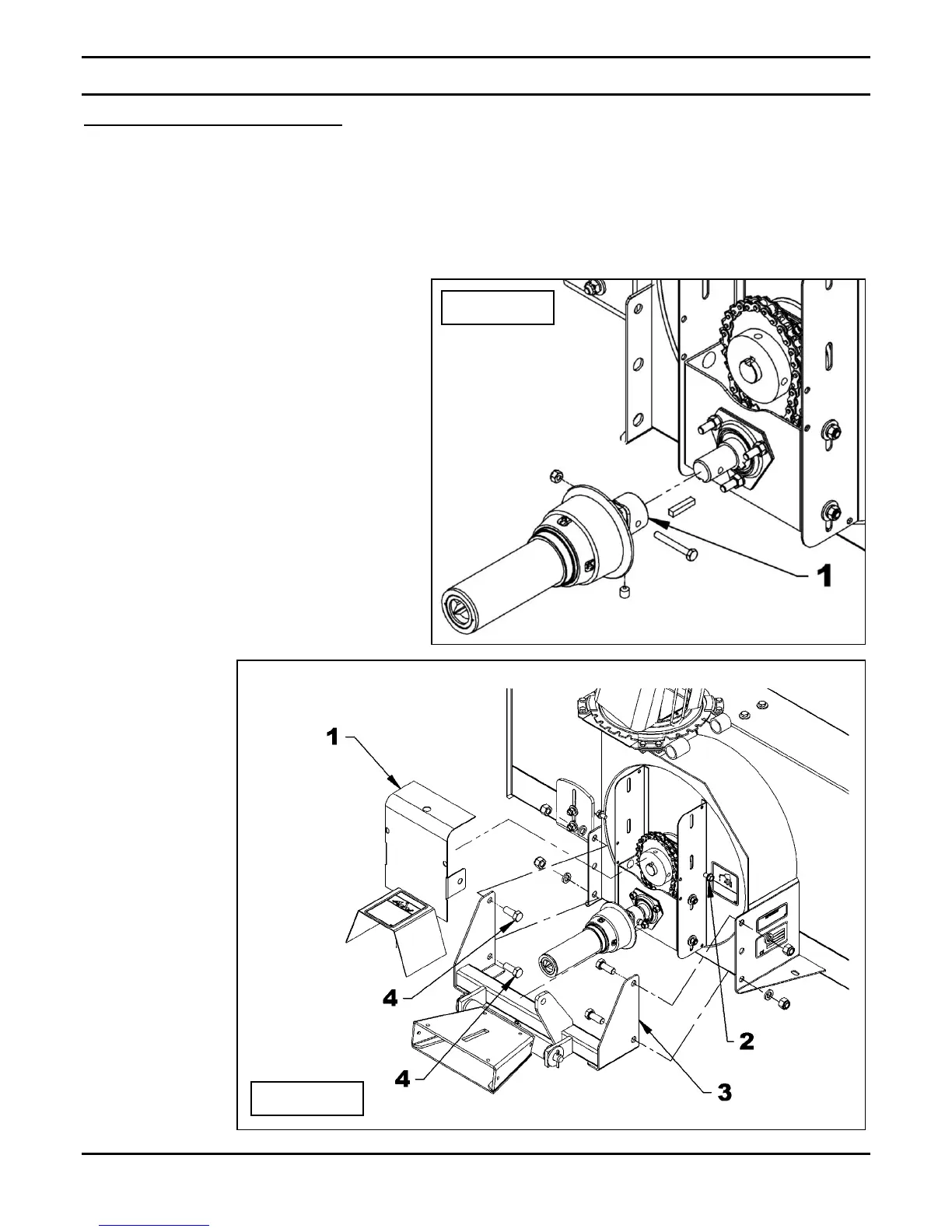

1. Figure 10: Remove the paint from
inside the drive shaft yoke and install a
1/4" x 1/4" x 1 1/4" key (not included) in
the reduction shaft keyway.
2. Figure 10: Slide the drive shaft yoke
(item1) over the reduction shaft.
3. Figure 10: Secure the yoke to the
reduction shaft with a 1/4" x 2 1/2" bolt
and nylon lock nut (not included).
Tighten the bolt and the 3/8" x 1/4" allen
setscrew securely over the key in the
yoke.
4. Figure 11: Hook the reduction box
cover (item 1) on the snowblower and
secure the cover with two 5/16"NC x
1/2" serrated flange bolts (item 2).
Tighten securely.
5. Figure 11: Attach the female portion of
the hitch (item 3) to the snowblower
using one 1/2" x 1 1/4" bolt in the upper
hole of each side (item 4), placing the
bolt head on the inside, then secure
with a lockwasher and nylon insert
locknut on the outside. Then use one
1/2" x 1 1/4" bolt, lockwasher and nylon
insert locknut in the bottom holes of
each side (item 4). Tighten bolts
securely.
