Walker 42” - Worm Gearbox

PARTS
OM 0182SB-A
34

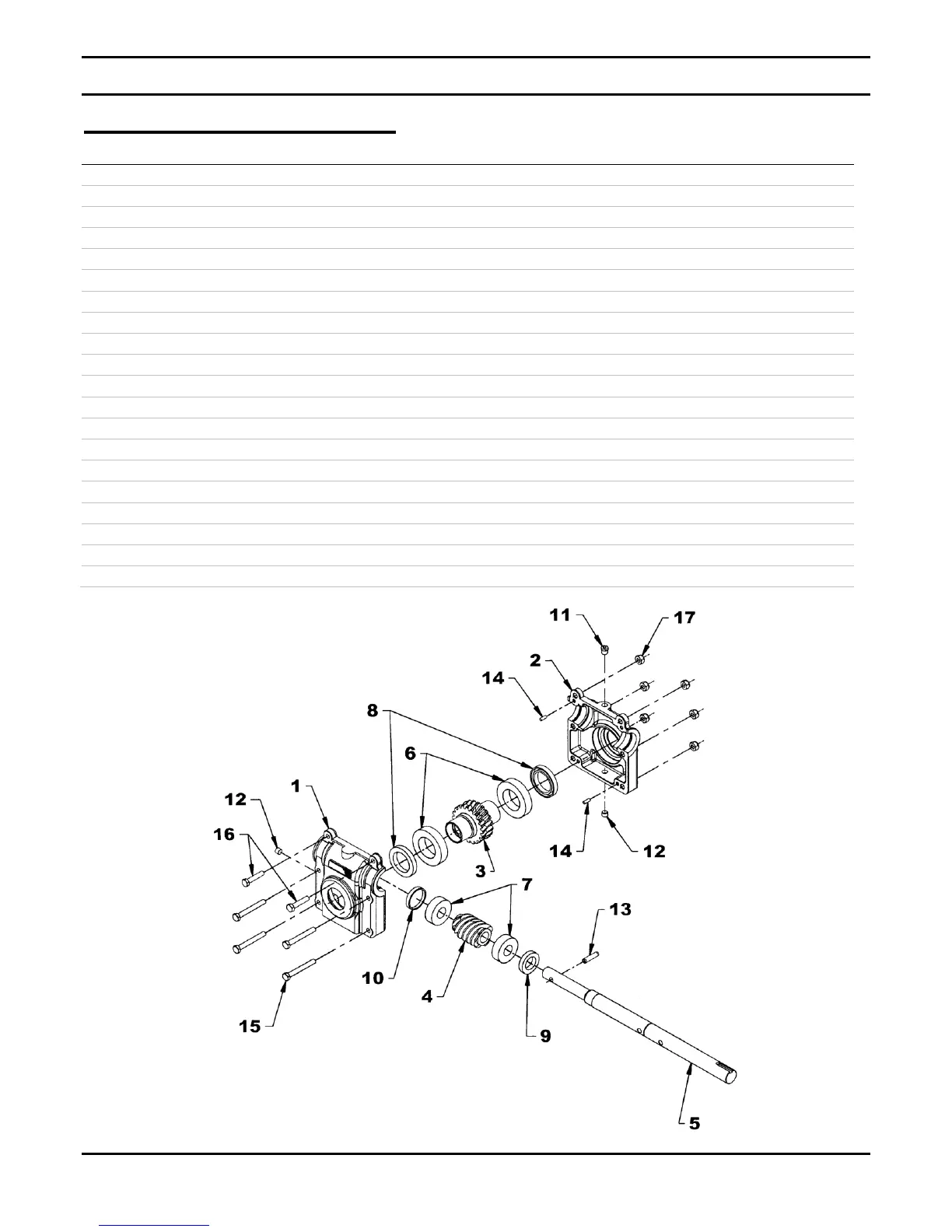

WORM GEARBOX (4500035)
REF.
DESCRIPTION
QTY
PART #
Casing kit (item 1 and 2)
1
4500021
1
Left casing
1
------
2
Right casing
1
------
Worm and gear kit (item 3 and 4)
1
Not available
3
Gear
1
------
4
Worm
1
------
5
Driving shaft
1
4500036
6
Bearing
2
661147
7
Bearing
2
663234
Seal kit (item 8 and 9)
1
665775
8
Seal
2
------
9
Seal
1
------
10
Cap
1
661150
11
Breather 1/8" NPT, 5 PSI, PTD
1
654927
12
Plug 1/8" NPT, PTD
2
656090
13
Spring pin 5/16" dia. x 1 1/4" lg.
1
663243
14
Dowel pin 3/16" dia. x 1/2" lg.
2
663245
15
Hex. bolt 5/16" NC x 2 1/2" lg., PTD
4
0100026
16
Hex. bolt 5/16" NC x 1 1/2" lg., PTD
2
0100021
17
Nylon insert locknut 5/16" NC, PTD
6
1000005
