Walker 42” - Reduction Box Assembly

PARTS
OM 0182SB-A
26

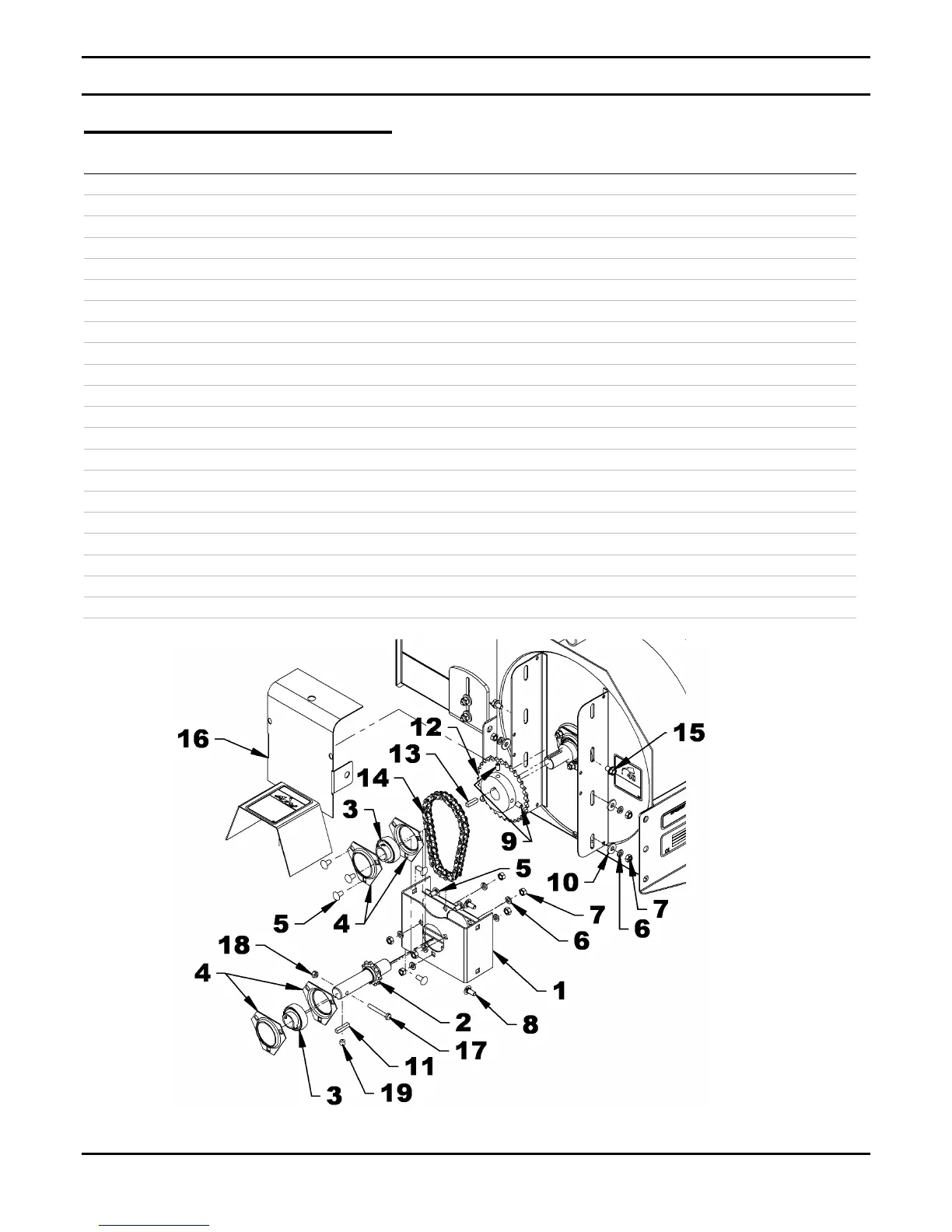

REDUCTION BOX ASSEMBLY
REF.
DESCRIPTION
QTY
CODE
Reduction box ass'y inc. bearing & sprocket
1
657353
1
Reduction box
1
657355
2
Drive shaft with sprocket (H40C11)
1
657250
3
Bearing 1" bore with set screw
2
665494
4
Bearing flange
4
656589
5
Carriage bolt 5/16"NC x 5/8"
6
0300001
6
Lockwasher 5/16", PTD
10
1200003
7
Hex. nut 5/16", PTD
10
0900002
8
Carriage bolt 5/16"NC x 3/4", PTD
4
0300002
9
Allen setscrew 5/16"NC x 5/16"
2
0500009
10
Flat washer 5/16" (3/8" hole) PTD
4
1400003
11
Key 1/4" x 1/4" x 1 1/4" (not included)
1
654643
12
Sprocket (H40B32)
1
656543
13
Key 1/4" x 1/4" x 1"
1
655379
14
Chain #40 x 38 links L.L. with connecting link
1
656570
Connecting link
1
656178
15
Serrated flange bolt 5/16"NC x 1/2", PTD
2
0200065
16
Driveline guard
1
669612
17
Hex. bolt 1/4"NC x 2" (not included)
1
0100010
18
Nylon locknut 1/4"NC (not included)
1
1000003
19
Allen setscrew 3/8"NC x1/4"
1
0500030
