Walker 42” - Electric Chute Rotation Kit- 9475 (Option)

PARTS
OM 0182SB-A
32

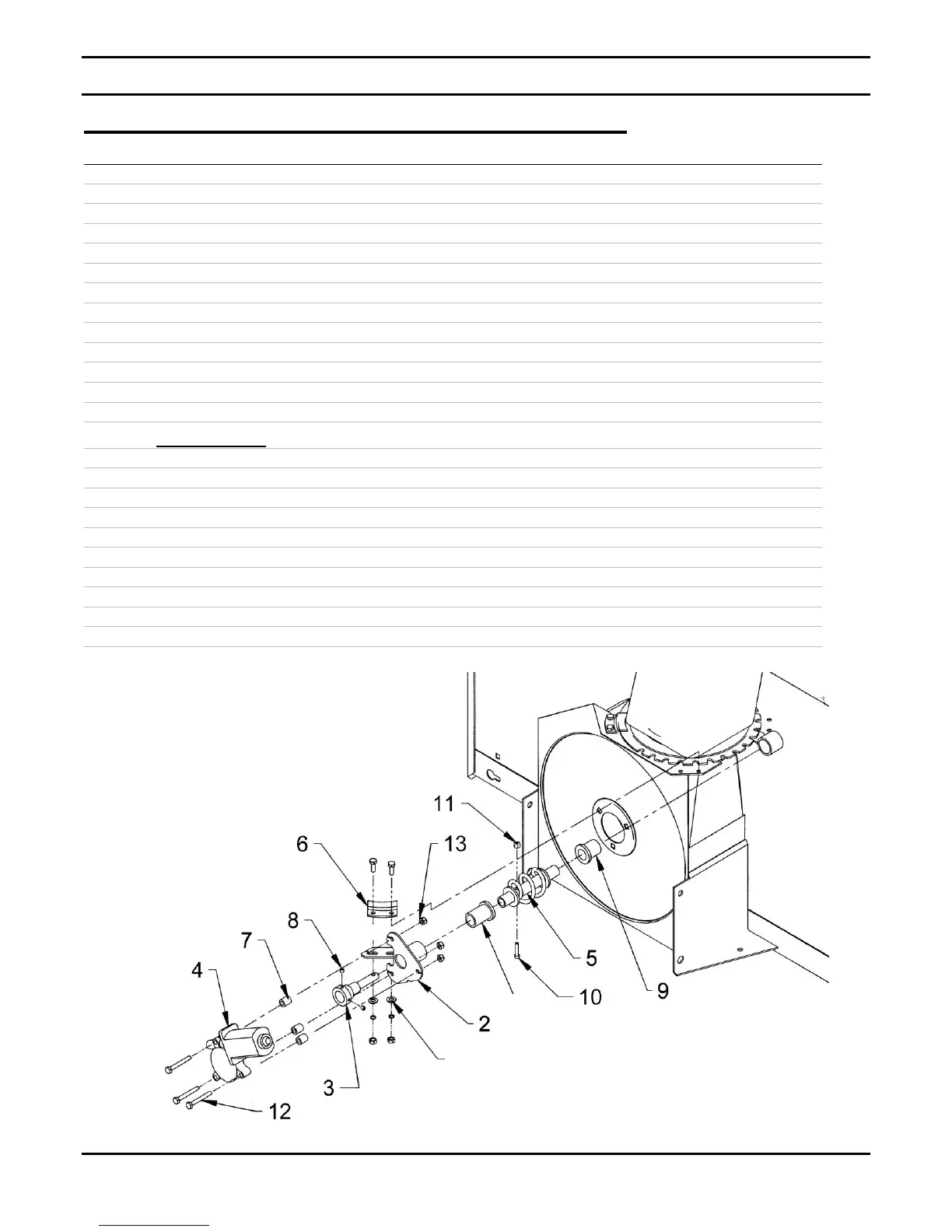

ELECTRIC CHUTE ROTATION KIT – 9475 (OPTION)
REF.
DESCRIPTION
QTY
PART NUMBER
1
Flat washer 4/4" (5/16"hole), PTD
2
1400002
2
Electric motor support CCW
1
664827
3
Worm adaptor
1
662459
4
Electric motor
1
662455
5
Rotation worm
1
660246
6
Retaining plate (not included in 9475 kit)
4
657333
7
Spacer ring
1
666691
8
Setscrew 1/4" NF x 1/4"
2
0500003
9
Plastic bushing 1 5/16"
2
657335
10
Socket head capscrew 10-24 NC x 1", PTD
1
0800009
11
Nylon insert lock nut 10-24 NC, PTD
1
1000002
12
Bolt hex. 1/4" NC x 2", PTD
3
0100010
13
Nylon insert lock nut 1/4" NC, PTD
3
1000003
Not illustrated:
- Wire 16GA X 5"lg 1 thread, black
2
655441
- Wire ass. 16GA X 17"lg black
1
655442
- Wire double 16GA X 102"lg
1
662468
- Wire 16GA X 18"lg ass. black
1
660692
- Wire 16GA X 18"lg 1 thread, black
1
660323
- Rubber cap for switch
1
658666
- Switch
1
658778
- Tap connector
1
656665
- Fuse 15 amp.
1
660687
- Fuse support
1
658665
