Operating Instructions
HI-DUMP
®
OPERATION
The operator raises and dumps the GHS catcher
box while sitting in the seat. Two toggle switches
operate independent hydraulic cylinders to raise,
lower, and dump the catcher. The back door auto-
matically opens and closes during the dump cycle.
NOTE: The ignition switch must be in the ON (RUN)
position for the Hi-Dump
®
system to operate.

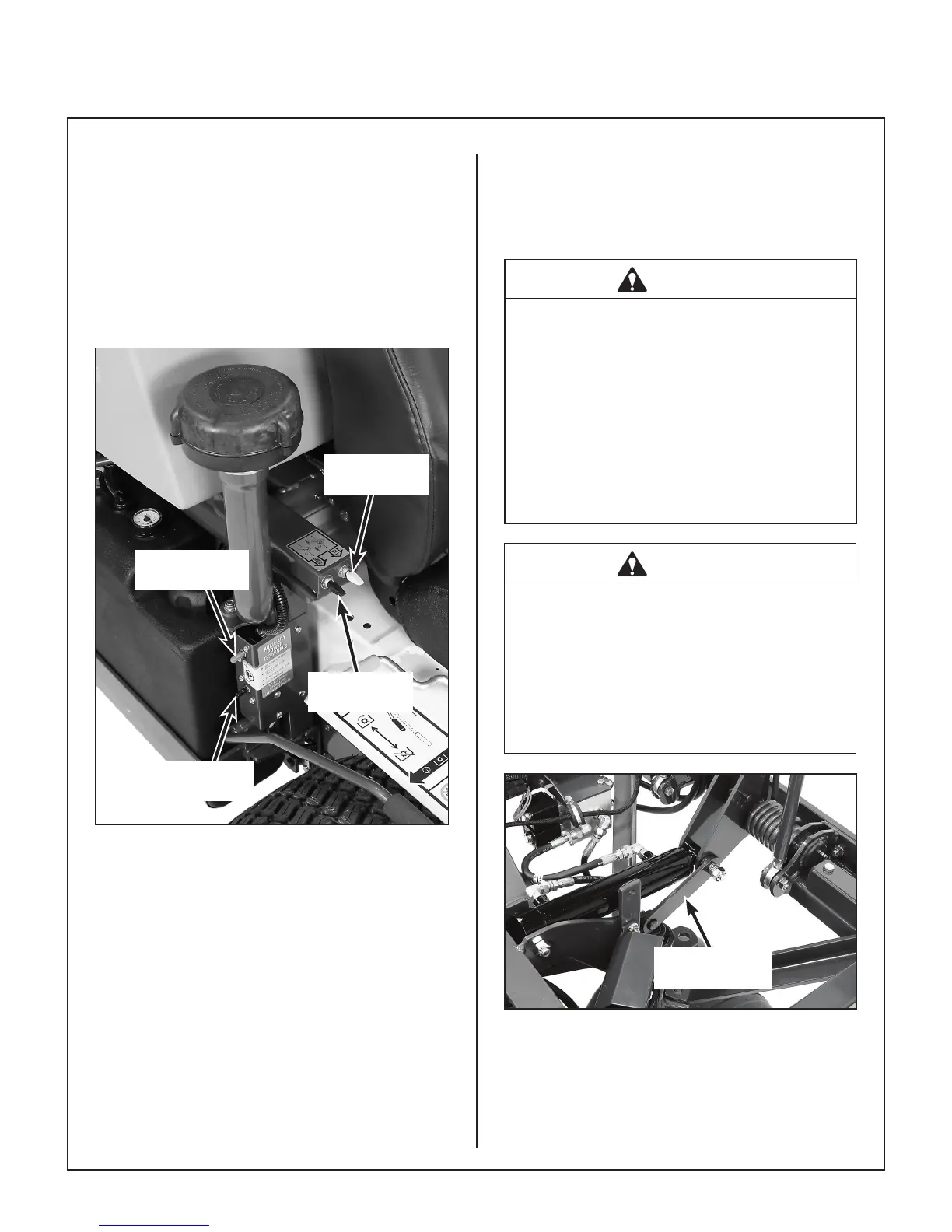

Toggle Switch
(Dump)
Toggle Switch
(Lift)
(+) Auxiliary
Power Terminal
(-) Auxiliary
Power Terminal
Lift/Dump Control Switches and
Auxiliary Power Terminals
Hold the Lift toggle switch UP or DOWN to RAISE
or LOWER the catcher. Hold the Dump toggle
switch UP to DUMP the catcher and DOWN to re-
turn to the normal operating position. The catcher
may be dumped at any raised position (Normal Op-
erating - Intermediate - Fully Raised).
NOTE: If grass tends to hang up in the catcher
after raising the catcher with the Hi-Dump
®
, “jiggle”
the steering levers and make the tractor bounce a
little to unstick the grass and make it slide out of the
catcher.
NOTE: With the Hi-Dump
®
mechanism in the nor-
mal operating position (catcher down), the catcher
can be manually raised. In the case of a dead
battery, use the auxiliary power terminals to charge/
boost the battery to operate the Hi-Dump
®
.
CAUTION
The operator should be in the seat with the
machine in the NEUTRAL-PARK Position
and the parking brake engaged and by-
standers stay clear when the Hi-Dump
®
is
operating. To avoid tipping over, the
machine should be parked on LEVEL
GROUND when raising/dumping the catch-
er with Hi-Dump
®
. Do not attempt to use
the optional dump bag or any other bag
with the Hi-Dump
®
.
WARNING
When the Hi-Dump
®
is in the RAISED posi-
tion for access to the engine and drivetrain,
always ENGAGE the safety lock before ser-
vice or repair work. Remember to DISEN-
GAGE the lock before resuming operation
of the Hi-Dump
®
(to avoid damaging the
lock mechanism).
Safety Lockout
Arm Engaged
Safety Lockout Arm Engaged Position
