Walker DGHS42 - Optional Break-Away Blades

52
Use only genuine Walker
®
replacement parts. Effective Date 08-01-08
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D

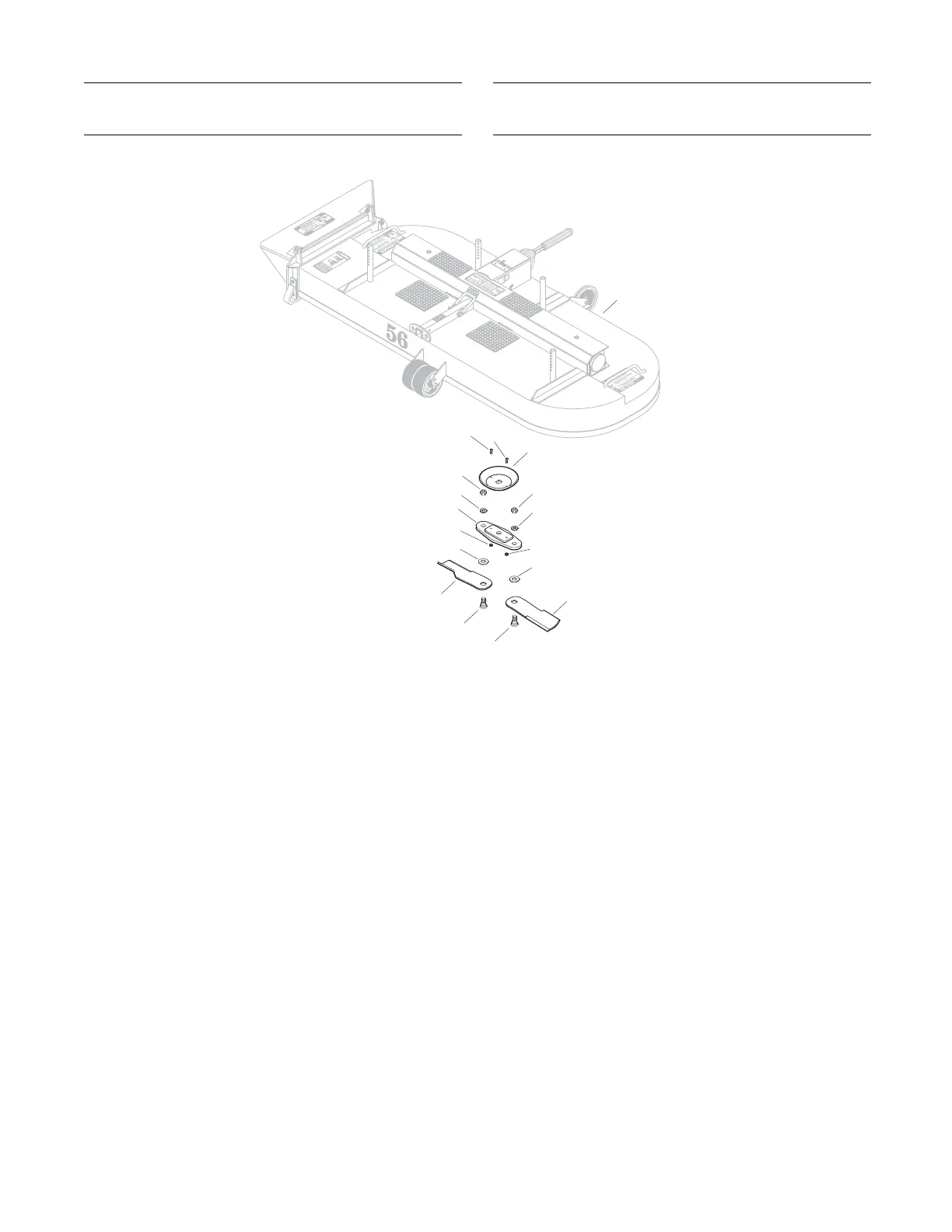

OPTIONAL BREAK-AWAY BLADES
DSD 42" Break-Away Blade Kit (5705-33)
1 5706 Blade Hub & Trash Guard 2
2 5706-27 Blade Hub, 42" 2
3 5705-30 Break Away Blade 4
4 5705-17 Special Bolt (1/2-13 x 1-7/16) 4
DSD 48" Break-Away Blade Kit (7705-8)
1 5706 Blade Hub & Trash Guard 2
2 5706-25 Blade Hub, 48" 2
3 5705-30 Break Away Blade 4
4 5705-17 Special Bolt (1/2-13 x 1-7/16) 4
DSD 56" Break-Away Blade Kit (5705-32)
1 5706 Blade Hub & Trash Guard 3
2 5706-26 Blade Hub, 36, 56 & 74 3
3 5705-30 Break Away Blade 3
4 5705-17 Special Bolt (1/2-13 x 1-7/16) 6
DSD 74" Break-Away Blade Kit (5705-34)
1 5706 Blade Hub & Trash Guard 4
2 5706-26 Blade Hub, 36, 56 & 74 4
3 5705-30 Break Away Blade 4
4 5705-17 Special Bolt (1/2-13 x 1-7/16) 8
Fasteners
F002 10-24 Keps Nut
*
F016 1/2-13 Self-Locking Nut *
F048 1/2 SAE Washer *
F202 10-24 x 5/8 SHC Screw, GR5 SS *
F382 Belleville Washer (.650 x 1.36) *
* Quantities vary
NOTE: Optional blade kit featuring blades mounted on a break-
away hub, for use in mowing applications with lots of
ground and debris contact, to minimize impact and shock
loading.
NOTE: Break-Away blades are designed for use on Side
Discharge decks only.
E
VERY
GREASE
H
RS.
5846
25
1
3
3
4
4
2
F202
F016
F202
F016
F382
F002
F382
F002
Refer to DSD56
DECK ASSEMBLY,
Page 42
F048
F048
