Walker DGHS42 - Blade Usage Chart

53
Effective Date 08-01-08 Use only genuine Walker
®
replacement parts.

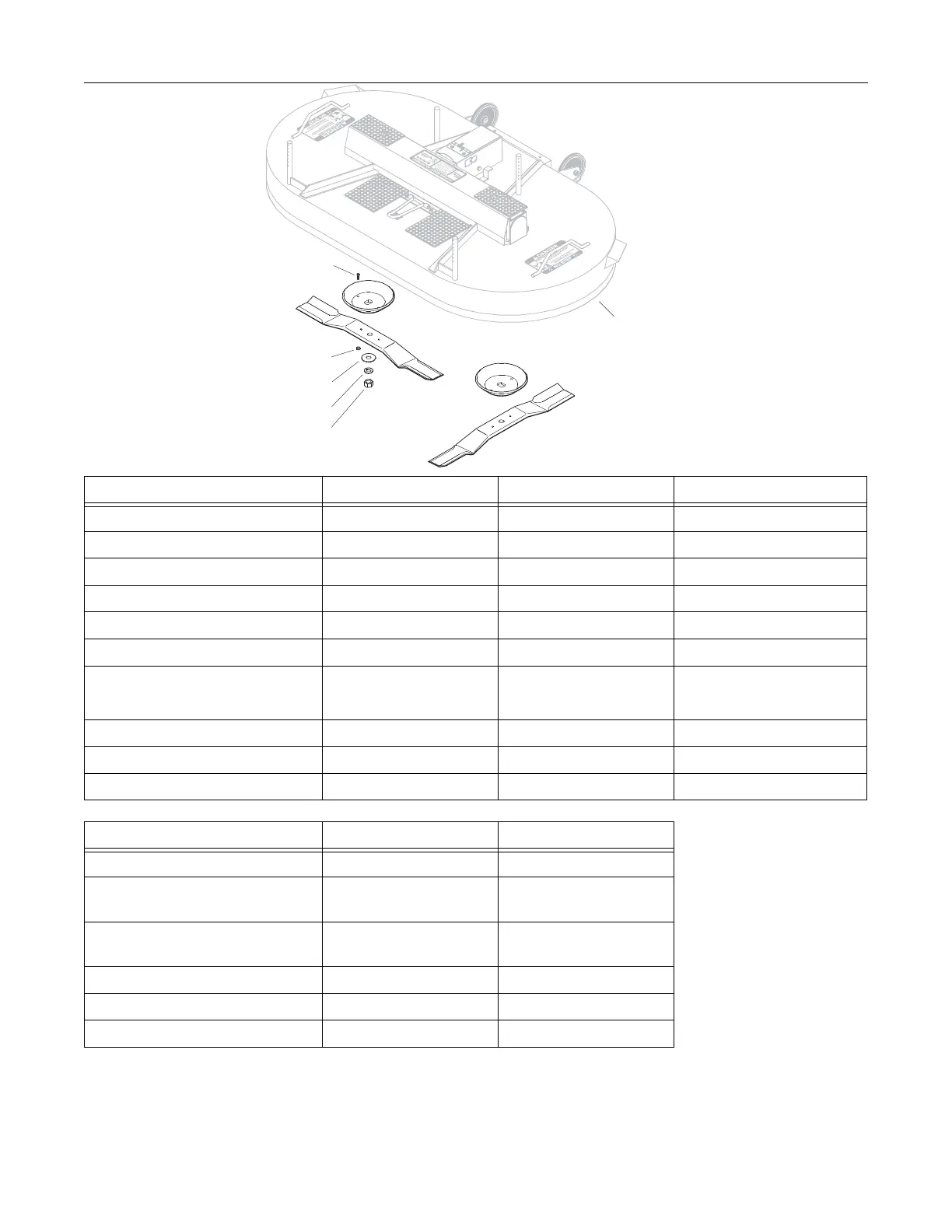

BLADE USAGE CHART
Right hand and left hand orientated with operator on seat.
All blade sets include 5706 (Blade Hub & Trash Guard), F002 & F202 unless otherwise specified.
* Blade set consists of three (3) blades
TWO BLADE DECKS RH BLADE LH BLADE BLADE SET
DGHS36 5705-2 5705-0 5705-6
DSD36 5705-1 5705-1 5705-5
DML36 5705-23 5705-23
DGHS42 5705-4 5705-3 5705-8
DSD42 5705-3 5705-3 5705-7
DML42A 5705-28 5705-28 5705-19
DML42B
5705-11 (Upper Blade)
5705-10 (Lower Blade)
5705-11 (Upper (Blade)
5705-10 (Lower Blade)
5705-12
DGHS48 7705-2 7705-1 7705-3
DSD48 7705-1 7705-1 7705-5
DGHS52 7705-6 7705-7 7705-9
THREE & FOUR BLADE DECKS SINGLE BLADE BLADE SET
DSD52 5705-14 8738-7*
DSD52 MULCHING
UPPER BLADE
5705-15 8738-8*
DSD52 MULCHING
LOWER BLADE
5705-14 8738-7*
DSD56 5705-0 5705-9
DSD62 5705-3 5705-13
DSD74 5705-0 5705-16
F018
F056
F055
F202
Right-Hand Blade
Left-Hand Blade
F002
Refer to DGHS48
