Operating Instructions
27
Lockout
Levers
Transmission
Plunger

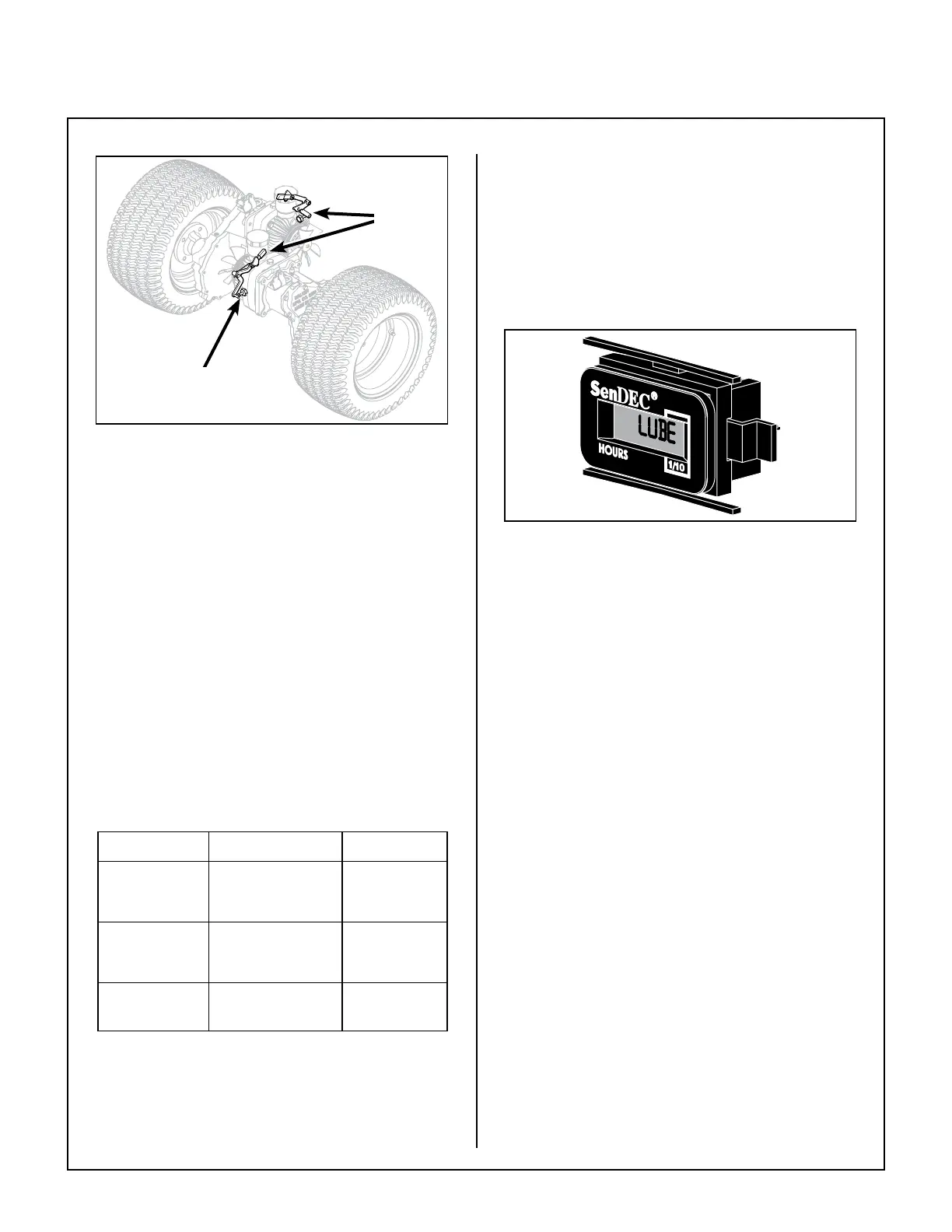

Lockout Lever Location
NOTE: The transmission plunger on the side of the
transmission case (activated by the LOCKOUT LE-
VER) must be completely released during operation
of the mower, otherwise operation of the transmis-
sion will be erratic.
Hourmeter
The hourmeter, which is located on the left front of
the body, displays operating time accumulated
while the ignition switch is in the ON position.
The hourmeter provides maintenance reminders af-
ter certain hours of operation. The hourmeter screen
will start ashing the reminder one hour prior to the
recommended interval and will continue until one
hour after the recommended interval (two hours).
The hourmeter does not have a manual reset
function.
Procedure Interval* Reminder
Oil Change
(Break-In)**
4-6 Hours
C
H
G
OIL
Lubricate
and Check
Levels
24-26 Hours LUBE
Oil Change
49-51 Hours***
C
H
G
OIL
* These intervals reect the actual time that the
reminder will ash (one hour prior to and one
hour after the recommended interval).
** This reminder is only used one time.
*** In normal operating conditions, oil changes in
100-hour intervals are acceptable. Walker and
the engine manufacturers recommend engine
oil changes every 50 hours in extremely dirty or
dusty conditions or for units with less than 100
hours annual use.
NOTE: The blinking hour glass on the display
means that the meter is operating properly.
Hourmeter
Oil Pressure Warning Horn
The oil pressure warning horn indicates that engine
oil pressure is below the safe operating range [be-
low 3 to 5 PSI (21 to 34 kPa)]. This horn will come
on when the ignition is turned ON, but should go off
after the engine is started. If the horn fails to come
on when the ignition switch is turned ON, it could
indicate a faulty horn. If the horn comes on during
engine operation, stop the engine immediately and
correct the source of the problem before further en-
gine operation.
IMPORTANT: Continued operation of the engine
with oil pressure warning horn sounding MAY cause
severe engine damage (if a low oil pressure condi-
tion exists).
Circuit Breaker (7 Amp)
A 7-amp, manual-reset circuit breaker is located be-
low the ignition switch. The button pops up if the
circuit breaker trips. This circuit breaker protects the
circuits to the safety switch relays, time delay mod-
ule, and GHS.
Light Switch (For Optional Lights)
Operates headlights (when installed).
