Walker MC (20 HP - Grass Handling System (Ghs)

Operating Instructions
37
GRASS HANDLING SYSTEM (GHS)
GHS Model Only

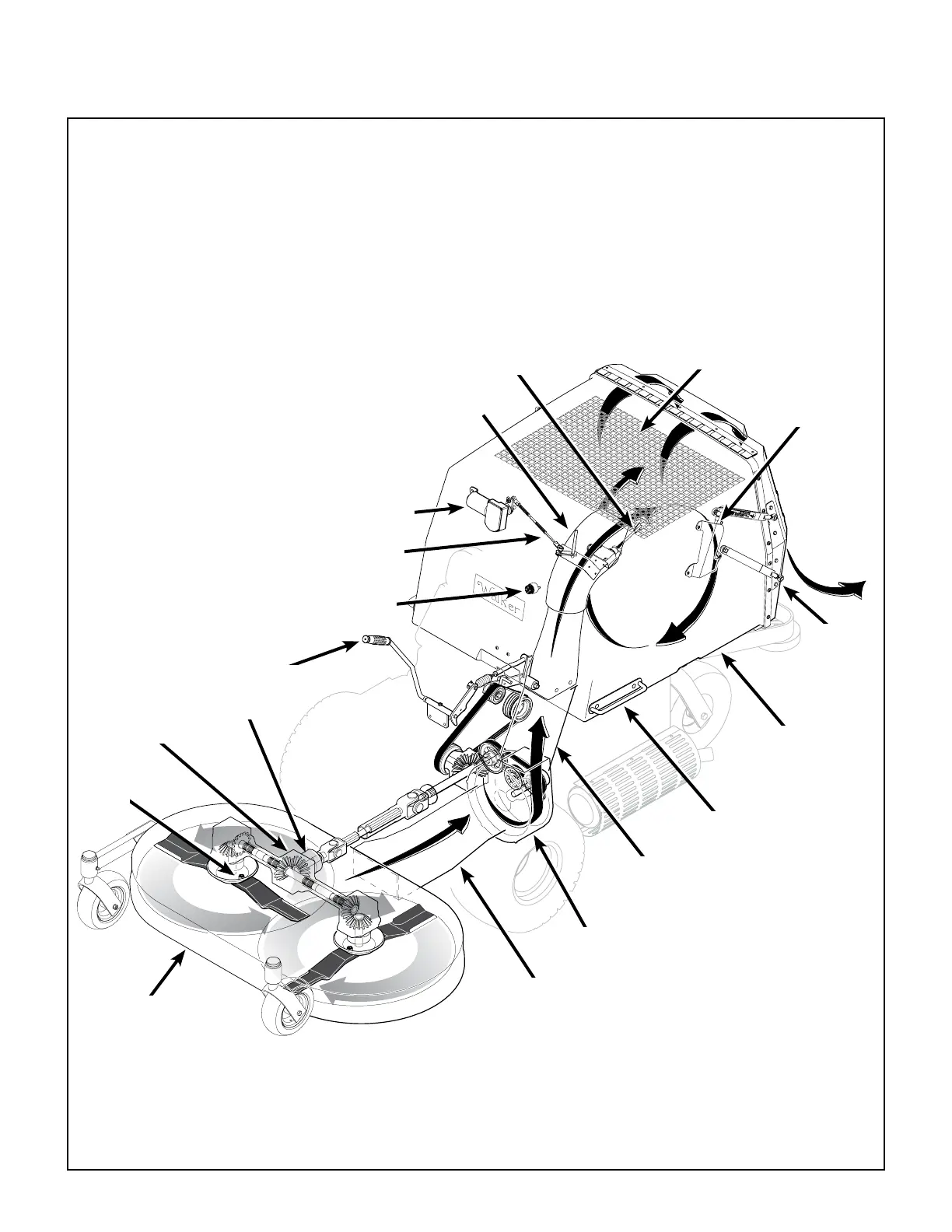

GHS Flow and Components
Catcher
Door
PTO Clutch
Powerl
®
Delivery Spout
Rear Discharge
Mower Deck
Shear Pin
Shear
Bolt
PTO and Blade
Gear Drive
“Full” Signal
Horn
Actuator
Rod
Powerl
®
Drive Motor
Grass-Pak
®
Vane Switch
Exhaust Screen
(Removable)
Grass Catcher
Dump Handle
Blower
Body Chute
Assembly
Deck
Discharge Chute
Catcher
Door Spring
