Walker T25i - Component Identification

Component Identication
6

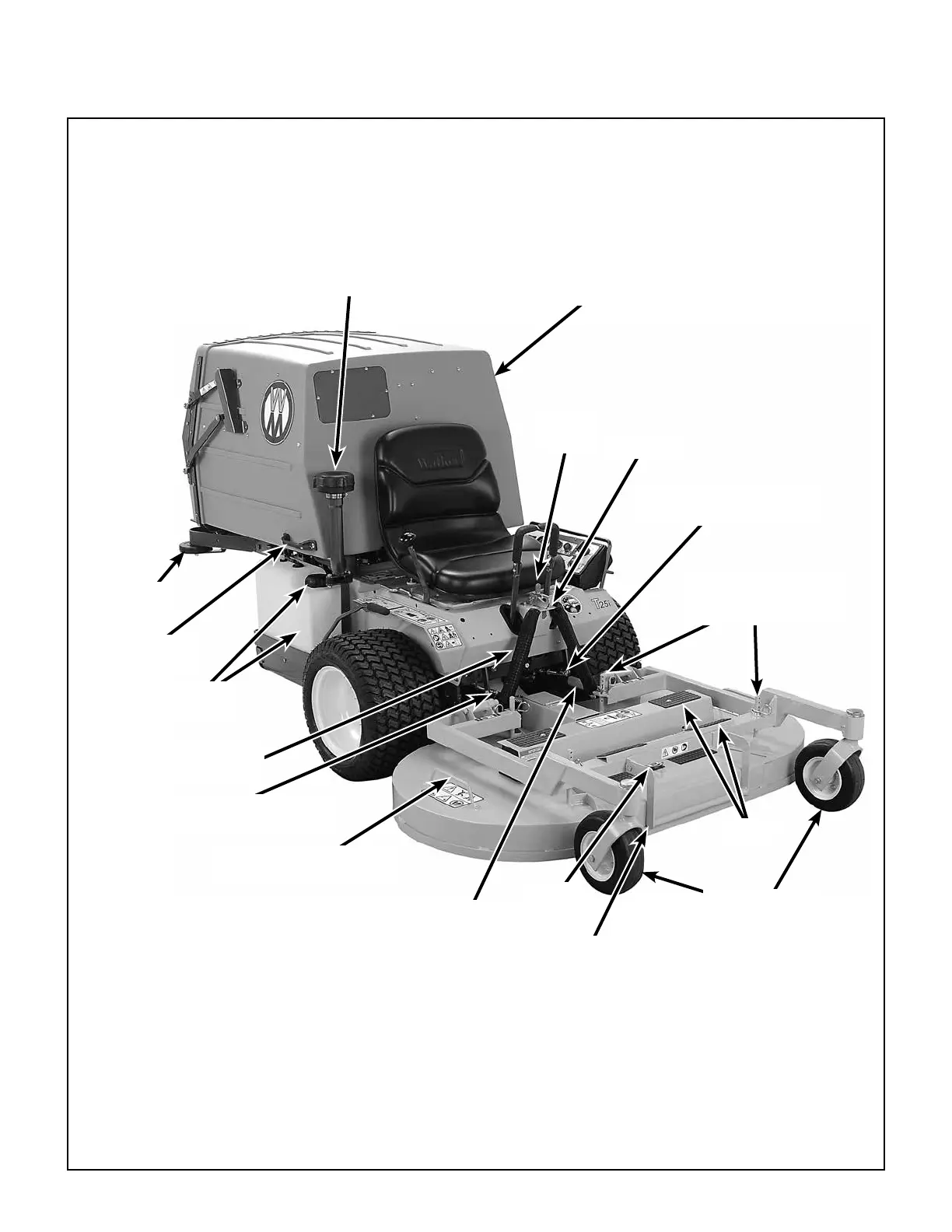

Front View and Right Side View
NOTE: Control Identication
shown in Operating
Instructions section.
Deck
Caster Wheels
Anti-Scuff
Roller
Grass Handling System
10.0 Bushel Catcher
Catcher Lift /
Dump Handle
Deck Support Pins
and Height Adjustment
Hitch Pins
Tilt-Up
Latch
Spring Clip
Transmission Control Rod
Adjustment Nut (LH)
Footrests
Deck Support
Arm (LH)
Tilt-Up
Deck Handle
Tilt-Up
Hook
Transmission Control Rod
Adjustment Nut (RH)
Deck Lift Handle
(Cutting Height Adjustment)
Counterweight Spring
and Protective Cover
Fuel Tank
and Cap
Turbine
Precleaner
