Operating Instructions
42
GRASS HANDLING SYSTEM (GHS)
GHS Model Only

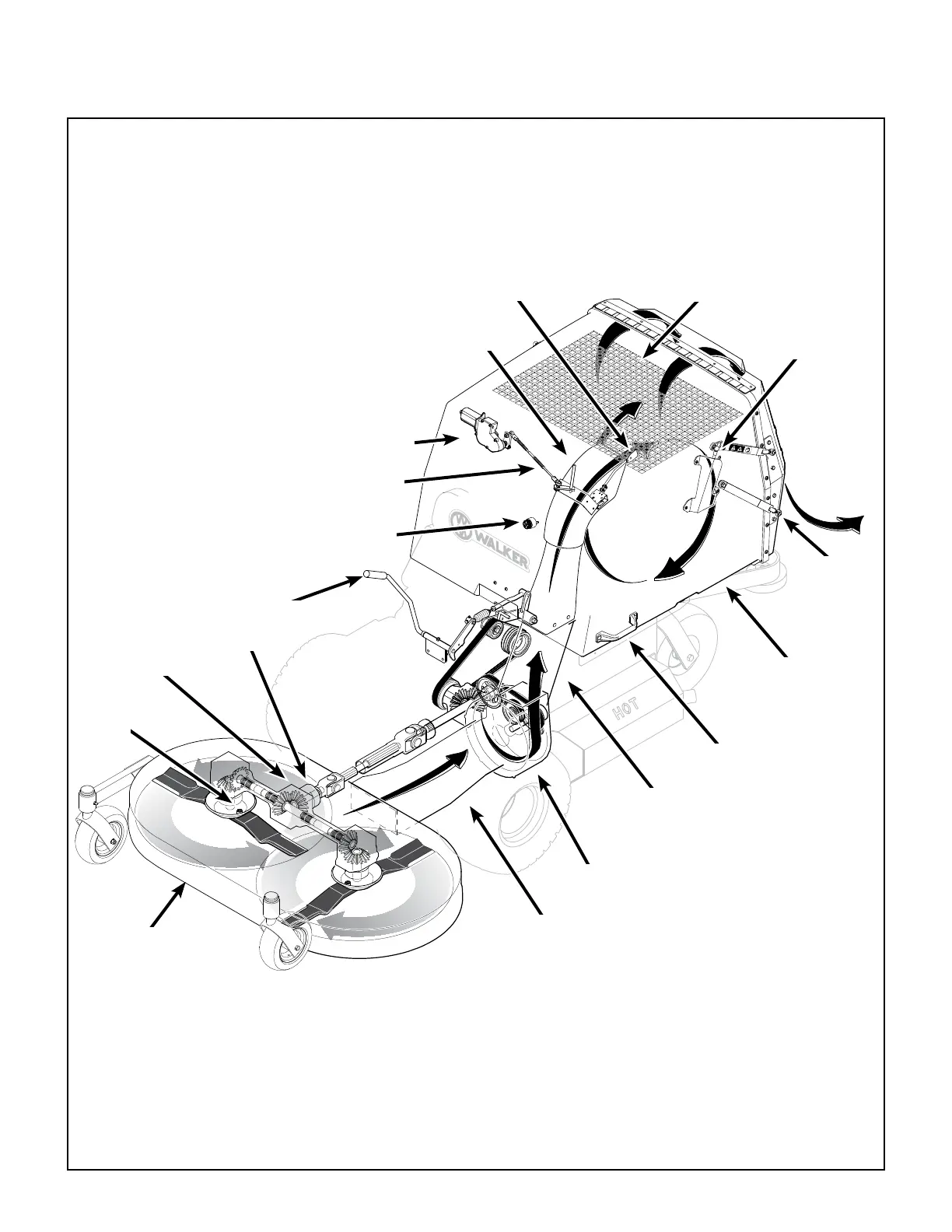

GHS Flow and Components
Catcher
Door
PTO Clutch
Rear Discharge
Mower Deck
Grass Catcher
Dump Handle
Blower
Body
Chute
Assembly
Deck
Discharge Chute
Shear Pin
Shear
Bolt
PTO
and
Blade
Gear Drive
“Full” Signal
Horn
Actuator
Rod
Powerl
®
Drive Motor
Powerl
®
Delivery Spout
Grass-Pak
®
V
ane Switch
Exhaust Screen
(Removable)
Catcher
Door Spring
45
