Walker T25i Operator's Manual

73
Maintenance Instructions REPLACING/REPAIRING
Jackshaft Drive Belt
1. To remove the jackshaft drive belt:
a. Remove the engine PTO drive belt, as
described in previous section.
b. Relax the belt by depressing the spring-
loaded idler arm.
c. Roll the belt off the jackshaft pulley and
remove.

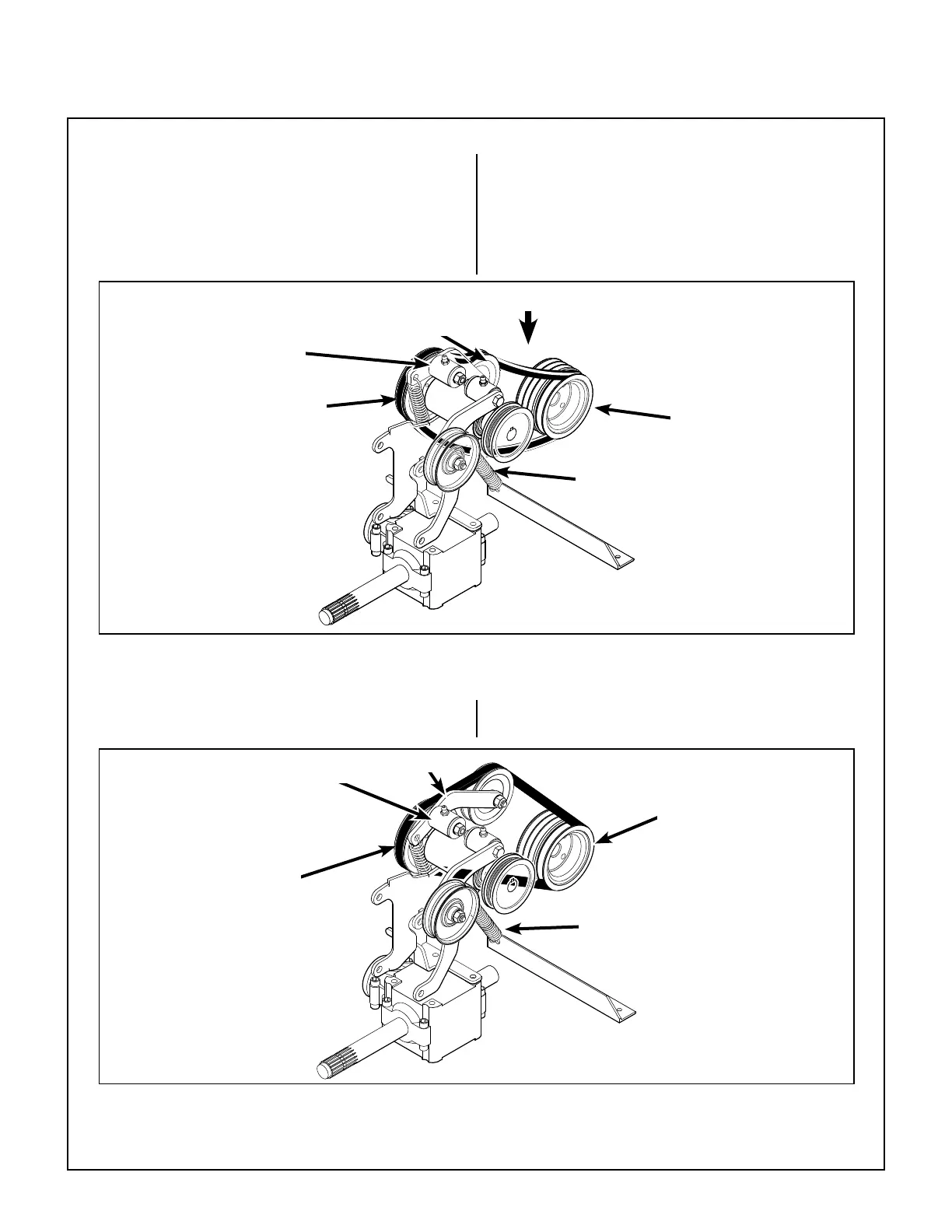

Jackshaft Drive Belt (Disengaged)
2. Reverse the removal procedure to replace the
jackshaft drive belt.
Jackshaft Drive Belt (Engaged)
Jackshaft
Drive Belt
Push Idler Pulley Down to Relax Belt
Idler Pulley
Tension Spring
Engine
Pulley
Jackshaft
Jackshaft
Drive Belt
Tension Spring
Idler Arm
Jackshaft
Engine
Pulley
