Maintenance Instructions CLEANING
60
CLEANING
Engine Air Cleaner System
CAUTION
DO NOT use a pressure washer to clean the
cooling system on an air-cooled engine,
mud may form under the cooling shroud
on the cylinder head and cooling fan.
There are two main components in the engine air
cleaner system: a turbine precleaner and a Donald-
son Radialseal™ air cleaner. Each component is
checked, cleaned and maintained on a different
schedule based on the ltering action required.
Each component is serviced as follows:
Turbine Precleaner
The turbine precleaner is mounted on a remote air
intake tube connected to the Donaldson air cleaner.
A spinning fan driven by the intake airow separates
dust from the air, giving the initial stage of air clean-
ing. Dust particles are exhausted through a single
small vent in the side of the housing. Since no dust
is trapped, the precleaner operates without clean-
ing. The only maintenance required is to check the
operation of the internal fan every 100 hours. Ver-
ify operation:
1. Look into the exhaust vent while shining a light
into the intake.
2. Start the engine and watch the fan begin to spin
as the throttle is advanced.
If the fan is not spinning, service or replace the pre-
cleaner as required.

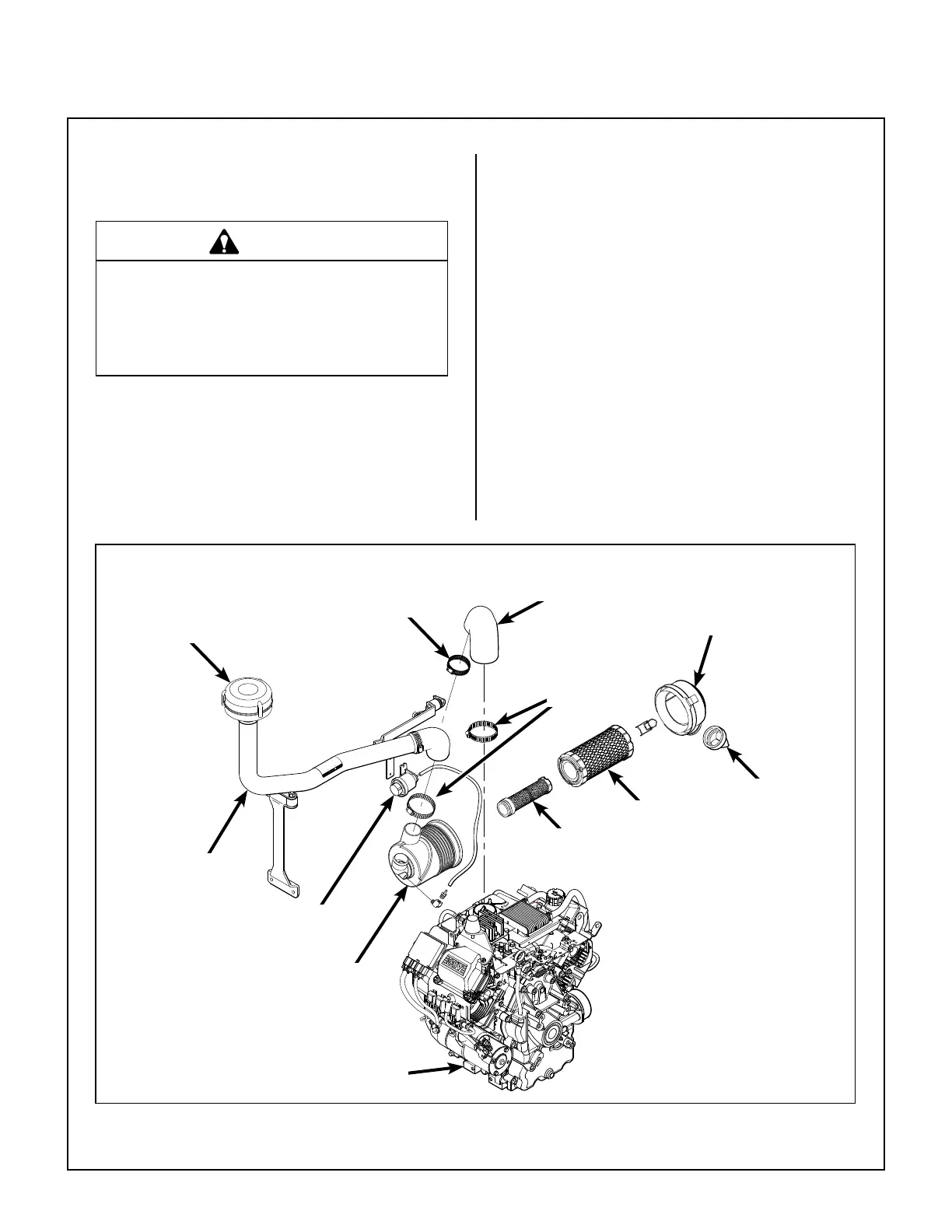

Engine Air Cleaner System Components
Dust Ejection
Valve
Donaldson Air
Cleaner Cover
Engine
Turbine
Precleaner
Precleaner
Tube
Safety
Filter
Primary Filter
Element
Air Filter
Restriction Gauge
Donaldson
Air Cleaner
Hose
Clamp
Air Intake
Hose
Hose
Clamps
To Next Page
