Strut and Caster
assembly
Step 4: Adjust the Chin Bar (D)
Note: Use of the Chin Bar is optional.
The Chin Bar adds stability and rigidity to the front wheel attachment.
It needs to approximately match the width of the back of the Walkin’
Wheels. Use a Phillips head screwdriver to remove the two screws on
the Chin Bar and adjust it so that the width of the Chin Bar is
approximately the same as the width of the back of the wheelchair.
Insert screws to secure in place.

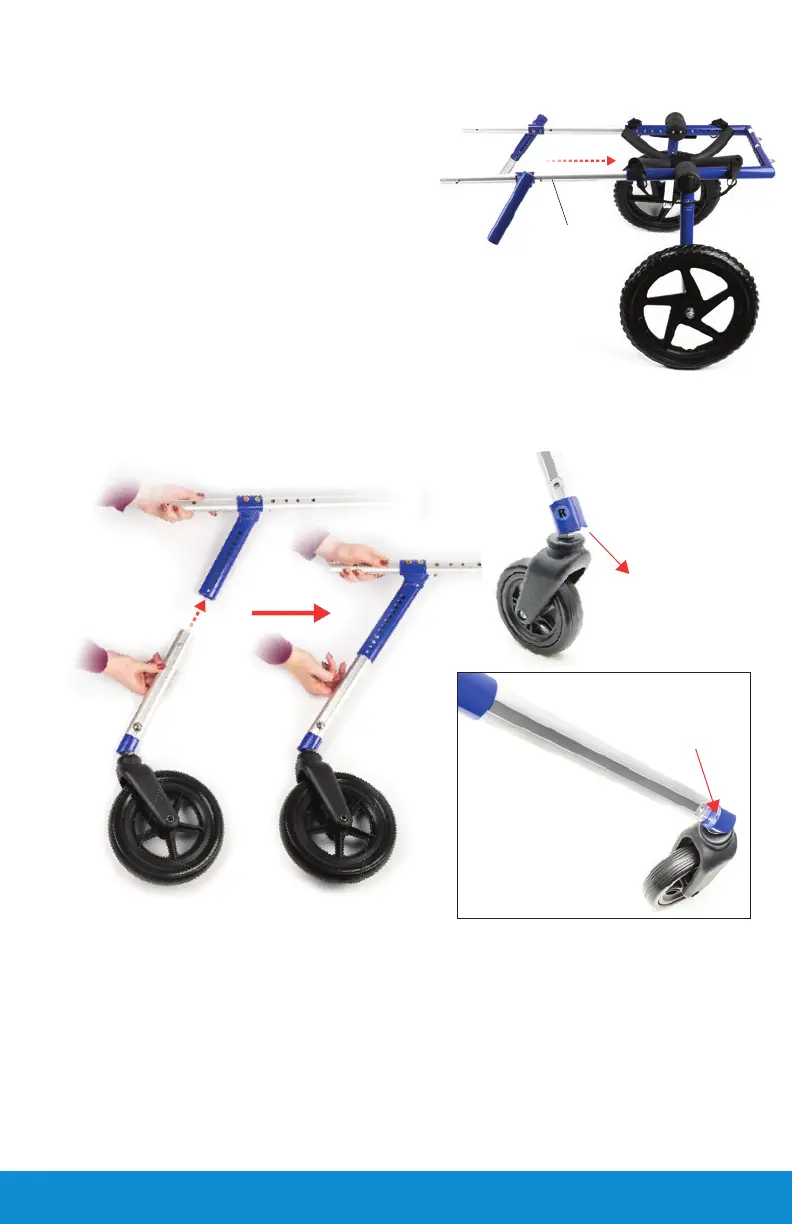

Front extenders with
front legs attached
Insert Strut and Caster assembly into the Leg.
These are marked with “L” and “R”. It is very important
that they are installed on the correct sides.
Insert Strut and Caster assembly into Legs
L or R is also engraved
on the bottom of block
Ledge
IMPORTANT!
Notice the ledge on the
Caster Connector. This
needs to be facing outward
in order for the front wheel
attachment to work
properly.
Step 2:
Step 3:
Remove the existing side extenders from
your Walkin’ Wheels Rear Wheelchair and
insert the Front Extenders with front legs
attached. Be sure the extenders are
attached so the legs are on the outside,
angling forward.
Removing the Side Extenders
To Next Page
