4�2 MACHINE COMPONENTS
The Wallenstein BX series wood chipper is designed for chipping wood in a fast and efcient manner.

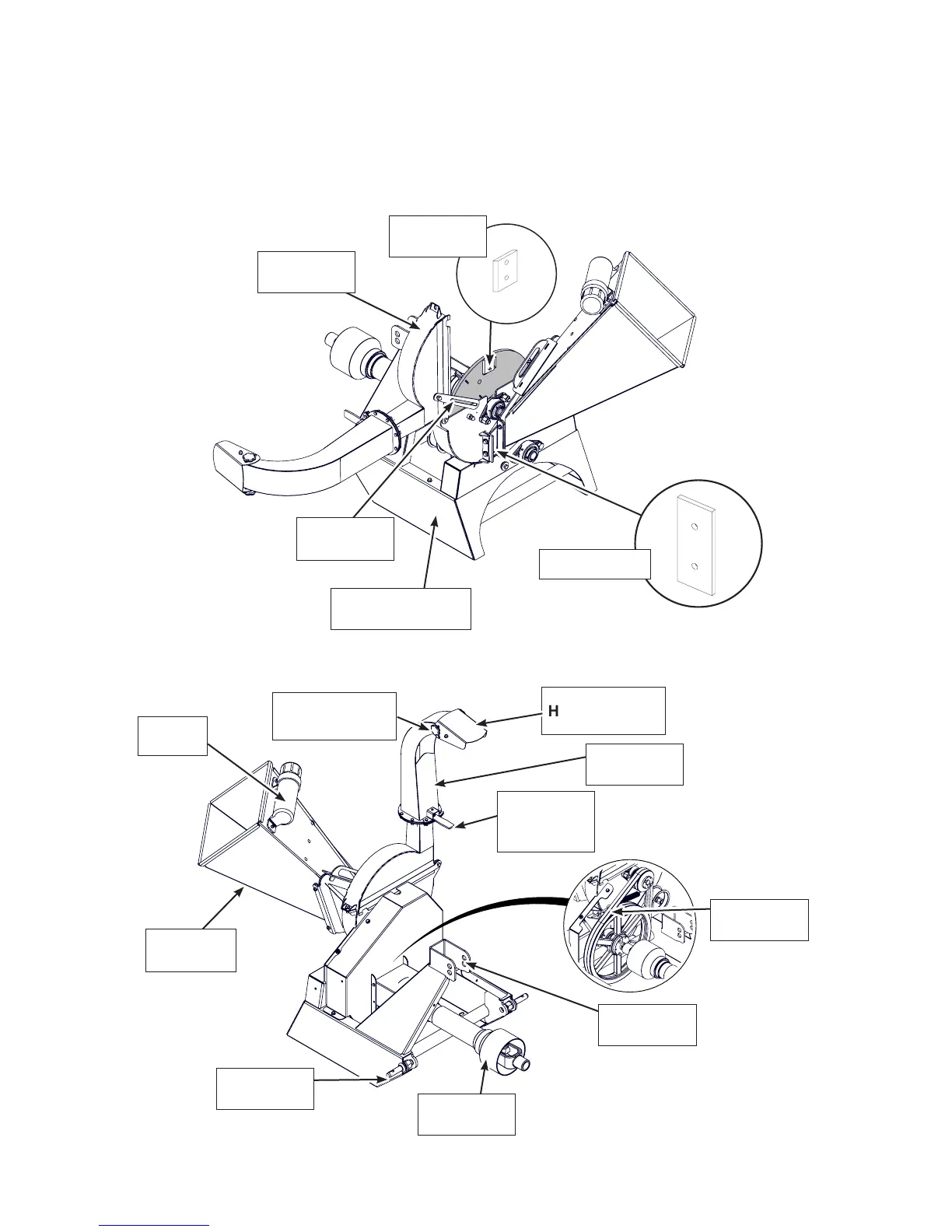

Major components of the BX base model chippers are illustrated here. Please review this section, many of the
component descriptions here are used throughout the manual to explain function and safety.
For a detailed parts breakdown, see your dealer or visit the Wallenstein website to download the Parts Manual.
Models BX32 Series
Upper Rotor
Housing
Hood Deector
Discharge
Chute
Drive Belts
Hood
Latch
Handle
Manual
Tube
Ledger Knife
PTO Shaft
Lower Link
Pins
Top Link
Deector
Adjustor
Rotor Knife
Positive
Stop Plate
Bottom
Rotor Housing
Chipper
Chute
