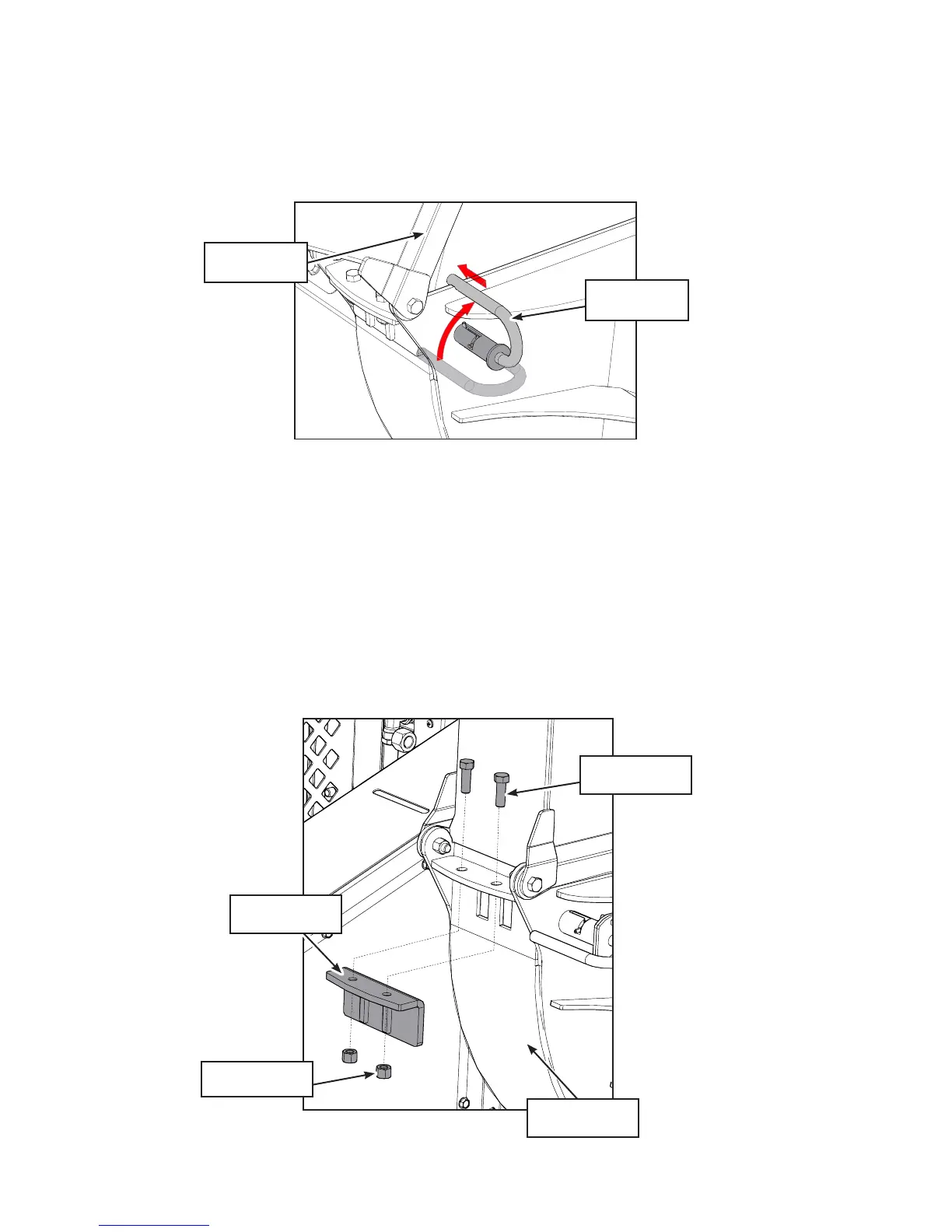

7�2�4 TWIG BREAKER:
All Models except BX32 Series: The Twig Breaker is a breaker tab located on side of the lower rotor housing.
The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces
and turn it into mulch. Inspect the twig breaker for damage such as gouges, a bent, or missing tooth. A
damaged twig breaker should be replaced. If the tooth is showing wear, remove and replace the twig breaker.
1. Ensure the machine is set in Safe Condition (See Section 7.2).
2. Remove the 2 bolts and nuts that hold the twig breaker to the housing, remove the twig breaker.
3. Reverse the steps to install the new twig breaker.
Twig Breaker
Twig Breaker
Bolts
Twig Breaker
Nuts
Lower Rotor
Housing
7�2�3 ROTOR LOCK PIN
All models except BX32S: Rotor Lock Pin works on a pull, twist and release principle and is a simple and
reliable spring pin used to secure the rotor from moving while the upper rotor housing is open. It is designed
to only be able to be engaged when the rotor housing is open, the spring pin cannot be engaged when the
rotor housing is closed. This feature prevents unintended use while in operation.
The rotor lock pin should be used anytime the rotor housing is open to prevent potential injury.
Lock Pin En-
gaged
Rotor Hood
Open
