See Service Record Chart (Section 7.1.6)

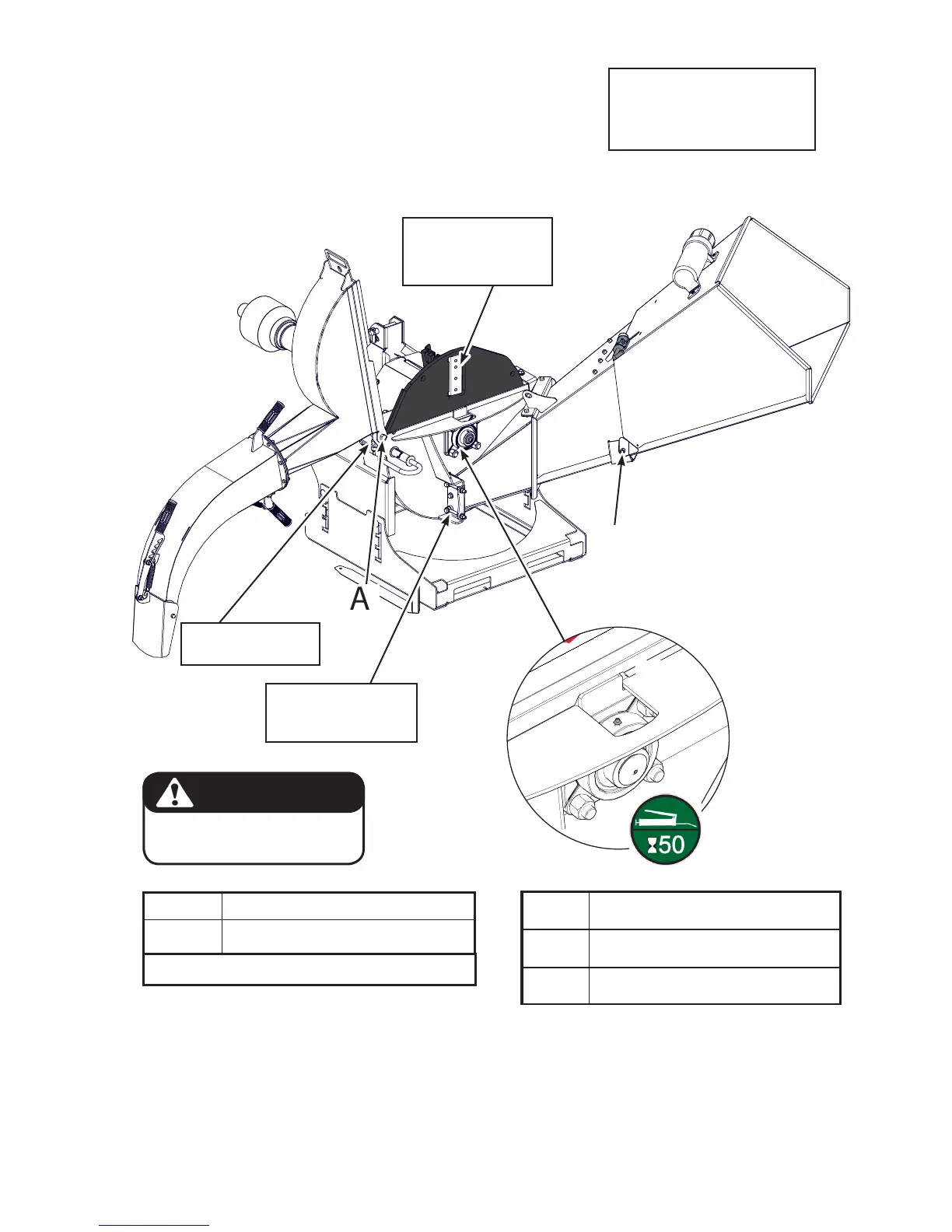

This illustration shows the general location of service points.
B
A
Location Lubricate Hinges & Pivot Points
A
Rotor Cover hinge (2 sides)
b
Feed Hopper Hinges
Location Grease Points - 50 hrs or Annually
1
Rotor Main Shaft Front Roller Flange
On a regular basis check all
nuts, bolts and screws and
ensure they are all properly
secured.
Twig Breaker:
check every 8 hrs.
Ledger blade: check
daily, test sharpness
every 50 hrs
Rotor blades: check
daily, test sharpness
every 50 hrs
Grease with one shot of grease
1
Machine is shown with guard removed
for illustrative purposes only. Do not
operate machine with guard removed.
WARNING
Models BX52, BX72, BX102 Series
