Hydraulic Valve
The control valve extends and retracts the wedge or push
block to split the wood. The lever on the valve has three
positions—Extend, Neutral, and Retract.
00695

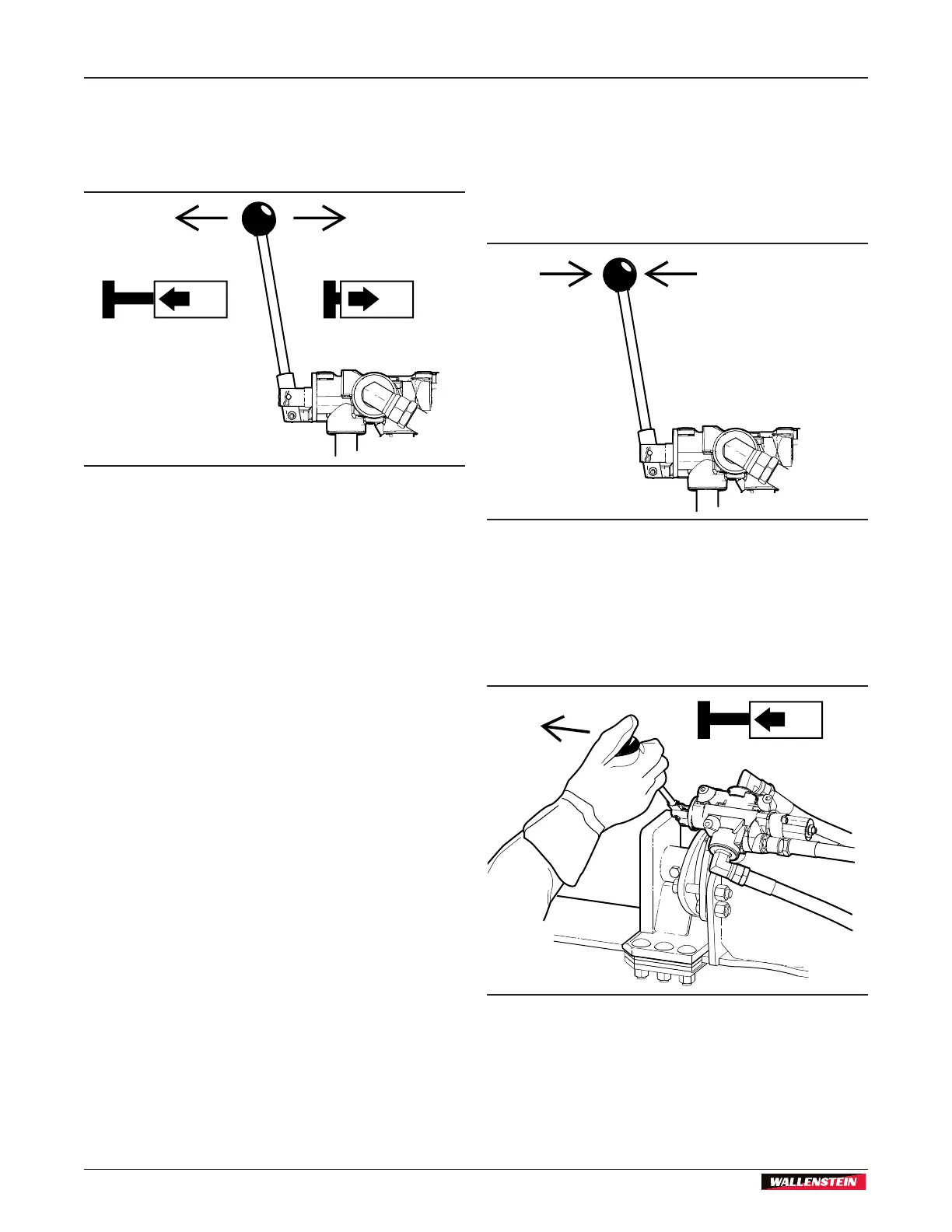

Fig. 11 – Splitter Control Valve
1. Push the lever forward (toward the wood) and hold to
extend the wedge and split the wood.
2. Pull the lever fully back to retract the wedge. When
retracting, a detent holds the lever until the wedge
/ push block fully returns, providing hands-free
operation.
3. Once the wedge is fully retracted, the lever spring-
returns to neutral.
Neutral Position
• Neutral is the center position on the valve.
• The wedge or push block stops moving when the
valve lever is moved to Neutral.
• The valve lever can be moved to Neutral from
Extend or Retract at any time.
00697
Fig. 12 – Center (Neutral) Position
Extend
• Push the lever forward (toward the wood) and hold
to extend the wedge and split the wood.
• Releasing the lever returns it to Neutral.
00696
Fig. 13 – Extend Wedge or Push Block to split Wood
