Walter SURFOX 204 - Equipment controls; Control panel pictograms; Front and back view of the machine

4
2
Amperage
Before connecting this unit, check that the amperage
shown on the rating plate is the same as the power supply.
Operating this unit on an amperage other than specied on
its rating plate may result in personal injury to the user and
damage the unit.
Preventive maintenance
After use, allow the tip to cool and remove the cleaning pad .
Neutralize with SURFOX-N and rinse the cleaning pad and
wand tip with water and dry. Clean dust and dirt deposits
from the exterior of the unit. Keep all airow vent openings
free of any obstructions. Clean the power cord to prevent
deterioration and check for possible damage to cord and
plug.
Note: Damaged cords must be replaced immediately by
qualied personnel only. Refer to Spare Parts List for the
ordering number.
Transportation
Before transporting the machine, make sure the cleaning
solution reservoir and supply line are completely empty
and all connecting lines disconnected. The machine must
be carefully packed in a suitable container and properly
protected. WALTER will not be held responsible for any
damages resulting from leaked cleaning solution or rough
handling.
Storage
If the machine is to be stored for any length of time, the
cleaning solution reservoir and supply line must be emptied,
cleaning pad removed (neutralized, rinsed and left off) and
the tip neutralized, rinsed and dried. Store in a dry
safe place to avoid damage, especially to the electronic
components.
Waste disposal
Dispose of residual waste in compliance with Federal,
Provincial, State and local environmental regulations. Refer
to WALTER Material Safety Data Sheet of the SURFOX
electrolyte cleaning solutions.
Extension cord
When an extension cord is needed, use wire size 14 (AWG)
for up to 50 feet (15 meters) and size 12 (AWG) for 50 to
100 feet (15 to 30 meters).
Safety instructions
Equipment controls
3
Equipment controls

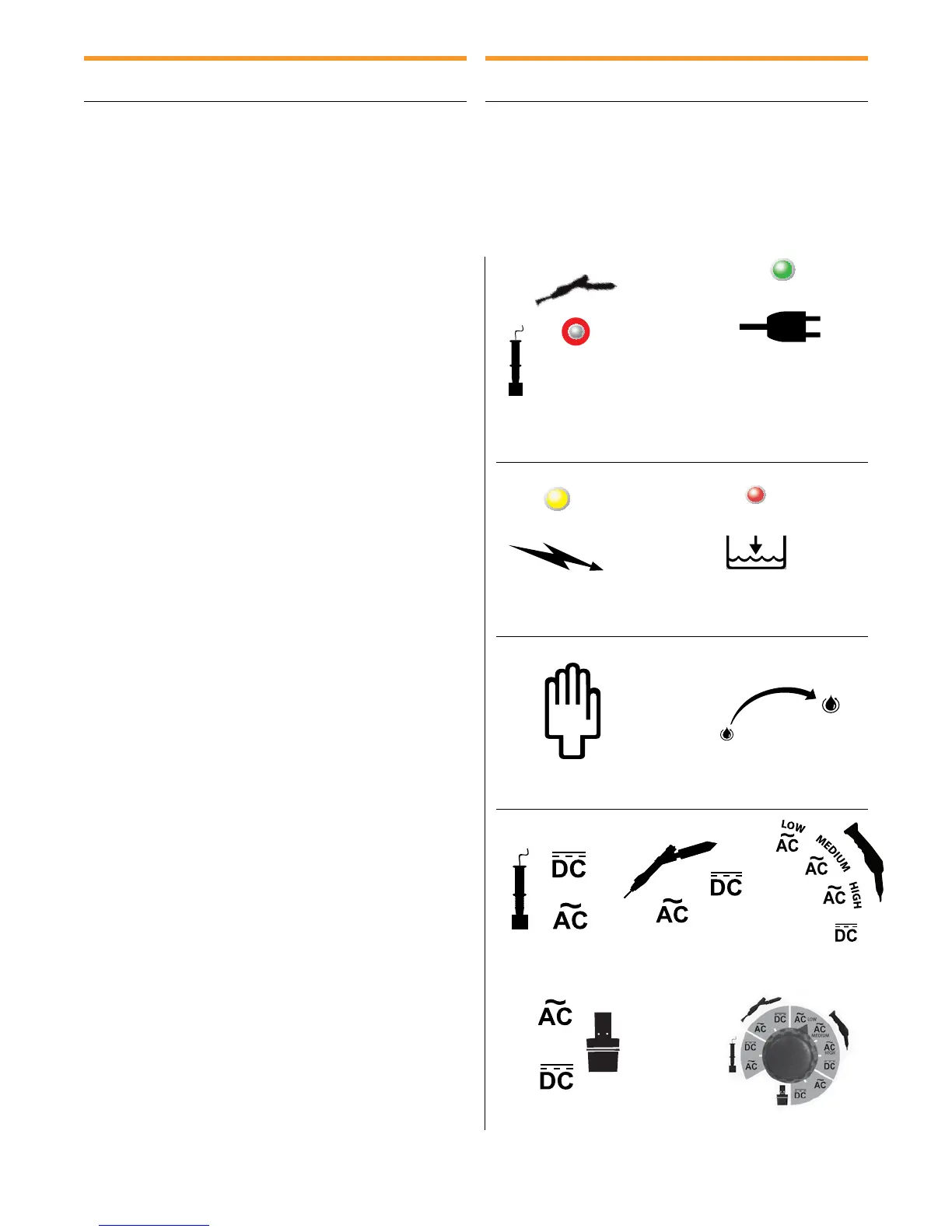

A) Control panel pictograms
Outlet for mini wand
or marking wand
Indicator for unit
power ON
Indicator for wand tip
power ON
Indicator for LOW
solution level
Manual pumping mode Automatic pumping mode
Marking wand selector Mini wand selector
Cleaning or polishing
wand selector
Mode selector
Large insert selector
